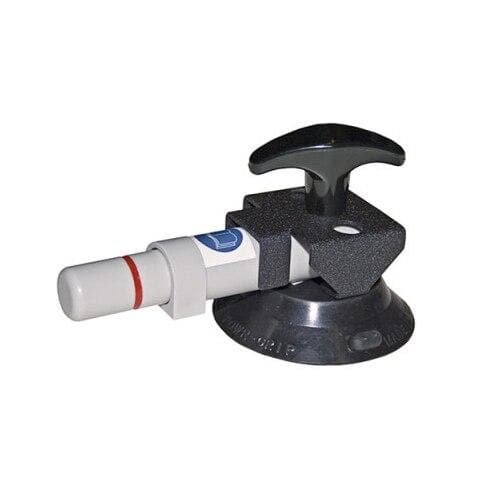

3 Hand Cup With T-Handle for Flat or Curved Surfaces

This handy 3-inch hand cup with a T-handle is a great tool for accurately positioning small flat or curved items. It has an impressive lifting capacity of 15 lbs [7 kg]. When you remove the handle, it can also serve as a mounting cup, thanks to its 1/4 - 20 threaded stud. The cup comes with several useful features. It allows for fast attachment and release, so you can work efficiently. With the handle removed, the 1/4 - 20 threaded stud is exposed, doubling its functionality. A red - line indicator warns you if there's any significant vacuum loss. And it's supplied with a vacuum pad protector to keep it in good condition. The model is TL3TH, SKU is 91154. It has a smooth surface texture and non - porous material. It can handle surfaces from flat to curved, with a minimum radius of 4' [102 mm] for curved loads. The temperature range it can work in is from 32°F [0°C] up to 100°F [38°C]. The pad diameter is 3' [8 cm], pad model is TL3, with standard rubber. Both the handle and plunger are made of industrial - grade plastic.

Using this hand cup is easy. First, make sure the surface of the item you want to lift is smooth and non - porous. Then, press the hand cup firmly onto the surface to create a vacuum. You can use the T - handle to carry the item to the desired position. When you're done, simply release the vacuum to let go of the item. Remember, the red - line indicator is there to help you. If it shows, it means there's a significant vacuum loss, and you may need to re - establish the seal. When using it as a mounting cup, remove the handle to expose the 1/4 - 20 threaded stud. For maintenance, keep the vacuum pad clean. Use the provided vacuum pad protector to prevent damage. Store the hand cup in a place where the temperature is between 32°F [0°C] and 100°F [38°C] to ensure its performance.
