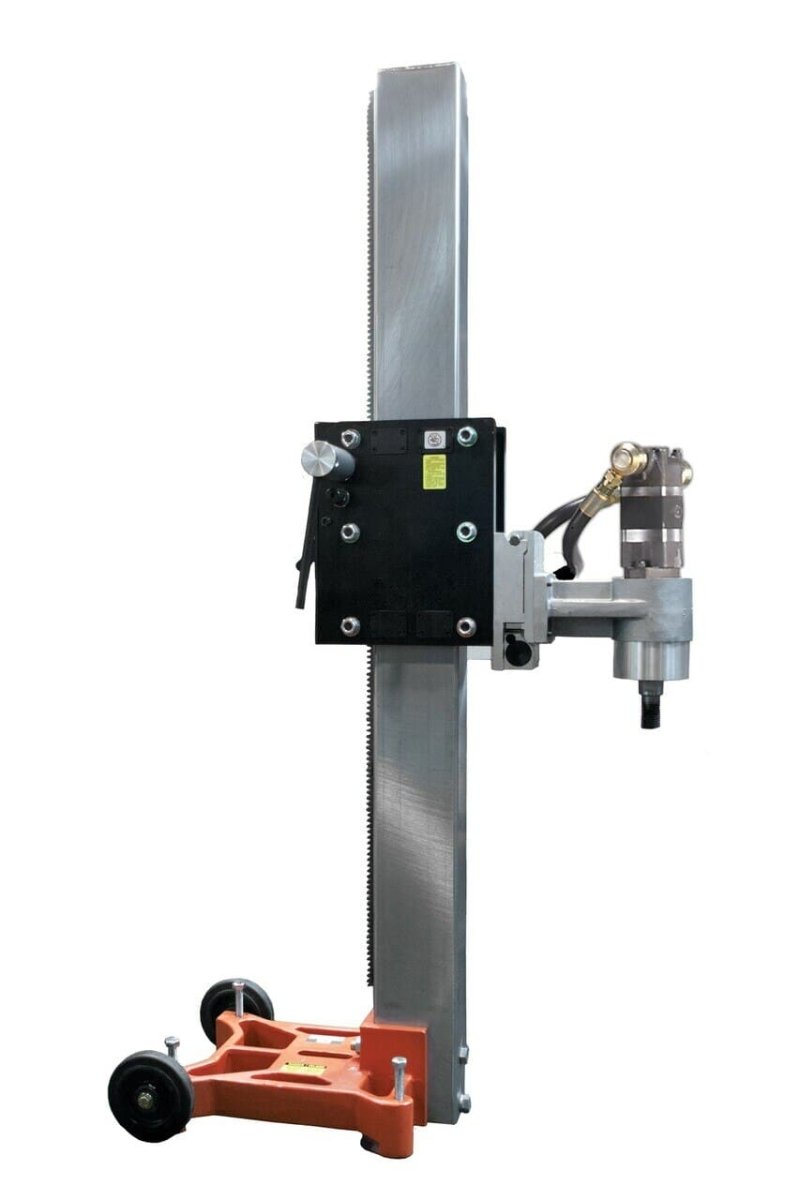

M-6 Large Hydraulic Core Rigs

The M-6 is a large drill stand designed for use with hydraulic motors. The pillow block is sold separately. It features an 18' bit capacity with a standard pillow block. You can also get add-on 4'x6' steel tube spacers for drilling up to 72' diameter holes. It has a heavy-duty 15' x 12' roller carriage, a massive 72' tall, 4' x 6' rectangular mast, and a sturdy cast aluminum base (steel base is an option). There are 4-spoke handles, a wheel kit, and leveling bolts. The stand base comes with 6' rubber wheels. Its large size and heavy-duty build make it a safer choice for drilling with large-diameter core bits. It's sold as a stand only, allowing you to create your own system for specific applications. The 2:1 gear reduction makes lifting larger bits a breeze.

Using the M-6 Large Hydraulic Core Rigs is straightforward. First, make sure you have the necessary pillow block, which is sold separately. If you need to drill larger diameter holes, attach the 4'x6' steel tube spacers. When operating, take advantage of the 2:1 gear reduction to easily lift larger bits. Be careful when moving the rig around using the wheel kit and leveling bolts. The 6' rubber wheels on the stand base make it easier to transport. For maintenance, regularly check the roller carriage and the mast for any signs of wear. Keep the cast aluminum base clean, and if you choose the steel base, watch out for rust. With proper use and maintenance, this rig will serve you well for a long time.
