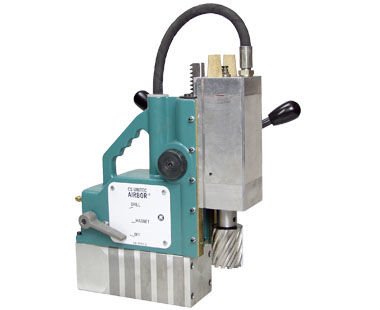

AIRBOR™ AB-4300 Portable Pneumatic Magnetic Drill

SAFE PNEUMATIC POWER FOR HAZARDOUS AREAS - ATEX CERTIFIED FOR EX ZONES

• Safer than electromagnetic drills in dangerous atmospheres and wet spots where electrical work needs special permits
• Completely air-driven for reliable operation
• Pressurized coolant system lubricates the cutter and cuts down the risk of sparks

Specs

Motor Power (Pneumatic)	1.6HP
Air Consumption @ 90 PSI	64 CFM (1/2' NPT Air Connection)
Hole Capacity	2-1/16' dia.
Stroke Length with Cutters	4-7/8'

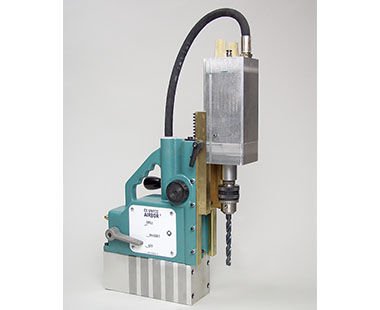

Stroke Length with Twist Drill	1-3/4'
No Load Speed	400 RPM
Magnet Base Size	8-3/4' W x 3-1/2' L
Dimensions	13-1/2' H x 12-1/2' L x 4-3/4' W

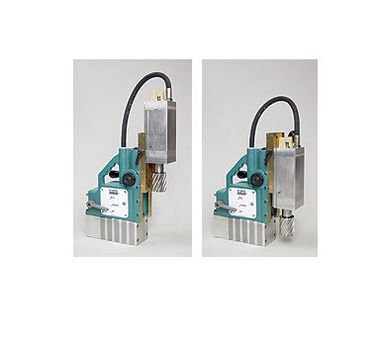

Height - Closed	13-1/2'
Height - Open	17-1/2'
Magnetic Force (1' Plate)	1600 lbs.
Arbor Bore	3/4' Weldon Shank
Weight	38 lbs. (18kg)
Automatic Lubrication	Included

Using the AIRBOR™ AB - 4300 Portable Pneumatic Magnetic Drill is straightforward. First, make sure you're in a suitable environment as it's designed for hazardous areas. Connect it to an air supply using the 1/2' NPT air connection. The magnetic base can be firmly attached to a 1' plate, and it provides a strong magnetic force of 1600 lbs. When drilling, the automatic lubrication system will keep the cutter well - lubricated, reducing the risk of sparks. For different hole sizes, use the appropriate cutters or twist drills. Remember, in wet or hazardous atmospheres where electricity needs special permits, this air - operated drill is a safer choice. For maintenance, regularly check the air consumption at 90 PSI and ensure the coolant system is working properly. Keep the drill clean and store it in a dry place when not in use.
