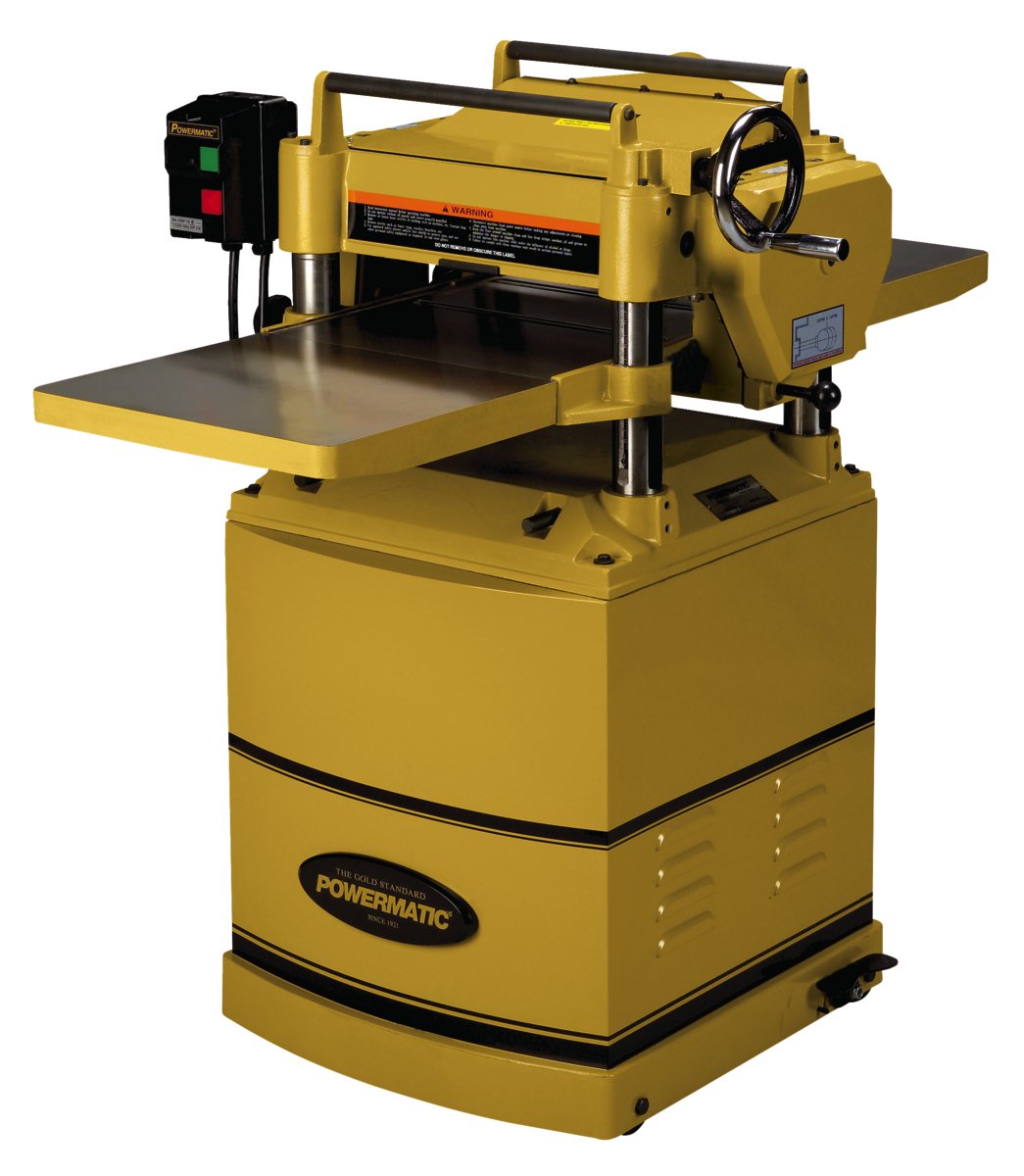

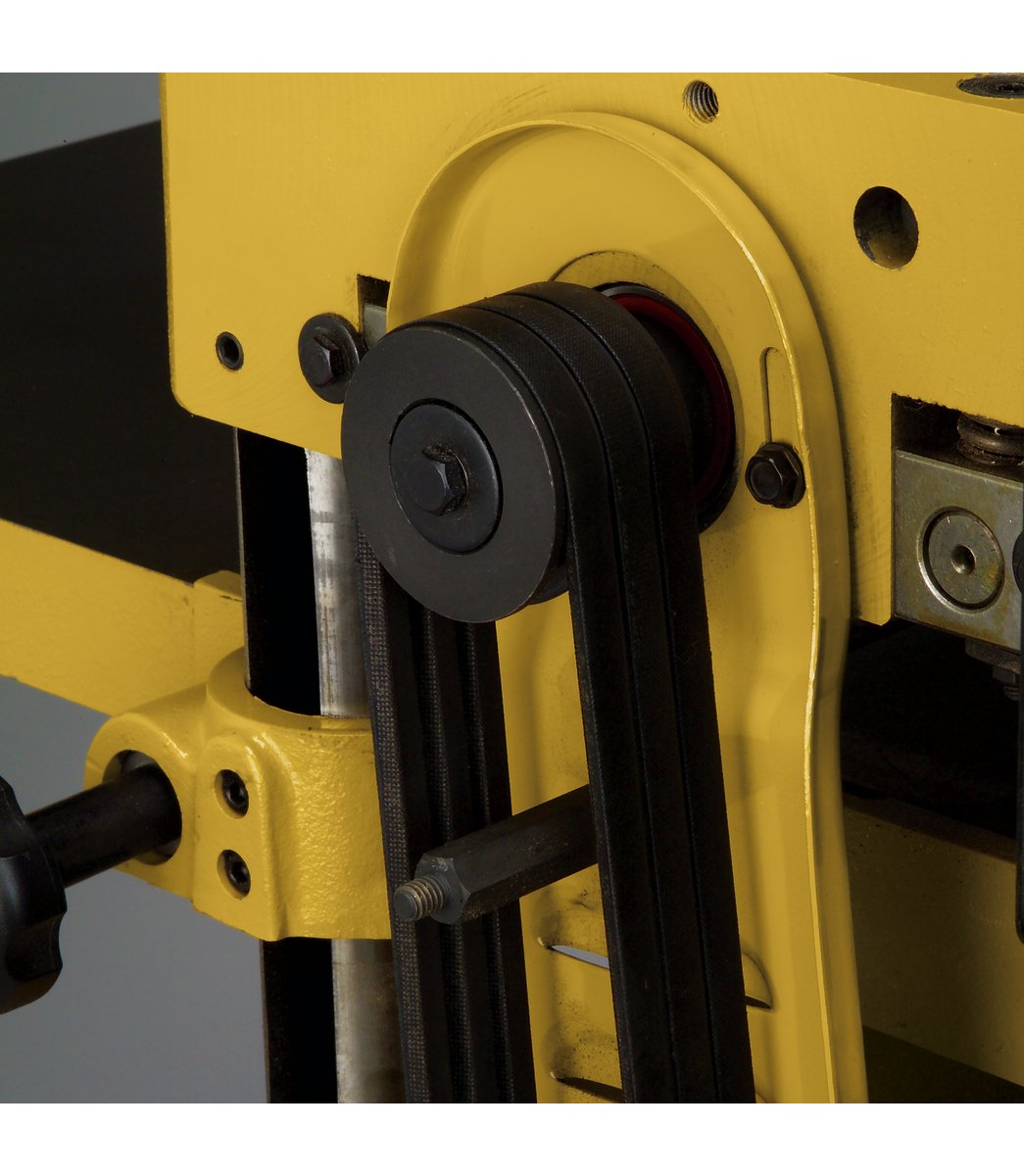

The helical cutterhead of this planer offers smoother cutting and a finer finish compared to traditional knives. With 74 four - sided indexable carbide knife inserts, you don't need to make adjustments after installation. Three V - belts transfer maximum power from the 3HP motor to the cutterhead. The precision ground cast iron table and two large extension wings provide solid support for your workpiece. The 4 - inch dust port angles the collection hose away from the work area, ensuring efficient chip and dust collection. Stock return rollers on top of the machine speed up repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for a 1/8 - inch maximum depth of cut and trouble - free operation. A 2 - speed gearbox comes with an automatic chain tensioner. The one - piece welded steel stand has built - in lockable casters for easy movement around the shop. Key features include an angled dust chute, a large cast iron handwheel for quick table positioning, maximum workpiece support, mobility in the shop, and a helical cutterhead for smoother and quieter cutting.

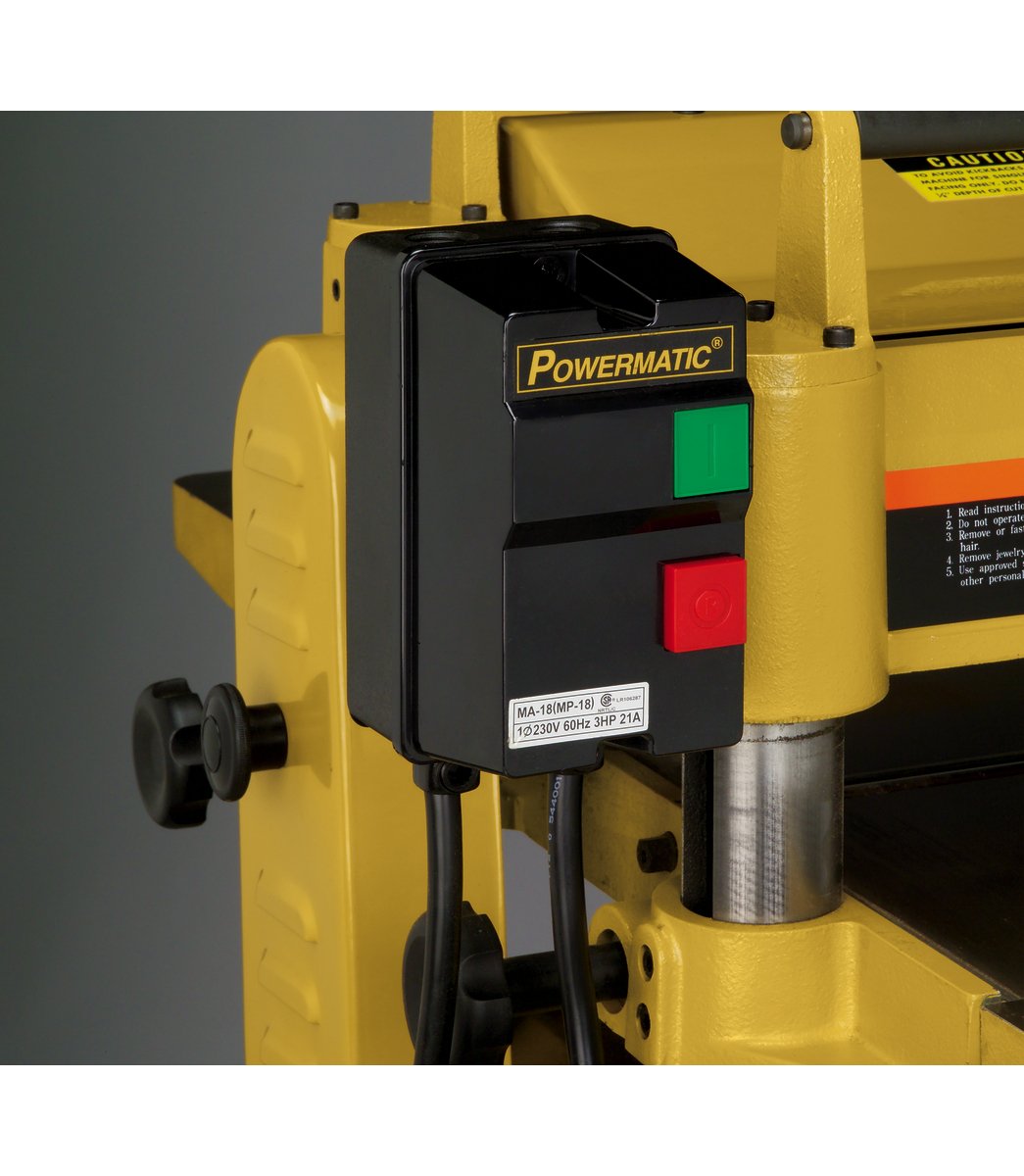

Using this planer is easy. First, make sure the machine is plugged into a 230V power source with the appropriate circuit size of 30 amps. Adjust the table to the desired height using the large cast iron handwheel. Place your workpiece on the table, ensuring it has proper support from the cast iron table and extensions. Start the machine and let it reach the normal operating speed. Feed your workpiece through the infeed roller at a steady pace. Remember, the maximum full - width depth of cut is 1/8 inch, so don't try to take too much off at once. For repetitive cuts, use the stock return rollers on top of the machine to speed up the process. When it comes to maintenance, regularly check the three V - belts for wear and tension. Keep the dust collection system clean to ensure efficient operation. The helical cutterhead with carbide knife inserts doesn't need frequent adjustment, but still, inspect it occasionally. And don't forget about the 2 - speed gearbox's automatic chain tensioner, make sure it's working properly. Also, be aware that this product may cause cancer and reproductive harm as stated by Prop 65, so take necessary safety precautions.
