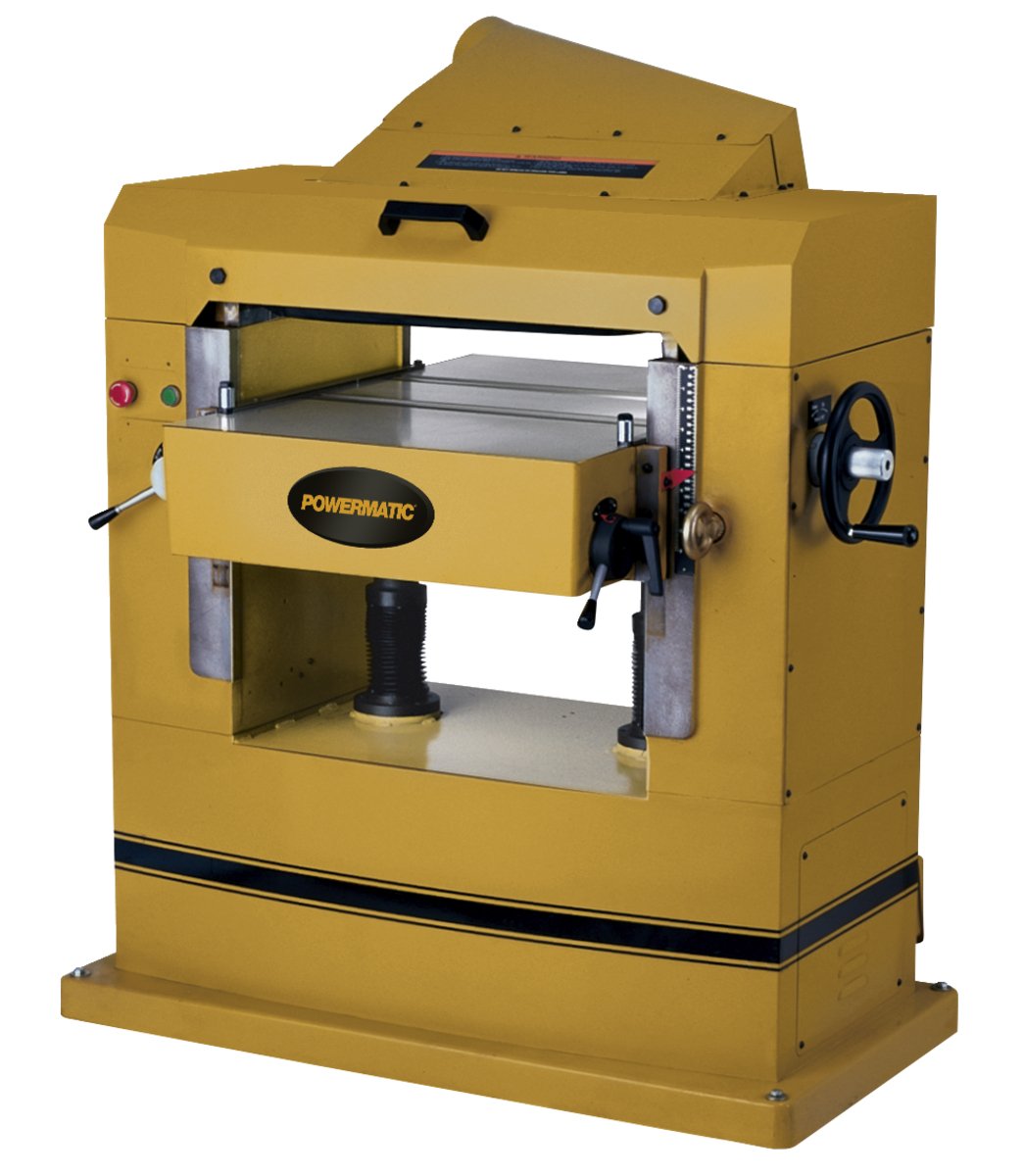

This 1,300 - pound heavy - duty cast - iron planer offers rock - solid rigidity and precise planing for years. Its hinged top provides easy access to rollers and knives. The standard 5 - foot dust port on the hood allows for simple connection to any dust collection system.

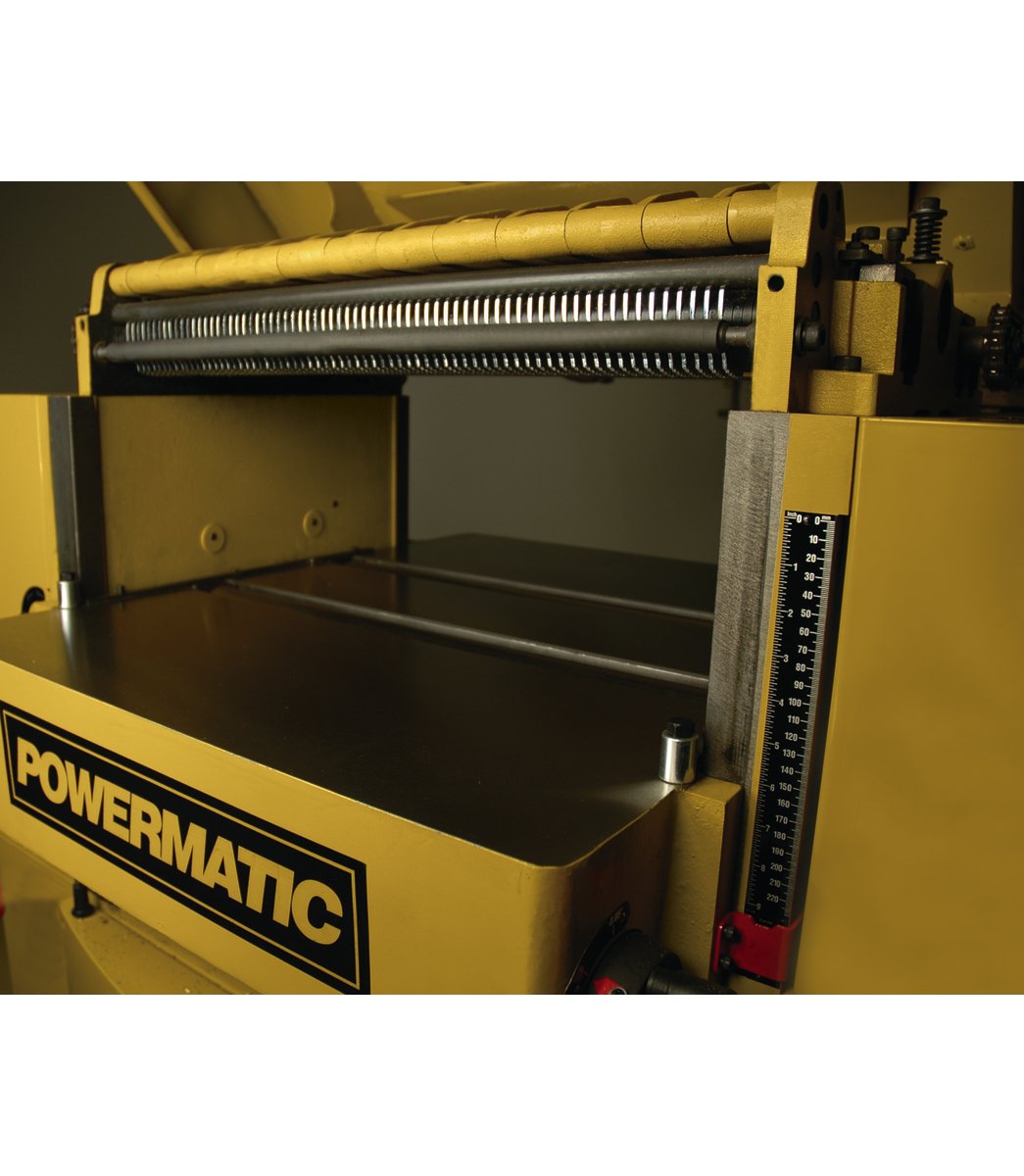

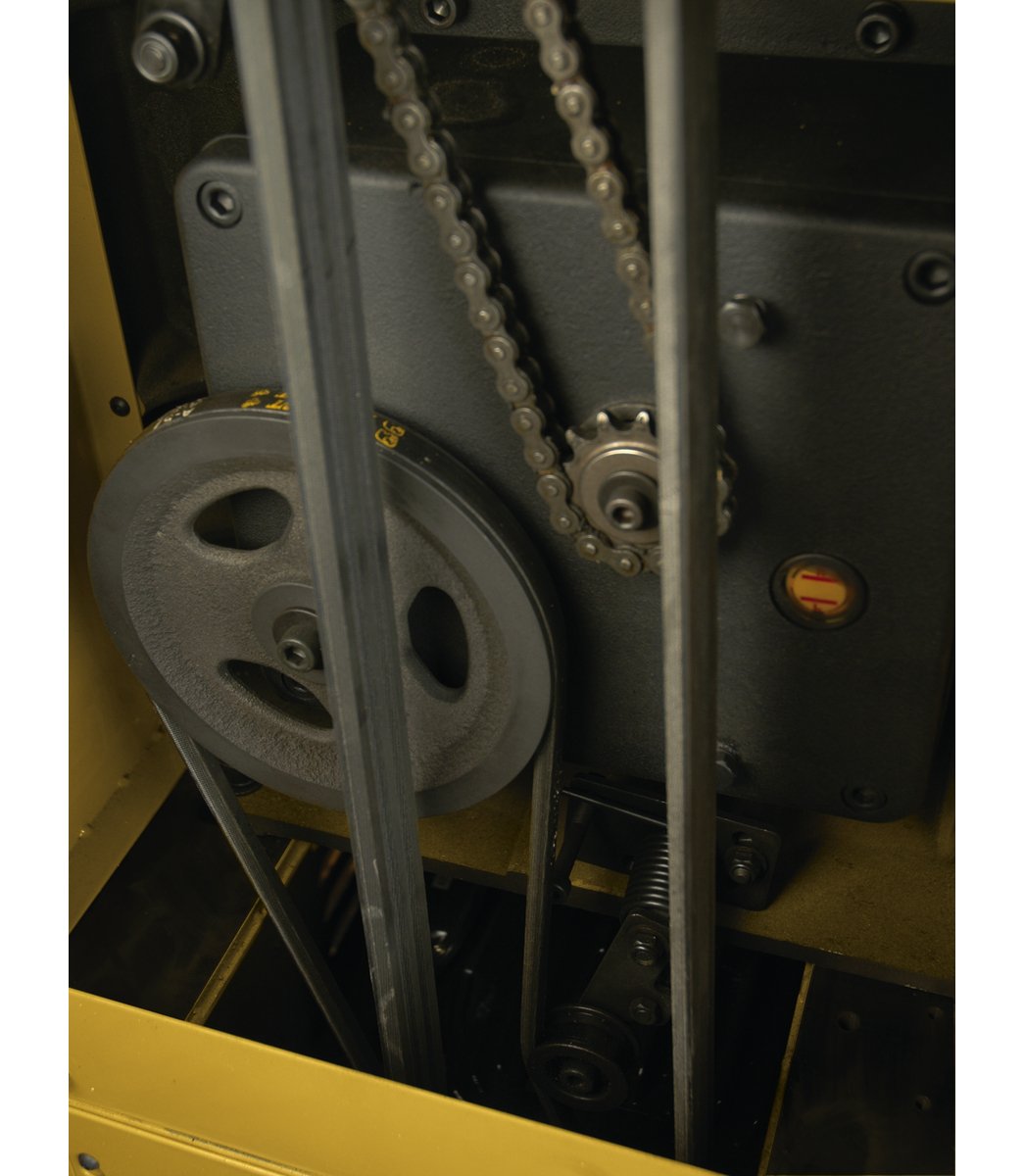

The cutterhead, equipped with four high - speed steel knives, rotates at 4,800 rpm, delivering 19,200 cuts per minute. Anti - kickback fingers and a pressure bar near the cutterhead ensure an excellent finish. Well - designed infeed and outfeed rollers with roller bearings offer long - lasting performance. The sectional infeed and chip breaker are designed for planing multiple boards simultaneously. The adjustable bed roller is great for both rough and finish planing. The solid steel outfeed roller, with small serrations, provides a smooth finish and positive feeding. The two - speed gearbox can be quickly changed at the front when switching between rough and finish work. You can easily raise the massive ribbed cast - iron, ground - finished table by 1/16 with each turn of the hand wheel. This planer, powered by a 7 - 1/2 horsepower single - phase motor, is ideal for small to medium shops with continuous planing needs.
Features
- Two feed speeds (20/30 fpm) for rough and fine finish work
- Adjustable bed rollers for smooth feeding of workpieces
- All - cast - iron construction with a heavy cast - iron table on two large lead screws
- Cast - iron build for durability
- Dust chute with a 5 - foot port for efficient dust collection
- Roller - bearing - mounted feed rollers for smooth operation and long life

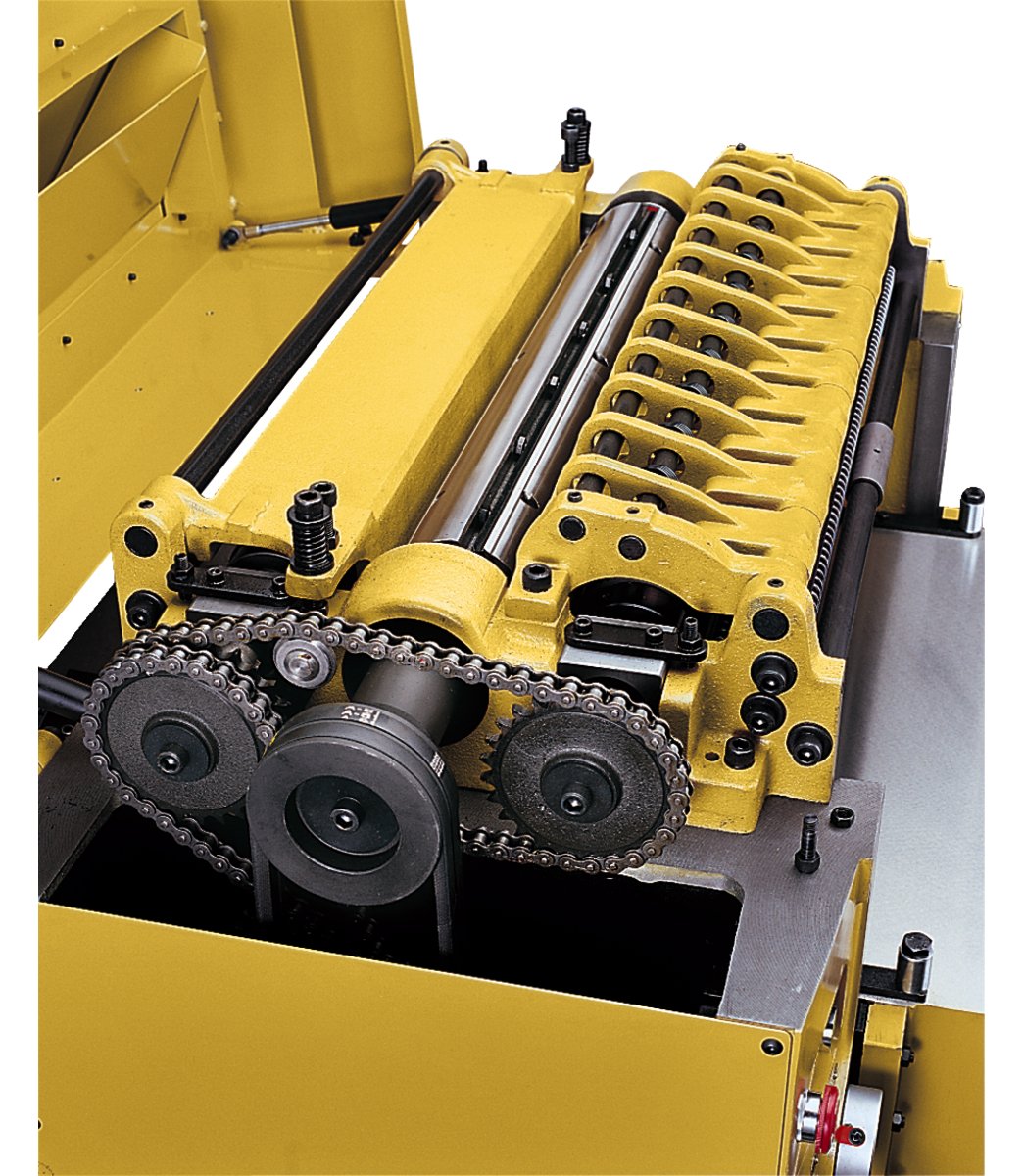

- Segmented infeed roller with sectional chip breaker for planing different - height stock
- Straight - knife cutterhead with 4 high - speed steel knives for a clean cut
Specifications
More Information| Stock Number | 1791261 |
|---|
| Bed Rollers Adjustable from Front | 2 |
|---|
| Column Diameter (In.) | 2 - 1/2 |
|---|
| Cuts Per Minute | 19,200 |
|---|
| Cutterhead Diameter (In.) | 3 - 1/4 |
|---|
| Cutterhead Speed (RPM) | 4800.0000 |
|---|
| Dust Collection Minimum CFM Required (CFM) | 900 |
|---|
| Dust Port Outside Diameter (In.) | 5 |
|---|
| Feed Rate (FPM) | 20/30 |
|---|
| Infeed Roller Diameter (In.) | 3 |
|---|
| Maximum Depth of Cut (In.) | 3/16 |
|---|
| Maximum Full Width Depth of Cut (In.) | 3/16 |
|---|
| Maximum Planing Thickness (In.) | 9 - 1/4 |
|---|
| Maximum Planing Width (In.) | 22 |
|---|
| Minimum Planing Length (In.) | 10 |
|---|
| Motor Phase | 1 |
|---|
| Motor Power (HP) | 7 - 1/2 |
|---|
| Motor Voltage (V.) | 230 |
|---|
| Prewired Voltage (V.) | 230 |
|---|
| Prop 65 | Cancer and Reproductive Harm |
|---|
| Style (Type) | Floor |
|---|
| Table Size (L x W) (In.) | 32 - 1/2 x 24 |
|---|
| Type of Cutterhead | Straight Knife |
|---|
Using the 7.5 - horsepower single - phase 230V floor planer model 201 is easy. First, make sure the planer is connected to a 230 - volt power source. You can adjust the feed speed between 20 and 30 fpm according to whether you're doing rough or finish work. To access the rollers and knives, simply open the hinged top. When planing, place your boards on the table. The adjustable bed roller helps you get the right thickness for both rough and finish planing. The outfeed roller with small serrations will give your boards a smooth finish. Remember, the minimum planing length is 10 inches and the maximum width is 22 inches. Also, connect the dust port to a dust collection system with at least 900 CFM to keep your workspace clean. For maintenance, regularly check the roller bearings on the feed rollers to ensure smooth operation. Keep the knives sharp for a clean cut. And when you're done using the planer, turn it off and unplug it. Be aware that this product may cause cancer and reproductive harm as indicated by Prop 65.
