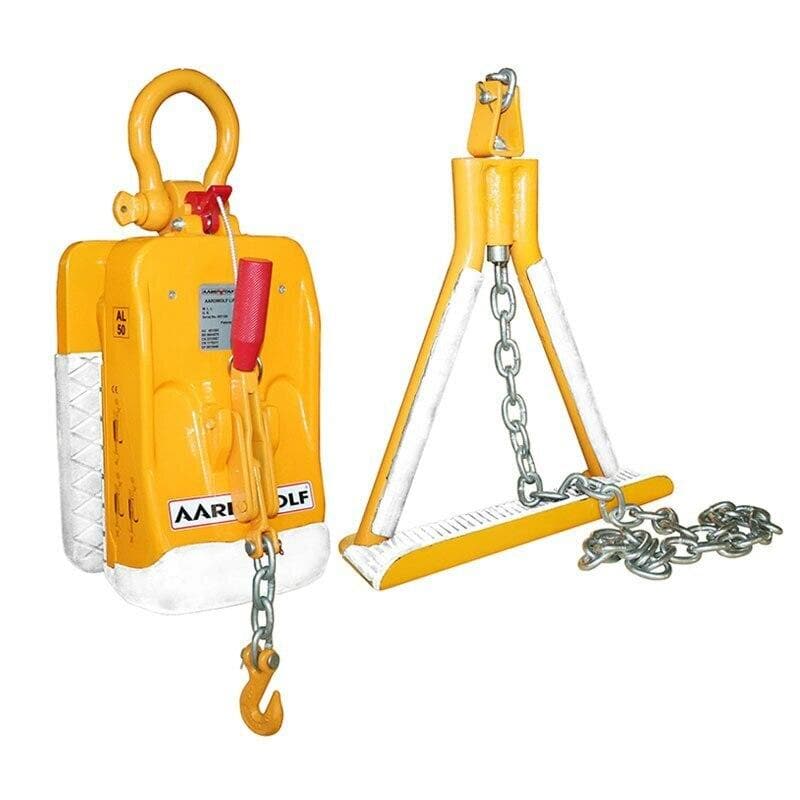

Aardwolf Lifter 50 Type B

The Aardwolf Slab Lifter 50 Type B is an upgraded version of the Aardwolf Slab Lifter 50. When using a lifter to lower panels on multi - storey buildings, there's a risk of the load hitting scaffolding or getting caught on obstacles, which could make the lifter drop the load. But this Type B model comes with an over - centre lever and support bracket, preventing such load - dropping situations. **Features**: - **Versatile**: Great for construction. The front - mounted clamping mechanism allows panels to be placed close to walls. - **Secure**: The Aardwolf clamps firmly grip the slabs. - It has a force - multiplying factor of about 2.5:1. **Specifications**: | Model | Grip Range | Working Load Limit | Net Weight | Gross Weight | Packing Dimensions | | ---- | ---- | ---- | ---- | ---- | ---- | | Lifter 30 Wide | 0.2'' - 1'' | 2646 | 45 | 47 | 17.3''x6.3x14.2'' | | Lifter 50 | 0.4'' - 2'' | 2646 | 42 | 44 | 15''x8.3''x9'' | | Lifter 50 - B | 0.4'' - 2'' | 2646 | 53 | 55 | 22.8''x7.3''x12.2'' | | Lifter 60 | 0.6'' - 2'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' | | Lifter 75 | 1'' - 3'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' | | Lifter 50 (Auto) | 0.4'' - 2'' | 2646 | 42 | 44 | 15''x8.3''x9'' | | Lifter 60 (Auto) | 0.6'' - 2'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' | | Lifter 75(Auto) | 1'' - 3'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' |

Using the Aardwolf Slab Lifter 50 Type B is easy. First, check the grip range of the lifter to make sure it matches the thickness of the slab you're going to lift. Then, position the clamps firmly on the slab. For multi - storey building work, always make sure the over - centre lever and support bracket are in place to prevent the load from dropping. When using it, keep an eye out for any obstacles like scaffolding that could get in the way of the load. Also, don't exceed the working load limit of 2646. For maintenance, regularly check the clamps for any signs of wear and tear. Keep the moving parts clean and lubricated to ensure smooth operation. If you notice any damage, stop using the lifter and get it repaired or replaced.
