ATR 30 Rammer

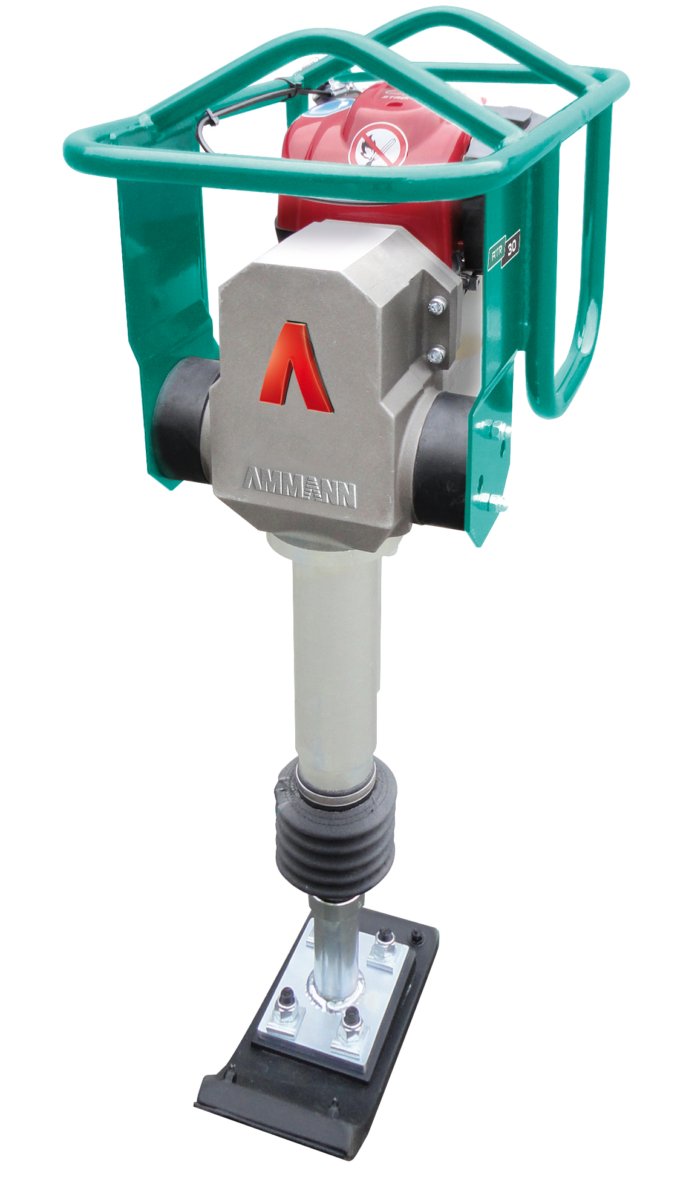

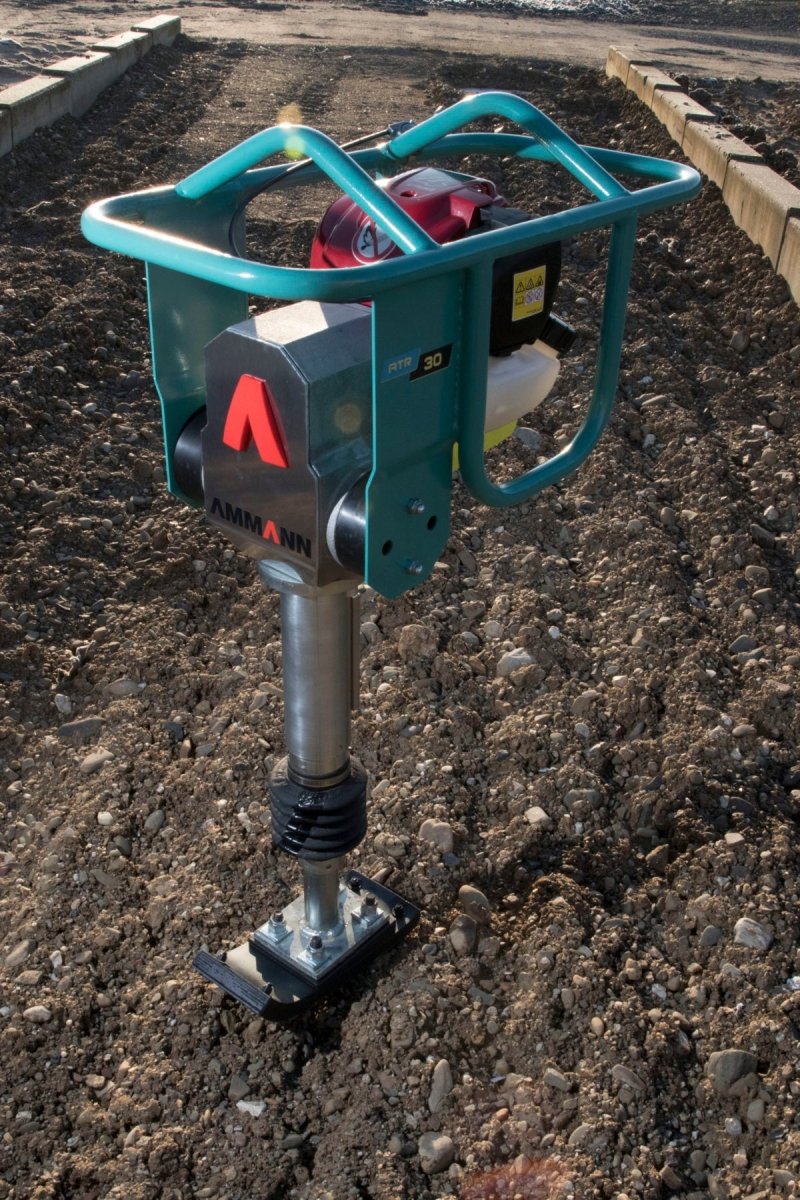

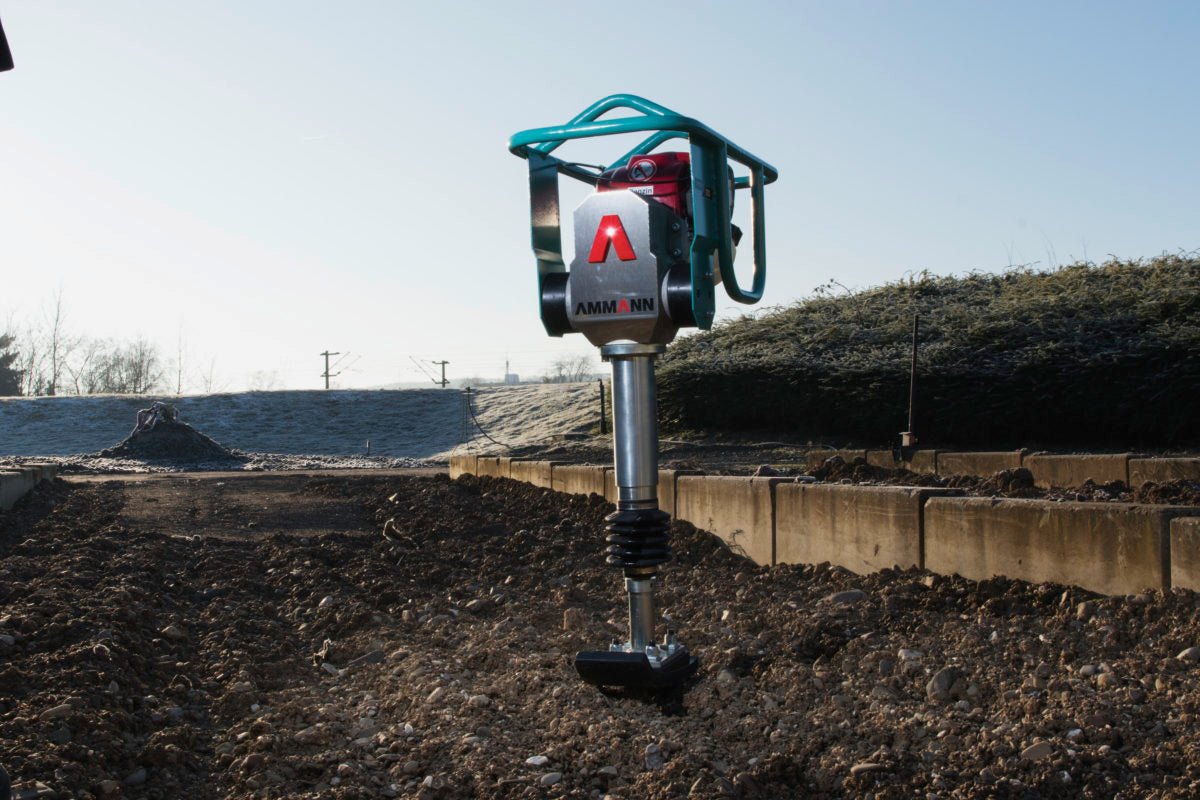

The ATR 30 Rammer: A Lightweight Powerhouse for Compaction

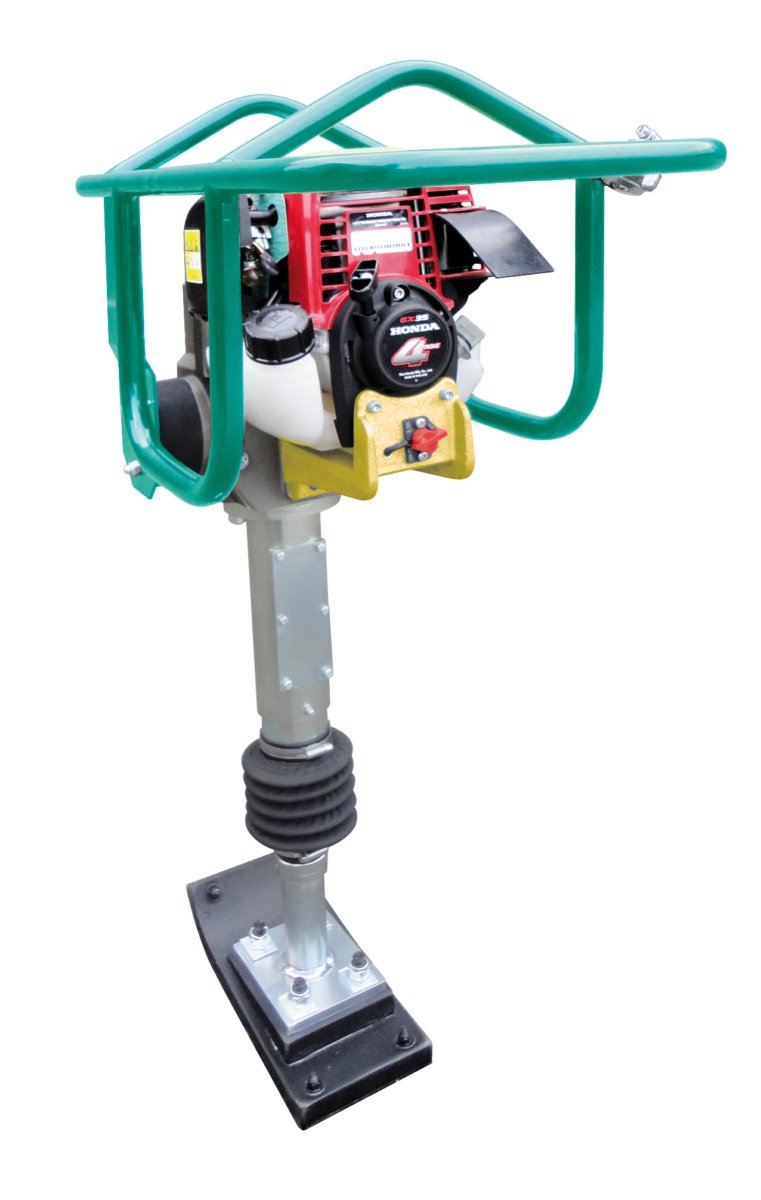

The ATR 30 is the lightest Ammann rammer available, weighing just 29 kg. Its light weight makes it incredibly easy to handle, especially in trenches and on job sites where a small rammer foot and low weight offer significant advantages. It's powered by a reliable small Honda GX 35 petrol engine.

Specifications

Weights & Dimensions
Machine weight	28 / 29 kg
Foot length	260 mm
Foot width	80 / 130 mm
Handle length	600 mm
Machine height	950 mm
Handle width	350 mm
Engine
Engine	Honda GX 35
Fuel	Petrol
Engine Output	1.1 kW (1.5 HP)
at RPM	5000
Compaction Forces
Percussion rate	13.3 Hz
Stroke height	45 mm
Centrifugal force	2 kN
Surface capacity	94 m²/h
max. compaction performance*	30 cm
Miscellaneous
Fuel tank capacity	0.63 l
Travel speed	12 m/min
Optional foot sizes width	N/A

• Comes with a standard 130 mm foot
• An 80 mm shoe is available for working in tight trenches

• One of the lightest rammers on the market at 29 kg
• Provides outstanding compaction results with its small feet
• Easy to handle

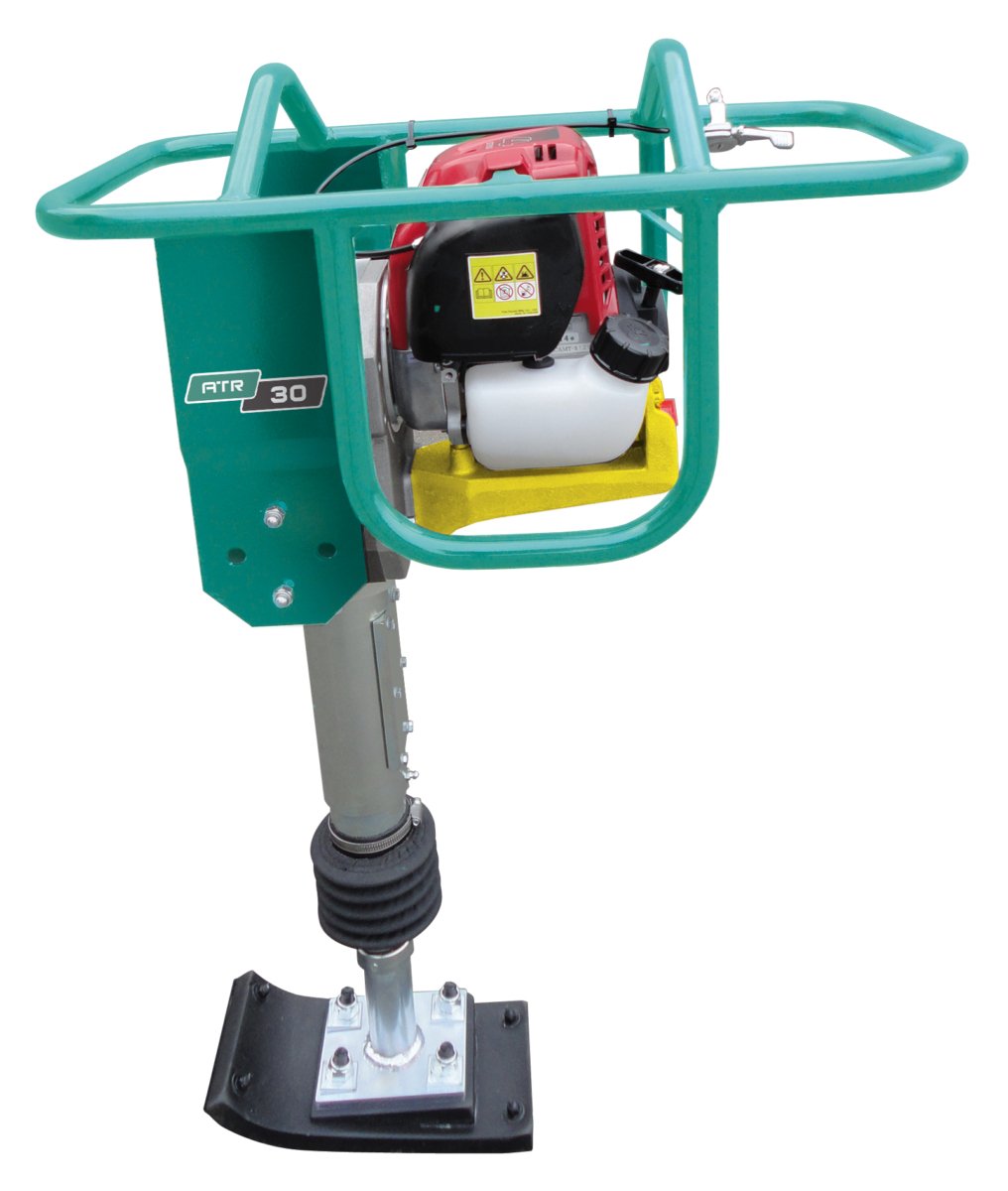

• The open handle gives a clear view of the rammer foot and allows for easy gripping from all sides during operation
• The handle also serves as a protective frame for important components
• Easy access to the engine and service points for quick maintenance

Using the ATR 30 Rammer is a breeze. First, fill the 0.63 - liter fuel tank with petrol. Then, start the Honda GX 35 engine. You can choose the 130 - mm standard foot for normal jobs or the 80 - mm shoe for tight trenches. When operating, hold the open handle. It gives you a good view of the rammer foot and can be grabbed from all sides. Move the rammer at a speed of 12 m/min for effective compaction. Remember, the rammer can compact up to 30 cm deep and has a surface capacity of 94 m²/h. For maintenance, since the access to the engine and service points is easy, check the engine regularly and keep it clean. Also, make sure to refuel it in a well - ventilated area. If you notice any abnormal noises or performance issues, stop using it immediately and check for problems.
