Ball Transfer Platforms

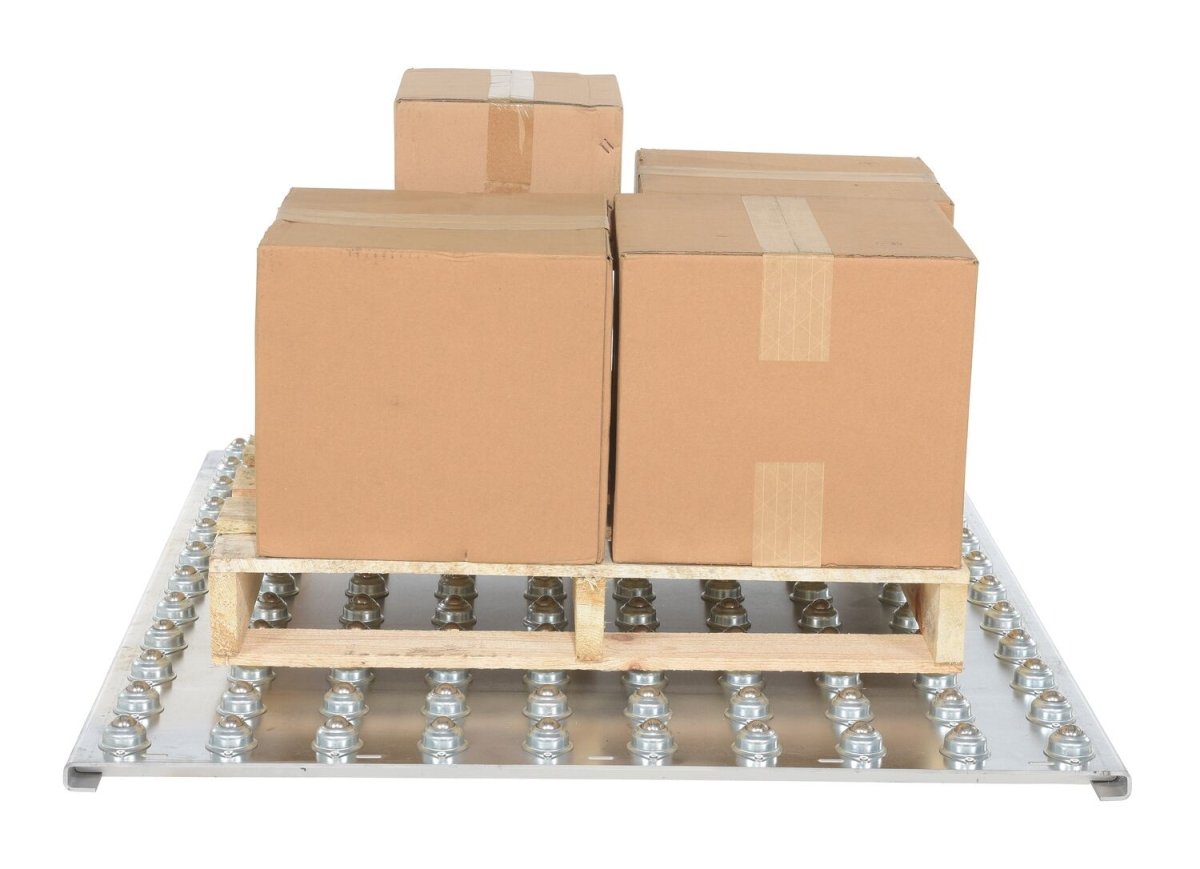

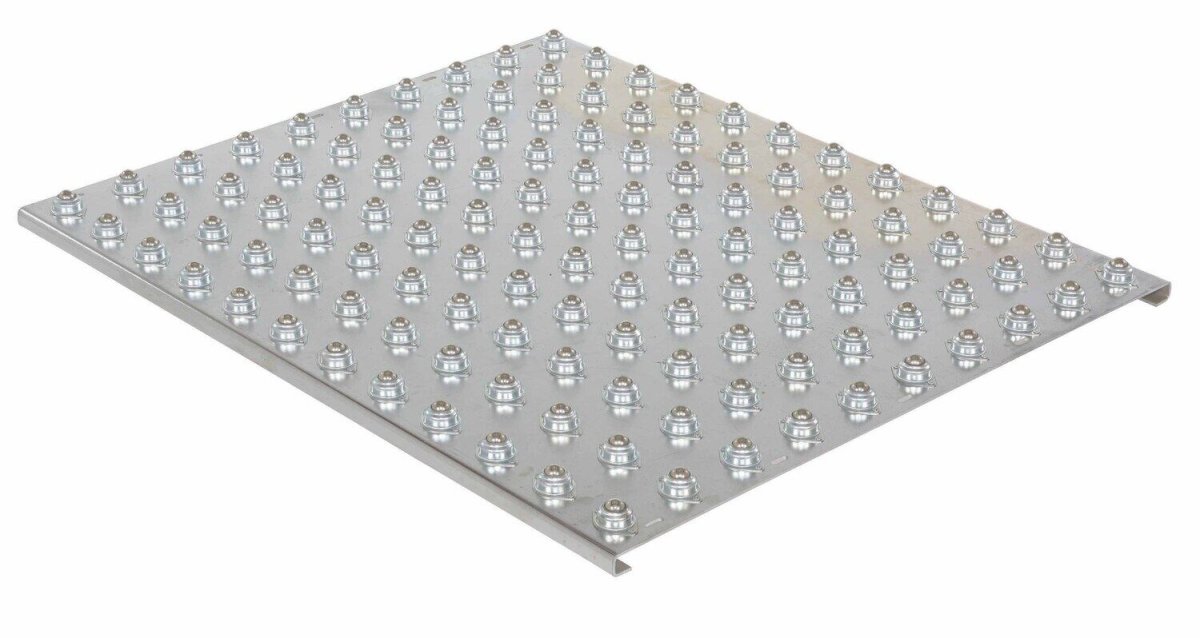

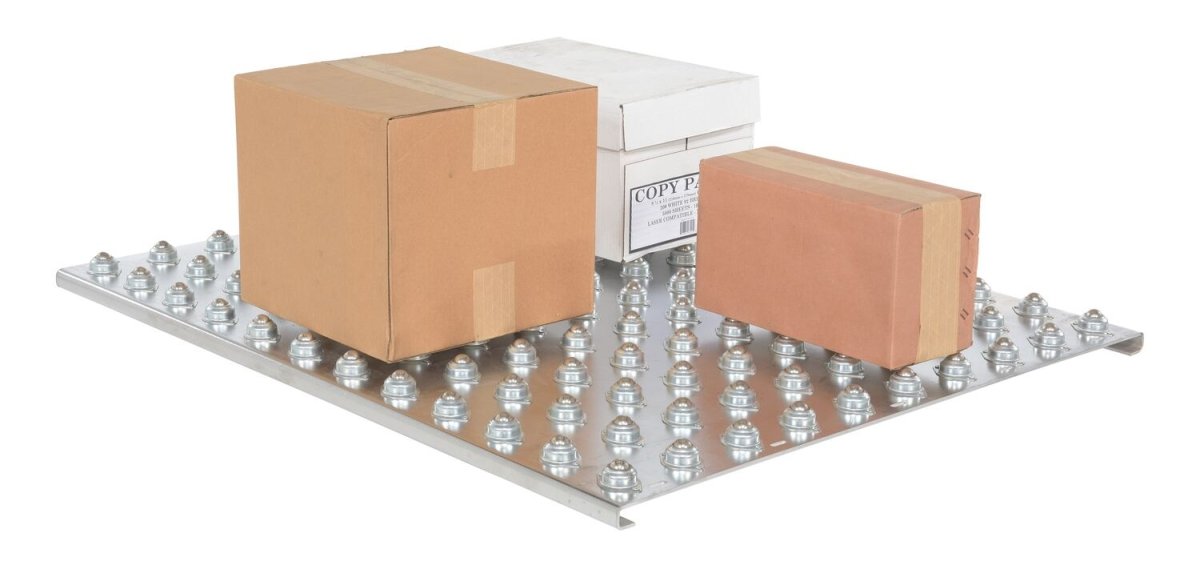

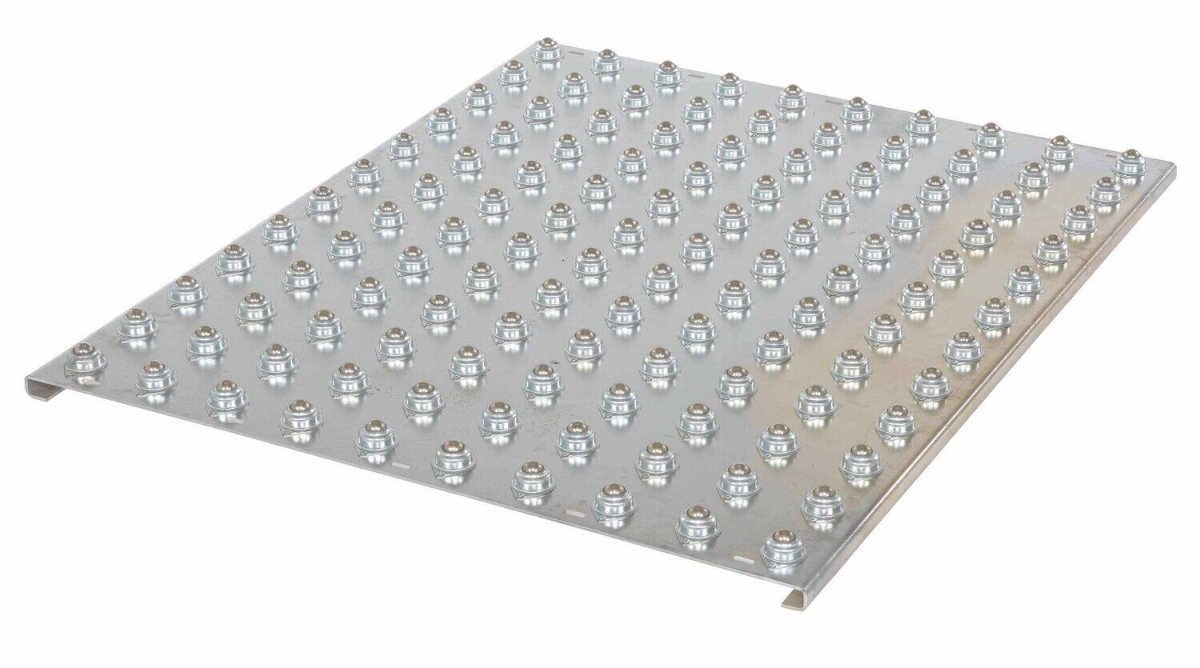

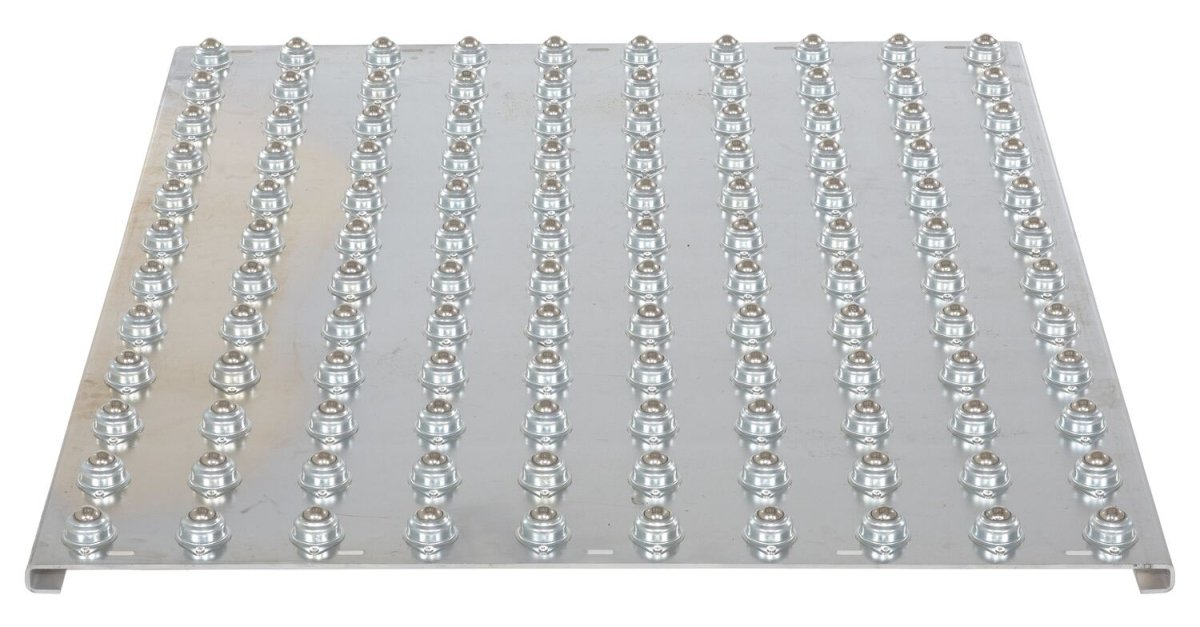

The ball transfer platform unit is a great addition as it can be easily bolted onto any platform. Its chrome ball transfers are arranged in a square pattern, which not only looks neat but also functions efficiently. You can attach it to hydraulic and mechanical post tables as well as lift tables. One of the best features is that it significantly minimizes the effort needed during item transfer. All measurements are approximate, and slight variations, tolerances or changes may occur at any time. The weights shown are approximate shipping weights. There are multiple models available: BALL - 1828 with an overall width of 18 - 1/8' and length of 28', BALL - 2036 with 20 - 7/8' width and 36 - 3/16' length, BALL - 2448 with 24' width and 48' length, BALL - 4048 with 40' width and 48' length, BALL - 3060 with 30' width and 60' length. All models have a chrome finish and a capacity of 75 lbs. Retractable stops are available, so contact your sales representative for details.

Using your ball transfer platform is easy. First, find a suitable platform like a hydraulic or mechanical post table or a lift table. Then, bolt the ball transfer platform unit onto it firmly. When you need to transfer items, simply place them on the platform, and the chrome ball transfers will make the movement smooth with minimal effort. As for maintenance, keep the platform clean and free from dirt and debris regularly. You can use a soft cloth to wipe it down. Also, check the bolts periodically to make sure they are tight. Remember, all the measurements provided are approximate, so there might be slight variations. If you're interested in the retractable stops, reach out to your sales representative. And always be aware that weights shown are just for shipping purposes, so don't base your load - planning strictly on those numbers.
