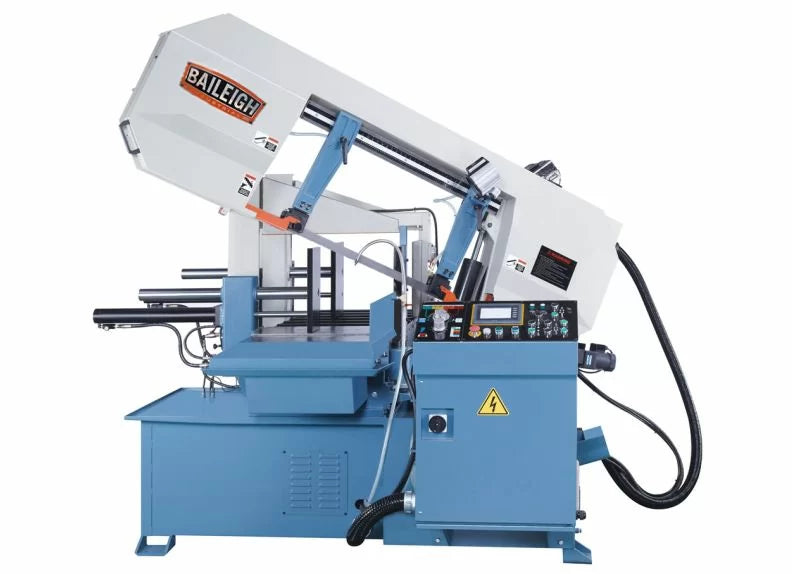

Save time and money with our robust 3-phase automatic horizontal band saw. It's built to last and boost your productivity.
The hydraulic clamp and feed system work together to speed up production. Its durable steel frame ensures long - term accuracy even with heavy use.
* 18 - inch round cutting capacity at 90°.
* Comes with a massive 1.5 - inch blade, which guarantees fast and straight cuts.
* Variable speed from 65 to 279 fpm allows you to fine - tune for different materials.
* Adjustable speed extends blade life and enhances cut quality.
* Swivel head miters up to 45°.
* Runs on 220 - volt 3 - phase power.
* A Delta® inverter powers a strong 5 hp motor.
* Fully automatic feed and cutting functions manage cut transitions, increasing output.
* Hydraulic dual - clamp bundling lets you cut multiple material pieces at once.
* The feed system uses digital encoders for precise material placement.
* The user - friendly touchscreen programmer enables you to input cut lengths, numbers of cuts, and custom settings.
* Adjust bow height, descent, and blade speed using the standard control panel.
* Operate in automatic or manual mode.
* Automatic broken blade shut - off protects your workshop.
* The patented blade tension device helps you set the right tension quickly.
* Electro - welded steel framework reduces vibrations for high - quality cuts.
* Hydraulic chip auger removes debris after cutting.
* Bright halogen work light improves visibility.
* Most replacement parts are in stock for quick shipping.
* We offer a 1 - year parts warranty and lifetime technical support by phone.
Specification
More Information| Stock Number | BA9 - 1001374 |
|---|
| Accessories | Included Accessories |
|---|
| Blade Guide | Carbide x Roller |
|---|
| Blade Speeds (SFPM) | 65 – 279 (Variable Speed) |
|---|
| Capacity Rectangular 90 X 45 | 15' x 24' |
|---|
| Capacity Round 90 X 45 | 18' x 15' |
|---|
| Capacity Square 90 X 45 | 18' x 15' |
|---|
| Chip Removal | Hydraulic Auger |
|---|
| Descent Control | Pressure Assist Hydraulic |
|---|
| Hydraulic Motor | 1 |
|---|
| Input Power | Manual |
|---|
| Material Clamping Bundling | Hydraulic |
|---|
| Material Feed | Hydraulic |
|---|
| Type of Miter Adjustment | Swivel Head |
|---|
| Miter Angle Range (Deg.) | 0 – 45° |
|---|
| Model Number | BS - 24A |
|---|
| Prop 65 | Cancer and Reproductive Harm |
|---|
| Return | Hydraulic |
|---|
| Shipping Dimensions (L x W x H) (In.) | 107x92x76 |
|---|
| Table Height (In.) | 32.3 |
|---|
| Weight (Lbs.) | 3900 |
|---|
| Gross Weight | 3900.0 |
|---|
| Net weight | 3900.0 |
|---|
Using the BS - 24A band saw is quite straightforward. First, make sure it's connected to a 220 - volt 3 - phase power source. You can use the touchscreen programmer to input the cut lengths, number of cuts, and other settings for your project. If you need to adjust the bow height, descent, or blade speed, use the buttons and dials on the control panel. You can choose to operate the machine in either automatic or manual mode according to your needs. When using it, keep in mind that the saw has an automatic broken blade shut - off feature for your safety. Also, be aware of the Prop 65 warning about cancer and reproductive harm. For maintenance, regularly check the blade tension using the patented device and adjust it as needed. The hydraulic chip auger will remove debris after cutting, but you may want to clean the machine occasionally to keep it in good condition. Most replacement parts are usually in stock, so if something breaks, you can get a new part quickly. And if you have any questions, you can call our team for lifetime technical support.
