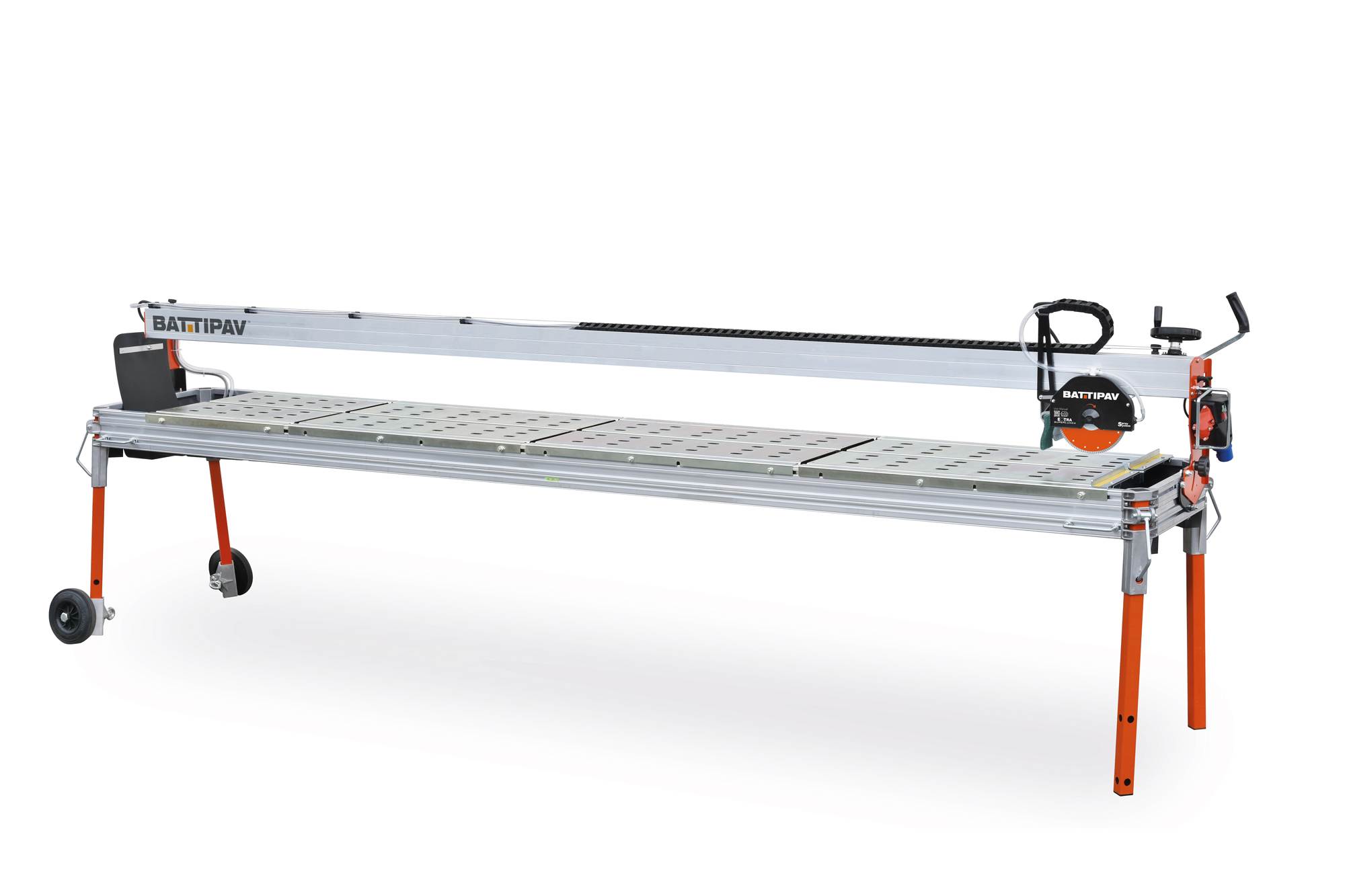

Superior Precision Cutting with Battipav EXTRA 3300 S Superlong Tile Cutter
Discover unrivaled precision and efficiency with the Battipav EXTRA 3300 S Superlong radial tile cutter. Ideal for straight and 45° angle cuts on extra - large porcelain tiles, this top - notch tile cutter combines innovative tech with a sturdy build.
Features
- Powerful Motor: A single - phase 115V~50Hz 1.4Kw (1.87 HP) motor delivers outstanding cutting power.
- Sliding and Plunging Cutting Head: Enables precise cuts with adjustable height.
- Thermal Protection: Built - in protection ensures safe operation.
- Adjustable Features: Adjustable legs and goniometer fence allow for flexible setup.
- Water Recycling Pump: The included Type S1 pump provides efficient water cooling.
- Laser Guide: Standard feature for accurate alignment.
- B - Lock System: Securely holds tiles in place during cutting.
- High - Resilience Aluminium Rail: Comes with interchangeable stainless steel bearings - tracks for ultimate cutting precision.
- Maximum Cutting Capacity: Can cut tiles up to 129.9 inches long and 92x92 inches diagonally.
- Durable Construction: Designed to work with 8 - inch (200mm) diamond disks for special gres.
|
| Power | 1.8hp |
| Voltage | 115V |
| Length of Cut | 129.9 in |
| Diagonal Length of Cut | 92 in |
| Arbor | 5/8 in |
| Blade Capacity | 8 in |
| Depth of Cut | 1.5 in |
| Weight | 396 lbs |
| Dimensions | 131 in x 24.5 in x 51 in |
What’s Included
- Superlong 3300S Saw
- 4 Side Table (90241)
- B - LUX Grip w/ 120grit Tungsten Carbide Sandpaper(993N, 993/120N)
- Lifting Straps (90180)
- Sankyo Glass Blade (890SKC)
- Dressing Stone (SP07060)
- B - Lock Clamp (90262U)
Using the Battipav EXTRA 3300 S Superlong Tile Cutter is quite straightforward. First, make sure it's plugged into a 115V power source. Then, adjust the legs and goniometer fence according to your cutting needs. Place the tile on the cutter and use the B - Lock System to secure it firmly. The laser guide will help you align the tile precisely. When you're ready, start the powerful motor and use the sliding and plunging cutting head to make your cut. Remember, the water recycling pump is there to keep things cool, so make sure it's working properly. As for maintenance, keep the machine clean after each use. Check the high - resilience aluminium rail and the interchangeable stainless steel bearings - tracks regularly for any signs of wear. Also, check the blade and replace it when it's worn out. Always follow safety procedures, and don't forget the built - in thermal protection is there to keep you safe during operation.
