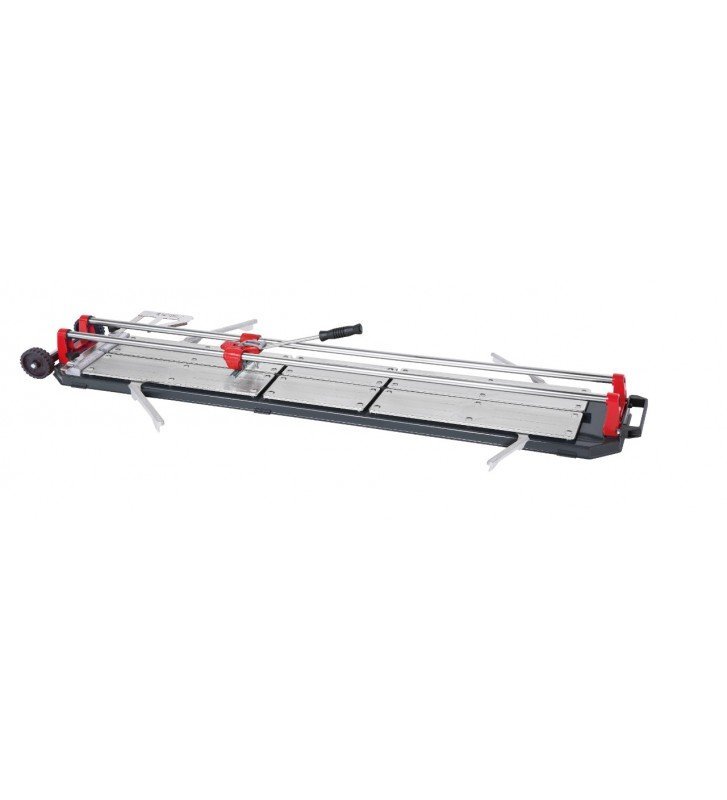

Cortag Mega 180 Tile Cutter - 71

The brand - new MEGA Tile Cutters are a top - notch choice for cutting large format ceramic and porcelain tiles. These tiles can be up to 15mm thick and 180cm long. The MEGA Manual Cutters line is specifically crafted to satisfy various cutting needs for ceramic and porcelain tiles. Key features include: a cutting capacity of up to 9/16″ thickness and 70″ length; a 1 - ton separation force that offers more comfort and less effort; a one - touch return to the scoring position for increased productivity; sturdier guides screwed onto the support to boost machine rigidity; a cutting wheel with a Tungsten (carbide) disc and zinc - plated alloy shaft; cutting and separation on the base itself, no need to remove the piece, and an articulation system for separating pieces at any angle; a separation system, guide support, and backing bar made of injected aluminum; easier wheel replacement; an aluminum side support for greater stability when cutting large format tiles; a side limiter for precise straight and diagonal cuts; an aluminum guide support; and wheels and handle for easy handling and transportation. Model: Mega 180 with cover bag. Cutting width: 70″ | 180 cm. Diagonal Cutting: 50” x 50” | 127 cm x 127 cm. Cutting thickness: 9/16″ | 15 mm. Quantity per package: 1.

Using your Cortag Mega 180 Tile Cutter is easy. First, place the tile on the base of the cutter. Align it with the side limiter for a precise cut, whether it's a straight or diagonal one. Then, use the scoring wheel to make a cut mark on the tile. Thanks to the one - touch return feature, you can quickly get back to the scoring position for more cuts. Once scored, use the separation system to break the tile. It has a 1 - ton separation force, so you don't need to put in too much effort. When it comes to maintenance, make sure to keep the cutter clean after each use. Wipe off any dust or debris. The wheels and the cutting disc may wear out over time. It's easy to replace the wheel as the cutter offers greater accessibility for wheel replacement. If you need to move the cutter, use the wheels and handle for easy transportation. Store it in a dry place to prevent any rusting, especially since some parts are made of aluminum. And always remember to check the rigidity of the sturdier guides and the overall machine before each use to ensure safe and efficient operation.
