h2>Compact yet powerful, the Elite EVS lathes offer perfection. They fit big - feature functionality into small spaces, making them ideal for schools, small workshops, and engineering labs.

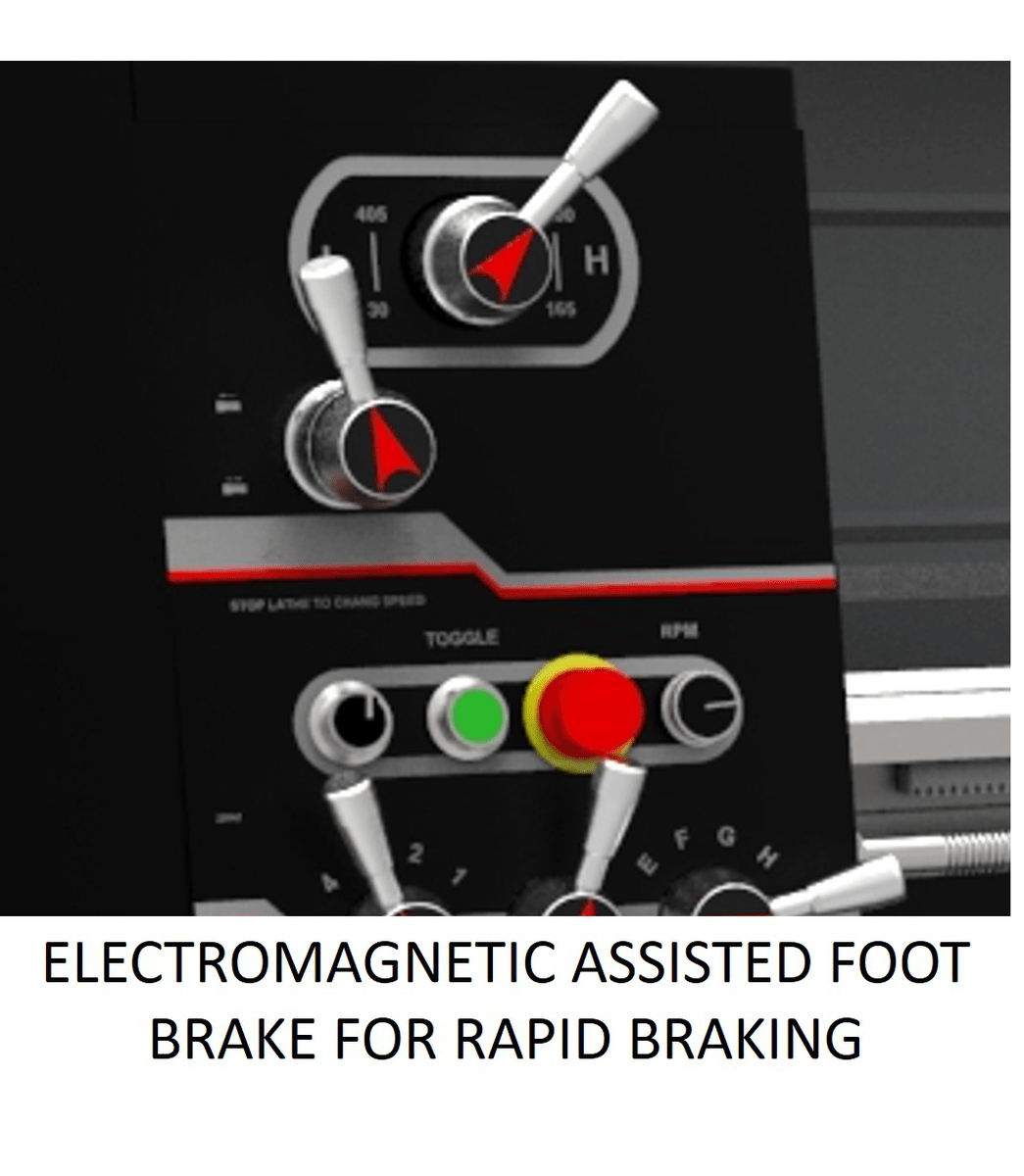

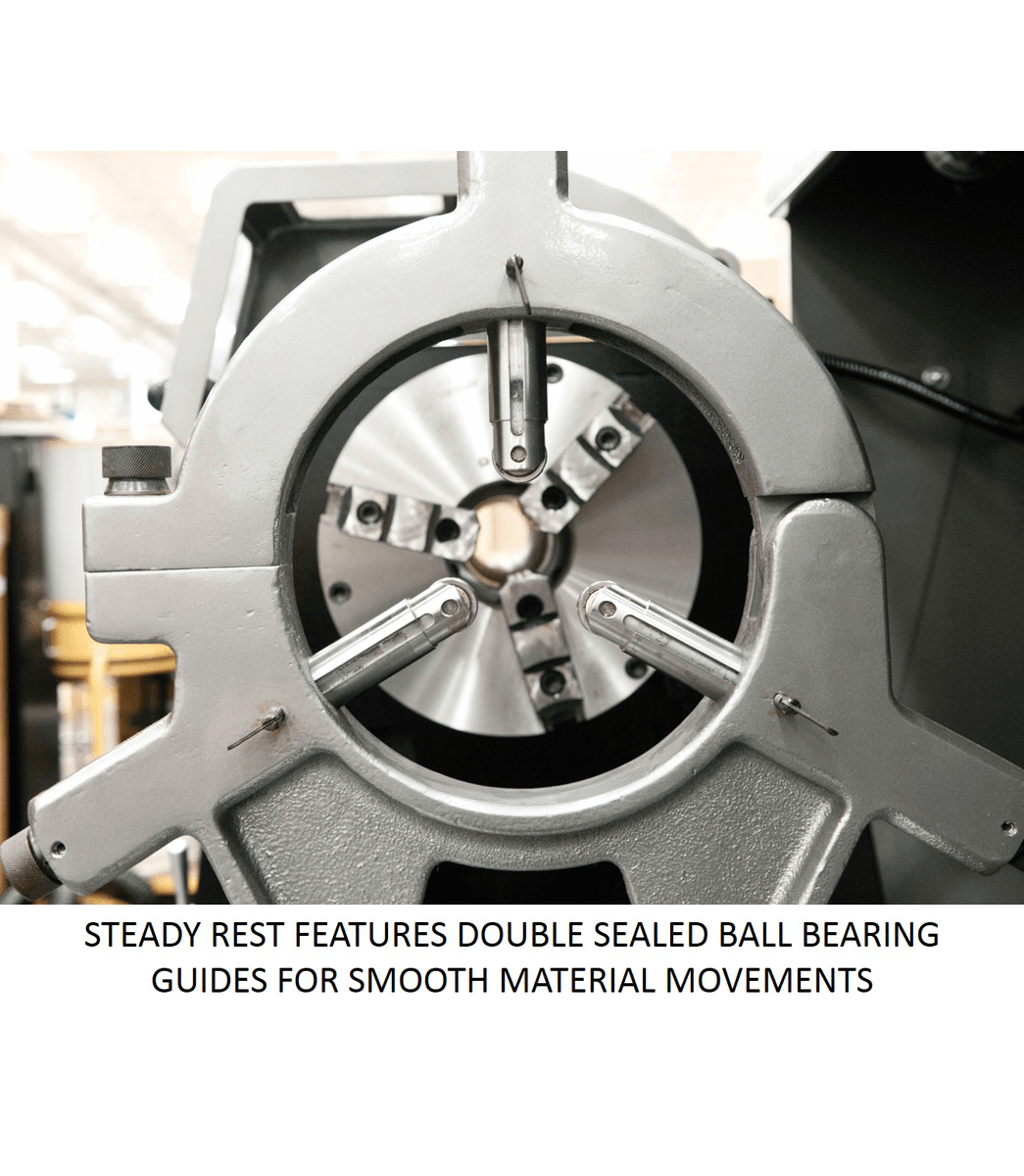

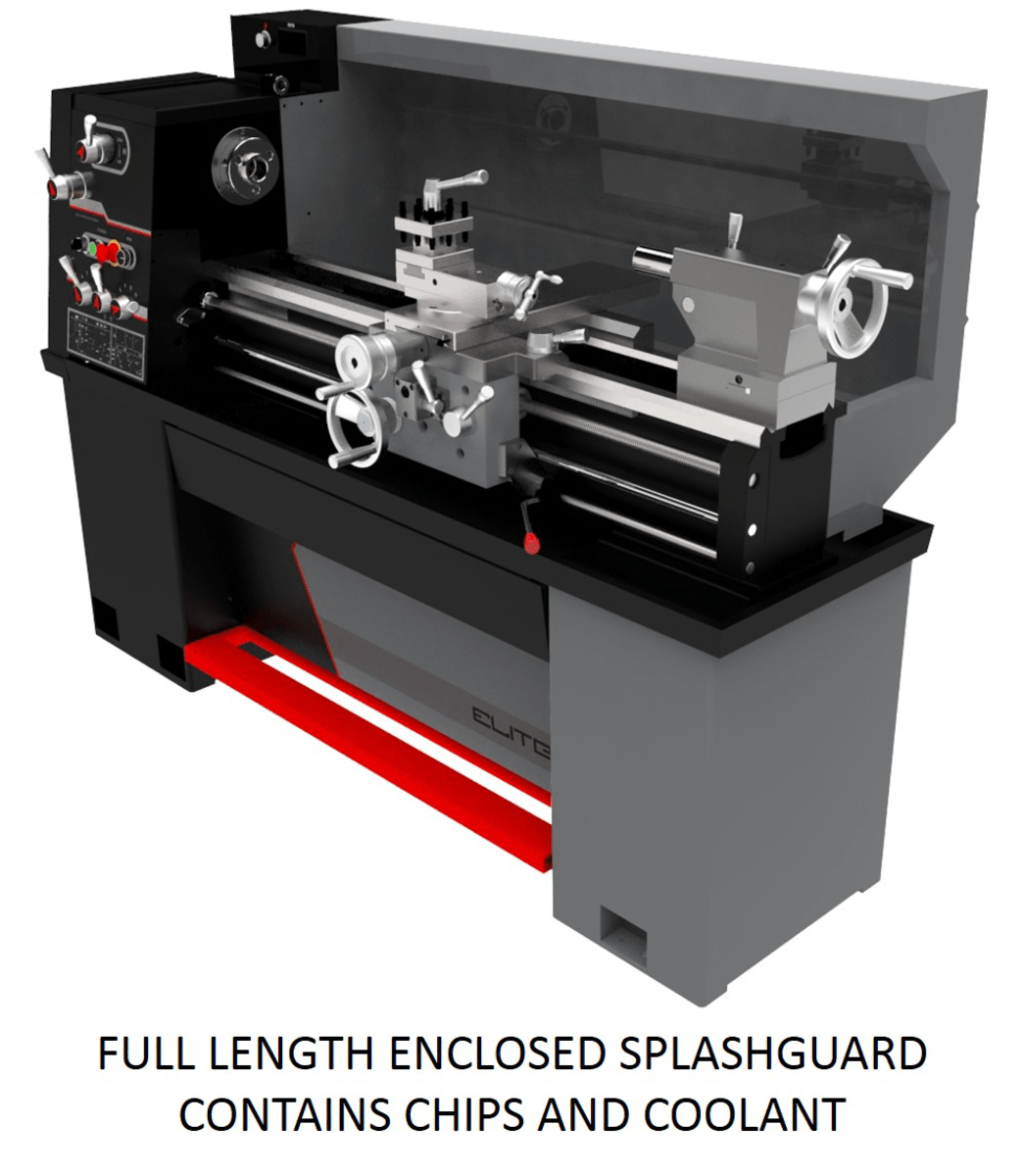

These lathes are truly elite, featuring certified Meehanite® castings, an electromagnetic brake, a three - jaw chuck, ball - bearing - mounted steady and follow rests, and CNC - style lighting with an enclosed splash guard. They're CSA/CUS Certified.
- 4 - Position Carriage Stop for easy operation
- Standard chuck guards enhance safety
- Front - facing chip pan simplifies chip removal

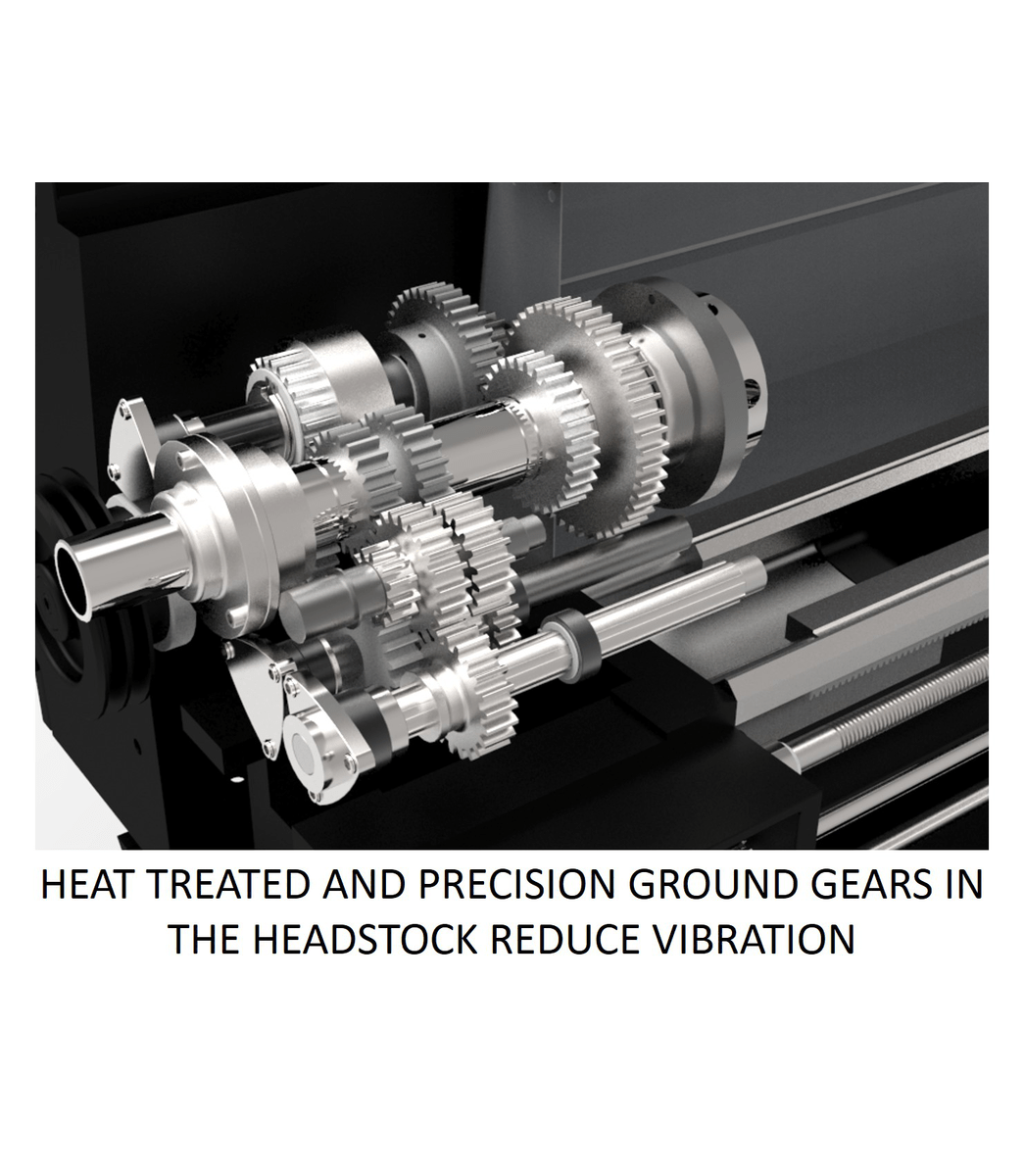

- Hardened and ground headstock gears reduce vibration
- Inverter drive provides variable spindle speeds
- LED RPM readout ensures precise turning
- Two - speed gearbox offers a wide speed range

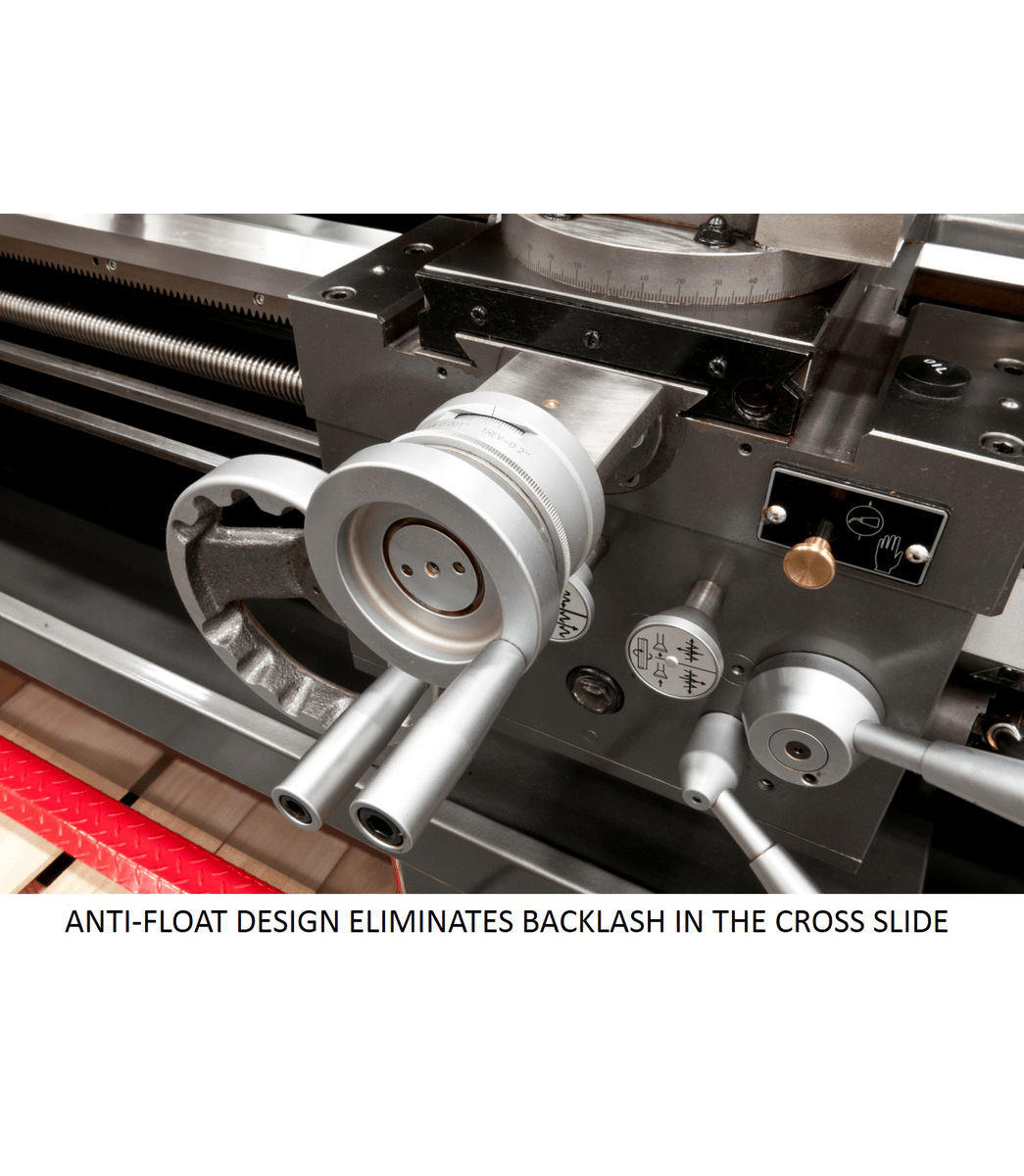

| Stock Number | 892413 |
|---|
| Amperage Draw @ 230V 3Ph | 19 |
|---|
| Compound Slide Travel (In.) | 3 - 1/2 |
|---|
| Drive | EVS |
|---|
| Length of Gap (In.) | 9 |
|---|
| Max Tool Size (In.) | 5/8 x 5/8 |
|---|
| Motor (HP) | 3 HP, 230V, 3Ph |
|---|
| Number of Inch Threads | 40.0000 |
|---|
| Number of Longitudinal and Cross Feed Rates | 80 |
|---|
| Number of Metric Threads | 22.0000 |
|---|

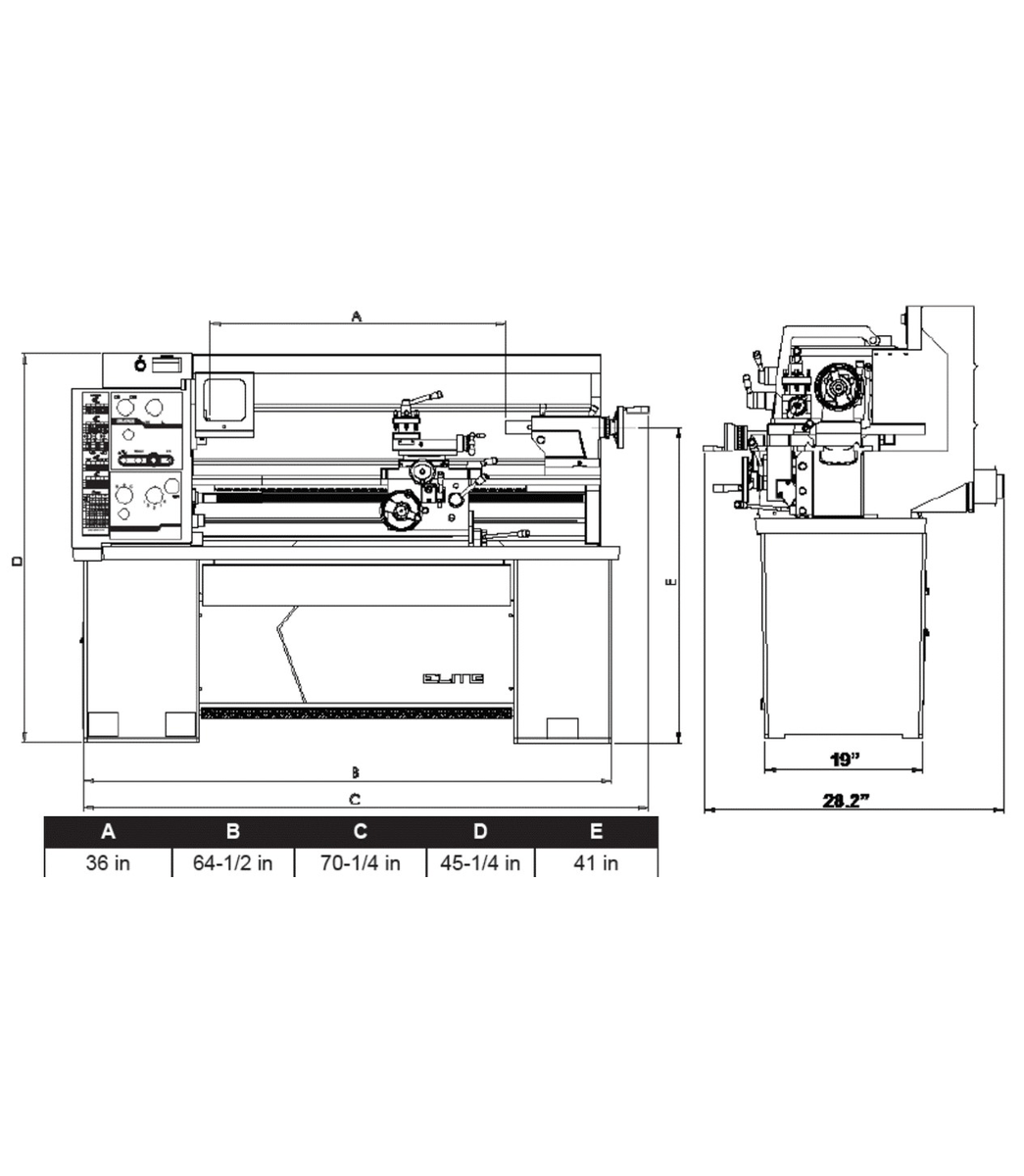

| Overall Dimensions (L x W x H) (In.) | 67 x 30 x 57 |
|---|
| Prop 65 | Cancer and Reproductive Harm |
|---|
| Range of Cross Feeds (IPR) | 0.0003 - 0.01 |
|---|
| Range of Inch Threads (TPI) | 4 - 112 |
|---|
| Range of Longitudinal Feeds (IPR) | 0.0012 - 0.0294 |
|---|
| Range of Metric Threads | 0.45 - 7.5 |
|---|
| Range of Spindle Speeds (RPM) | 0 - 2,200 |
|---|
| Size | 13 x 40 |
|---|
| Spindle Bore (In.) | 1 - 1/2 |
|---|
| Spindle Mount | D1 - 4 |
|---|
| Spindle Taper with Sleeve | MT - 5 |
|---|
| Steady Rest Capacity (In.) | 1/4 - 2 - 3/4 |
|---|
| Style (Type) | ELITE EVS |
|---|
| Swing Over Bed (In.) | 13 |
|---|
| Swing Over Cross Slide (In.) | 7 - 5/8 |
|---|
| Swing Through Gap (In.) | 19 |
|---|
| Tailstock Spindle Travel (In.) | 4 - 3/4 |
|---|
| Taper in Tailstock Spindle | MT - 3 |
|---|
| Weight (Lbs.) | 1433 |
|---|
| Width of Bed (In.) | 8 - 1/2 |
|---|
Using this Elite 13 x 40 EVS lathe is straightforward. First, make sure to place it on a stable surface. To start, plug it into a 230V 3 - phase power supply. You can adjust the spindle speed using the inverter drive system, and the LED RPM readout will show you the exact speed. Use the 4 - position carriage stop for easy positioning of the carriage. When working, always keep the chuck guards in place for safety. For chip removal, simply use the front - facing chip pan. As for maintenance, regularly check the headstock gears for wear. Lubricate the moving parts as recommended in the manual. Since it has a Prop 65 warning, be careful as it may cause cancer and reproductive harm. Always follow safety procedures and wear appropriate protective gear when operating this lathe.
