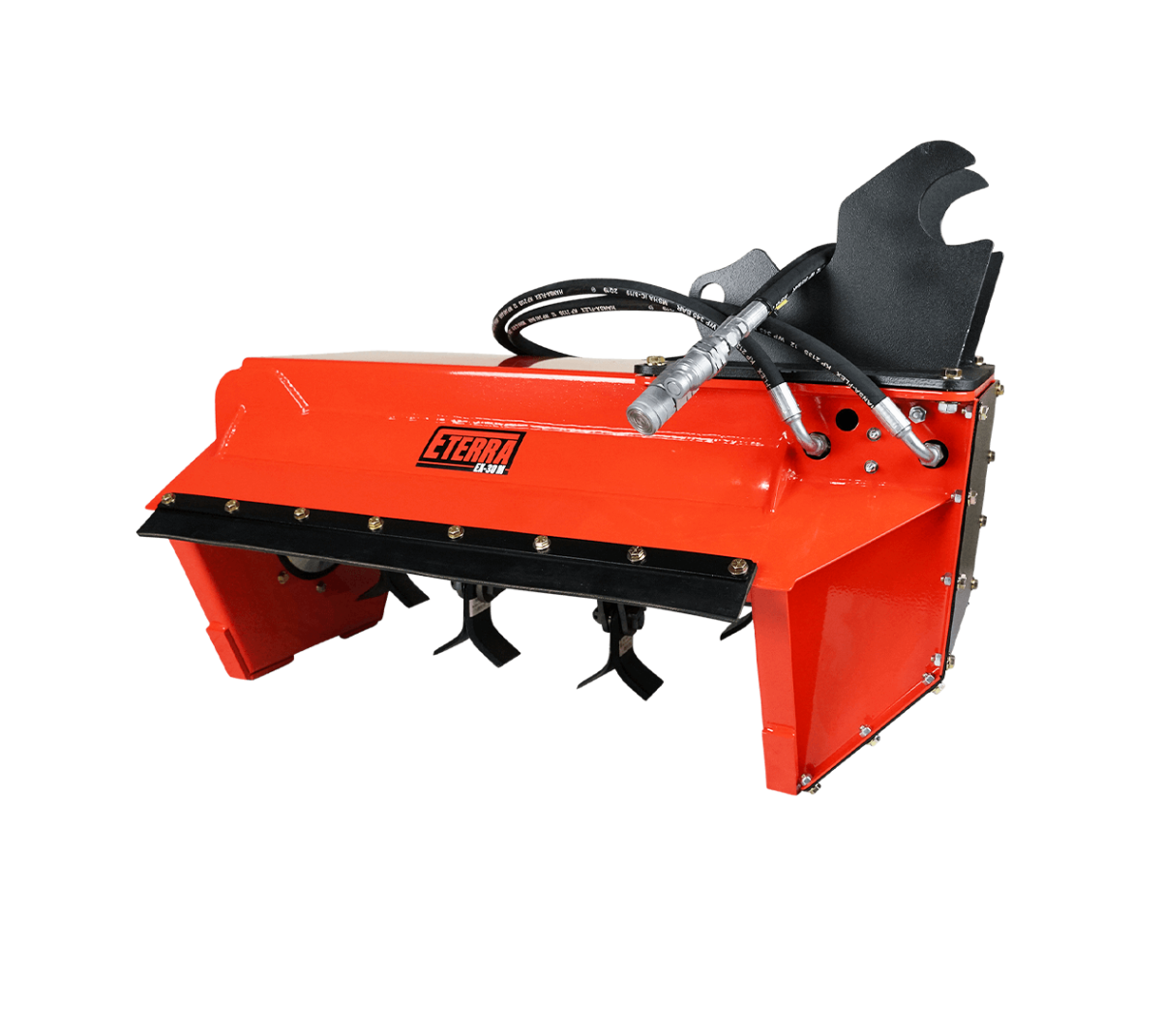

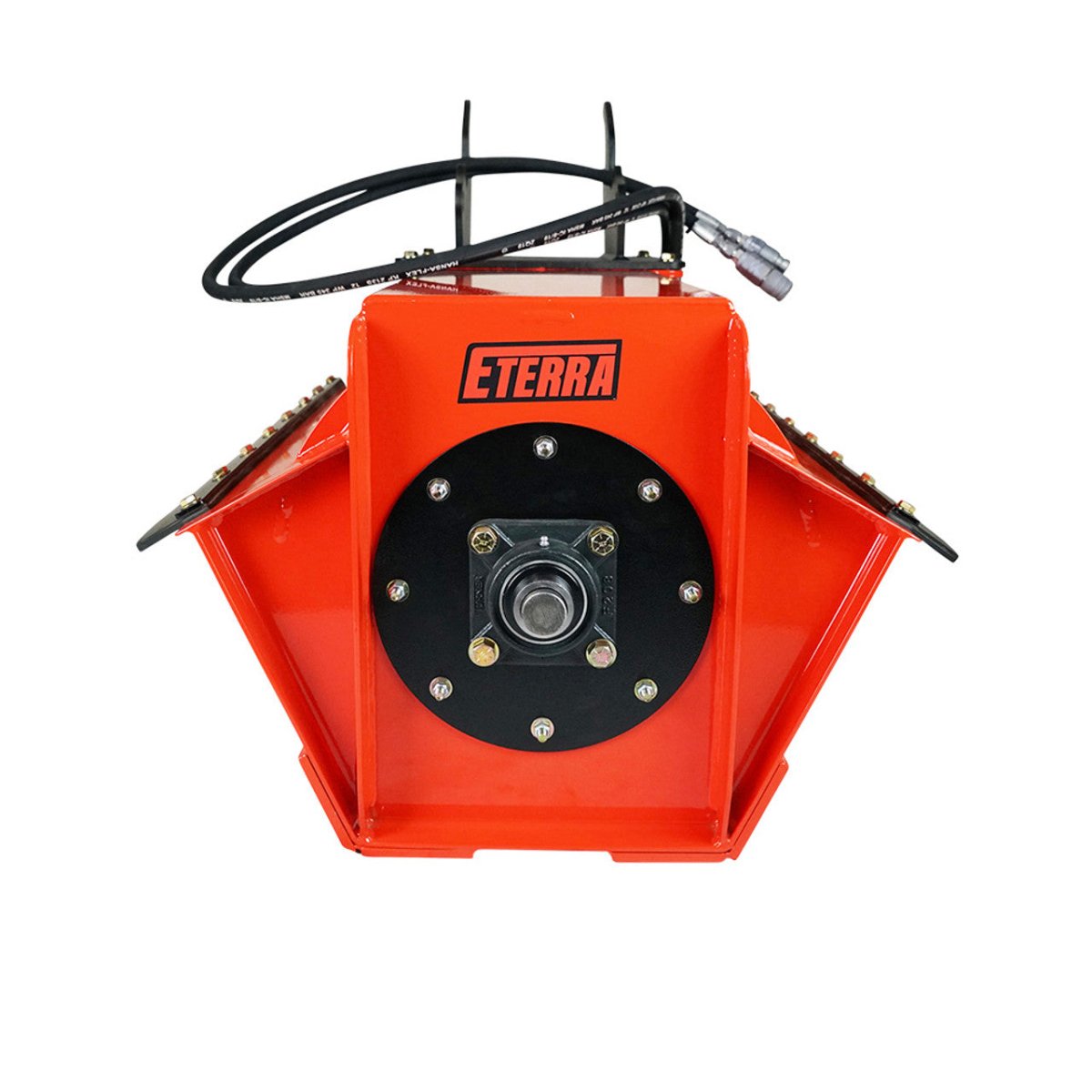

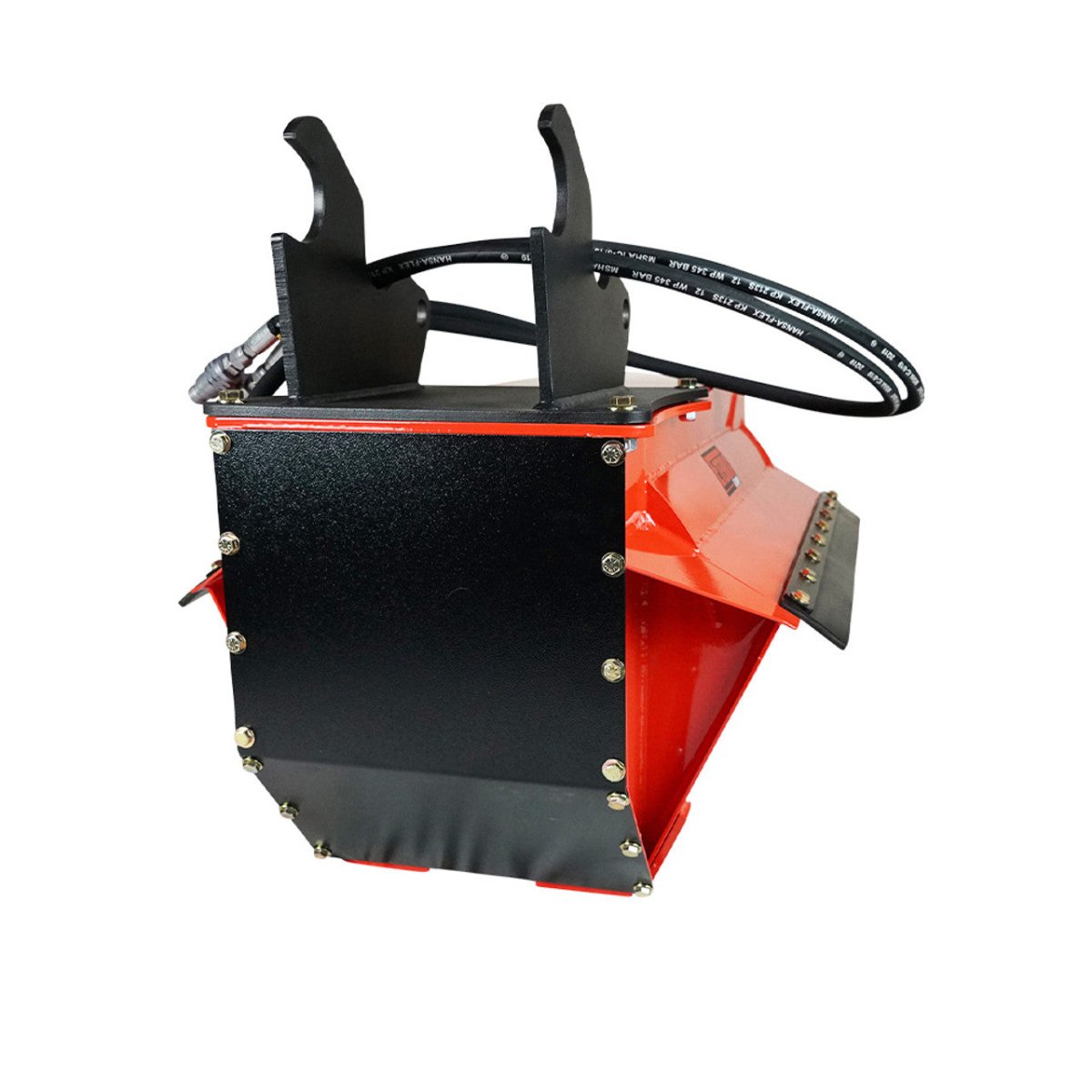

The Eterra EX-30 Micro Flail Mower is a great fit for mini excavators weighing from 2200 lbs. to 7000 lbs., with flow rates between 8 - 26 GPM. It's also available in other sizes like the EX40, EX30, and the 36 Sidewinder. This mower is compatible with most excavator models, offering a wide range of cutting options. It cuts cleanly, leaving smaller debris than a rotary mower, which means less cleanup and more time for operation. Made in the USA, it focuses on accurate GPM pairing to get the most power from your machine. The EX-30 Micro has 16 1lb Y-Knife flail blades powered by a Permco gear drive motor. Its precision electronically balanced blade carrier, rubber vibration dampener, and universal excavator coupler mounting pad make it perfect for various mini excavator and backhoe loader uses. Powered by a USA - made Permco gear drive motor, it has an electronically balanced blade carrier for smooth spin - up and can cut down to 1.5' off the ground. A universal excavator coupler allows attachment to many excavators. Constructed of A572 Grade 50 high - strength steel, it's lightweight for small excavators. The curved housing design maximizes cut capacity with minimal debris buildup. AR500 skid shoes protect the frame during ground mowing. It can safely cut and mulch up to 4” material. Included are the EX - 30M Excavator Flail Mower, SMB - 1000 blank mounting plate, optional machine - specific coupler (at an added cost), hydraulic hoses, and flat - faced couplers. Features include a flow range of 8 - 26 GPM, 4' cutting capacity, 43' overall width, 3500 PSI max pressure, recommended for medium hard brush, grass, and brambles, and a rotation range of 2000 - 2500 RPM. Design specs show it weighs 346 lbs., with an A572 Grade 50 housing, Steel - 4140 HT drive shaft, Y - Knife Blades (1 lb), Permco Hydraulic Gear Drive Motor, case - hardened spring steel cutter blade material, 16 blades, and a 20' deck height.
Using the Eterra EX - 30 Micro Flail Mower is easy. First, make sure your mini excavator meets the weight and flow rate requirements, which are between 2200 lbs. to 7000 lbs. and 8 - 26 GPM respectively. Attach the mower to your excavator using the universal coupler. When starting, check that the hydraulic hoses are properly connected and the flat - faced couplers are secure. For cutting, adjust the height of the mower according to your needs. It can cut down to 1.5' off the ground. As you operate, it's designed to handle medium - hard brush, grass, and brambles up to 4” thick. Be aware that while it's made of strong A572 Grade 50 steel and has AR500 skid shoes to protect the frame, avoid hitting extremely hard objects like large rocks. This could damage the blades or the mower itself. When it comes to maintenance, regularly check the 16 1lb Y - Knife blades. They are replaceable, so if you notice any signs of wear, change them promptly. Keep an eye on the hydraulic system, including the Permco gear drive motor. Make sure the pressure doesn't exceed 3500 PSI. Also, clean the mower after each use to prevent debris buildup, especially in the curved housing. Store the mower in a dry place to avoid rusting. With these simple steps, your mower will serve you well for a long time.
