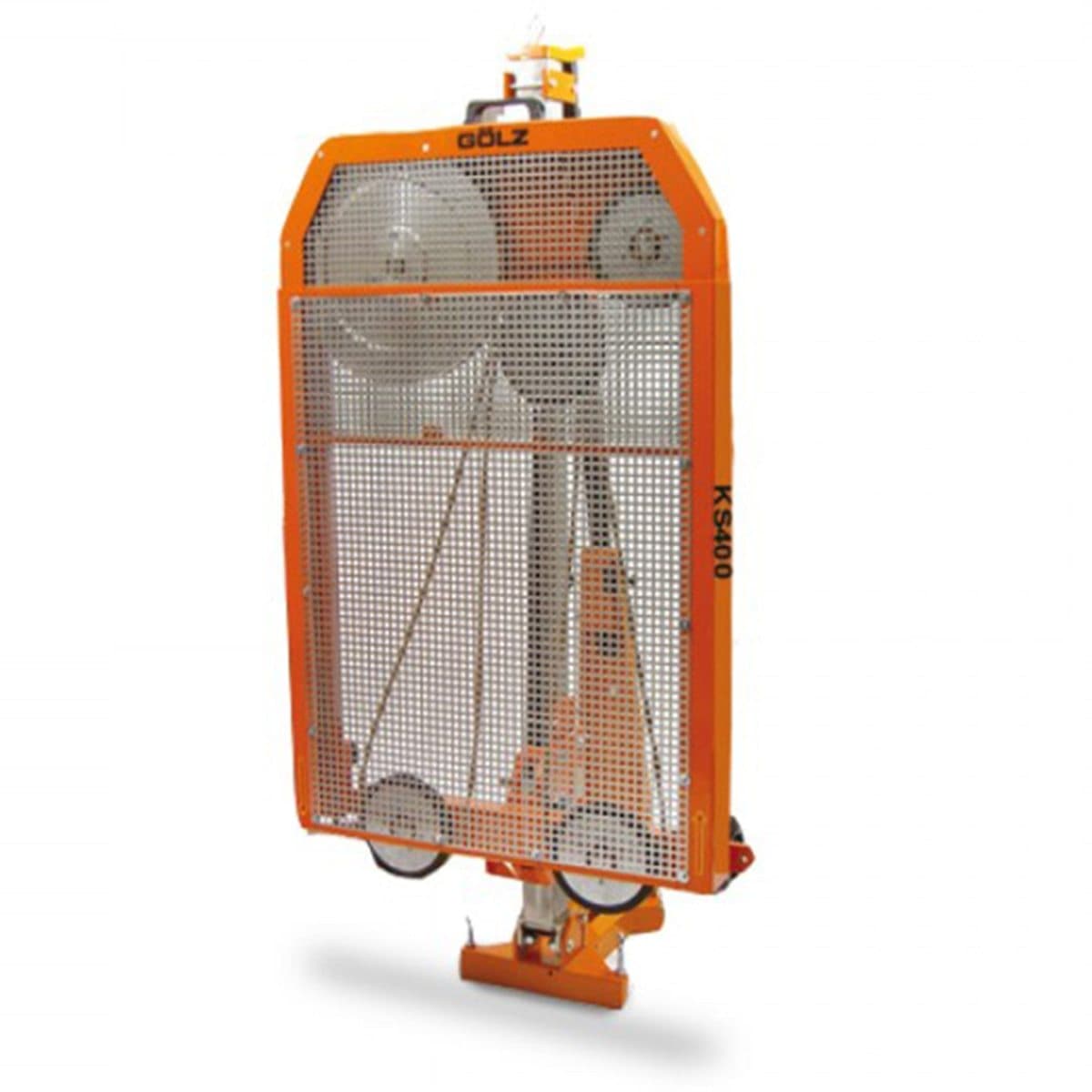

Golz KS400E Wire Saw

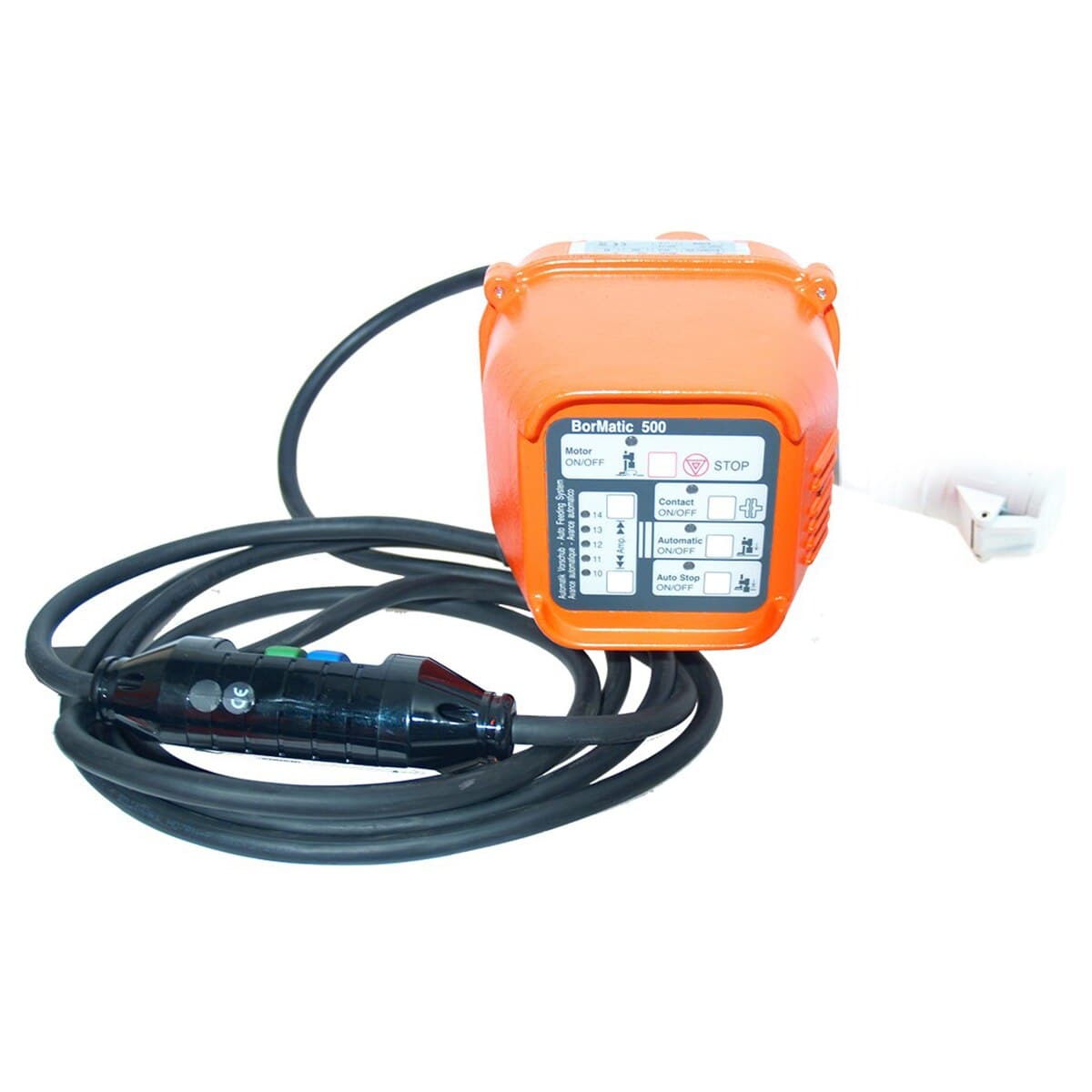

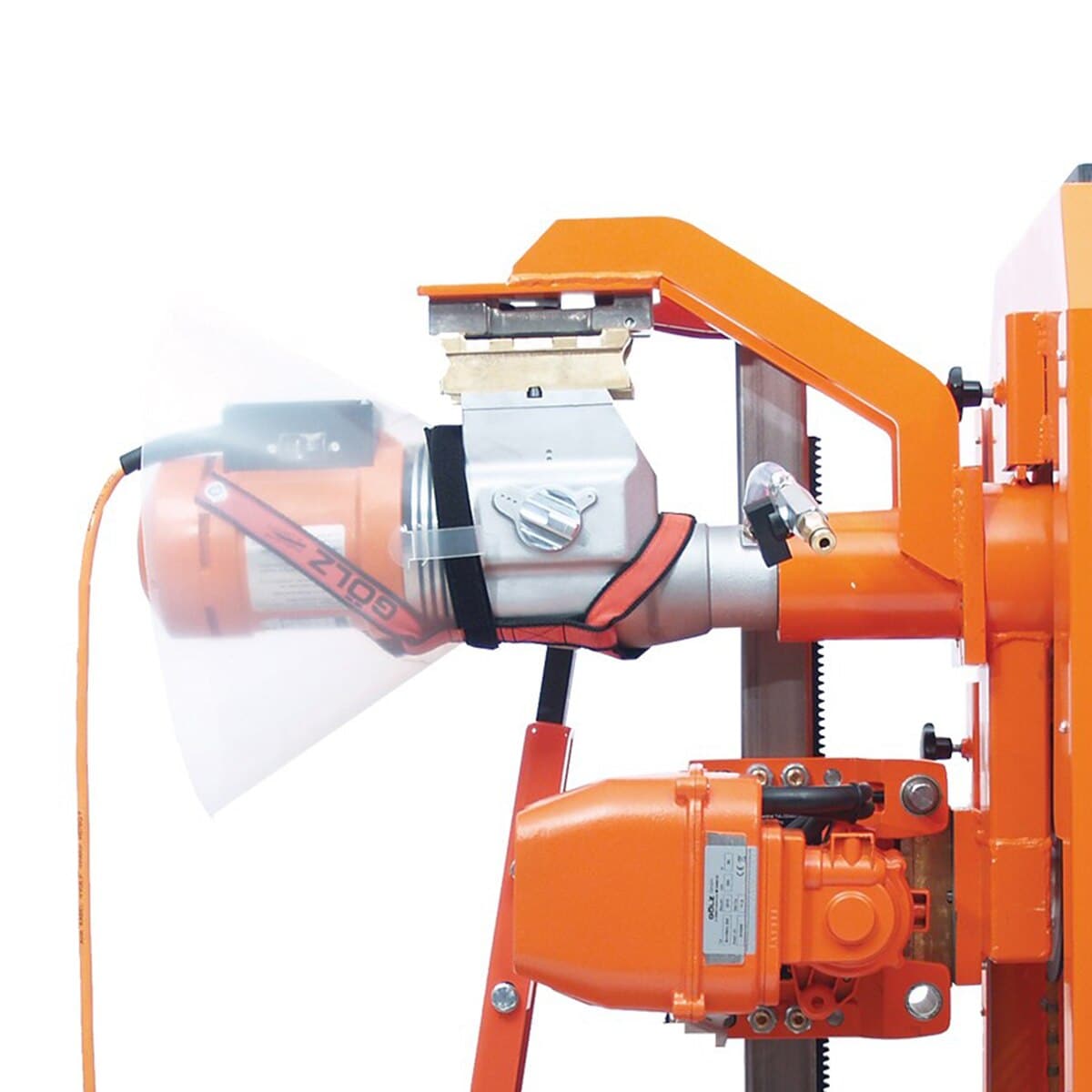

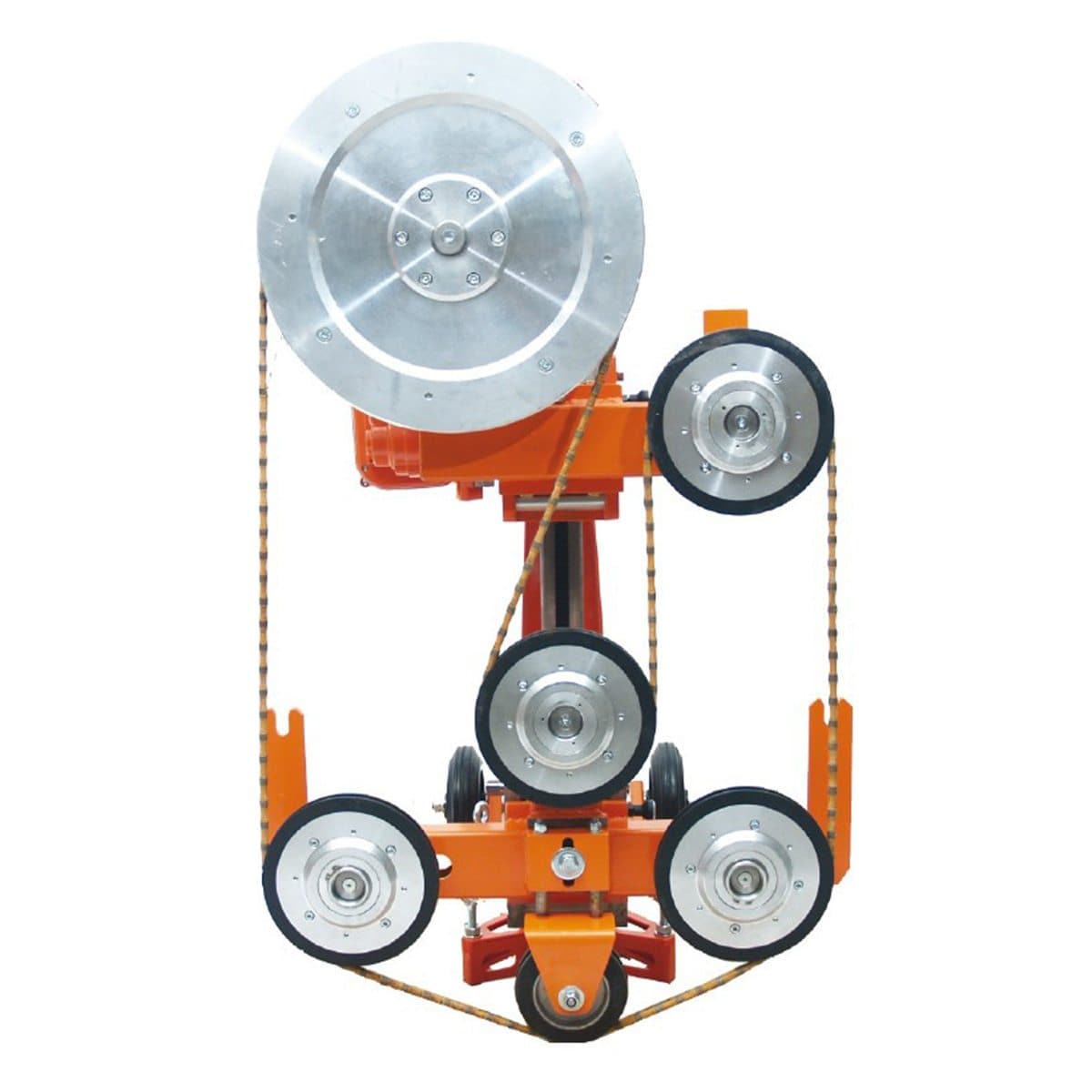

The Golz KS400E is a portable and compact wire saw perfect for small cutting jobs ranging from 16 inches by 16 inches (400x400 mm) to 32 inches by 32 inches (800x800 mm). It's based on the core drill rig KB400. Designed for small and precise cuts, it can work either dry or wet. With the modular Gölz system, you can convert it to a core drill rig in just a few minutes. The wire is driven by a single - phase, 3.3 kW core drill motor and an automatic feeding unit BorMatic80. It offers great cutting performance in reinforced steel, whether dry or wet, when using the premium 8 mm Gölz diamond wire. Here are its specifications: Drive: electric; Power: 4.5 hp (3.3 kW); Wire - storage: 95 in. (2.40 meter); Wire - Ø: 8 in. (200 mm); Drive - Ø: 16 in. (400 mm); Dimensions (LxWxH): 21.65 x 32 x 43 in. (550x810x1100 mm); Weight complete: 216 lbs. (98 kg); Order number: 0283 400 1000.

Using the Golz KS400E wire saw is quite easy. First, choose the appropriate diamond wire according to your cutting job. Connect the saw to a proper power source as it's an electric - driven tool. Place the saw on the area you want to cut and adjust it to the right position. For small and precise cuts, you can work either dry or wet as per your need. When you're done with the cutting, make sure to disconnect the power. As for maintenance, clean the saw regularly, especially after wet cutting to prevent rust. Check the wire and other parts for wear and tear frequently. If you notice any damage, replace the parts promptly. Also, keep the saw in a dry and safe place when not in use. Remember to follow all safety instructions provided with the saw to ensure your safety during operation.
