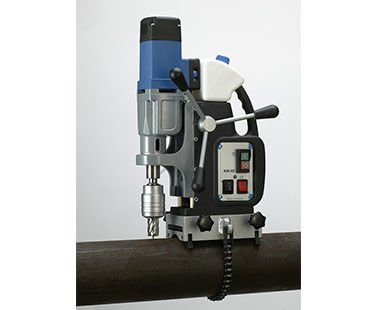

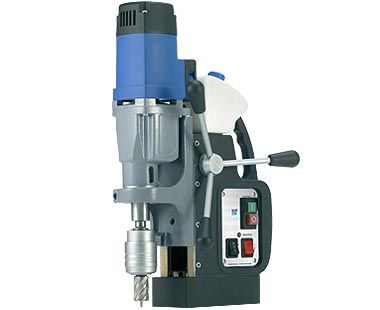

MAB 485 Portable Magnetic Drills

Highly Versatile for Workshop and Assembly Jobs

• Powerful and Dependable
• Keyless Quick-Change Cutter System
• Built-in Cutting Oil Reservoir
• Automatic Internal Lubrication

Specs

Motor Power	10.5 Amp / 110 Volt
Weight	29 lbs.
Hole Capacity	2-1/16' dia.
Twist Drill Capacity	7/8' dia.
Tapping Capacity	15/16' dia.
Speeds	50-250 and 100-450 RPM
Magnet Base Size	6-5/8' L x 3-1/3' W
Dimensions	17-1/4' H x 11-5/8' L x 7' W
Magnetic Force (1' plate)	3750 lbs.
Arbor Bore	3/4' Weldon Shank
Spindle	MT2
Automatic Lubrication	Included

More info

• Catalog Page: MAB 485 & MAB 485 SB (PDF)

• Schematics: MAB 485 (PDF)

• Operating Manual: MAB 485 (PDF)

• Schematics: MAB 485 SB (PDF)

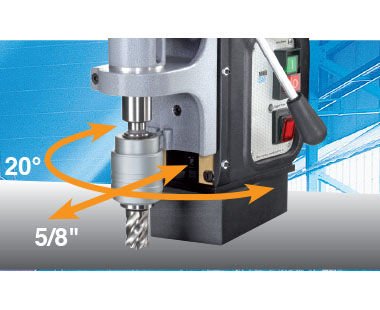

• Operating Manual: MAB 485 SB Swivel Base-Quick Guide (PDF)

Using the MAB 485 Portable Magnetic Drill is easy. First, find a flat and stable surface for the drill. Turn on the drill and use the quick - change keyless cutter system to attach the right cutter for your job. You can drill holes with a capacity of up to 2 - 1/16 inches in diameter, twist drill up to 7/8 inches, or tap up to 15/16 inches. The automatic internal lubrication keeps the drill running smoothly, thanks to the integrated cutting oil reservoir. When it comes to speed, you can choose between 50 - 250 RPM or 100 - 450 RPM. Just make sure to keep the magnetic base clean and dry to ensure a strong magnetic force. For maintenance, regularly check the oil level in the reservoir and refill it when needed. Also, inspect the cutter for any signs of wear and tear. Refer to the included operating manual for more detailed instructions and safety precautions.
