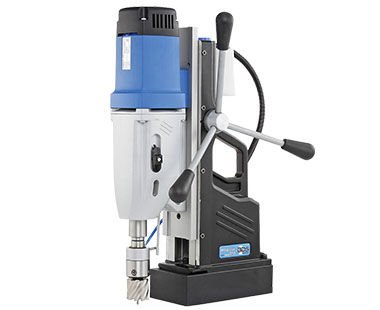

MABasic 850 – Four-Gear Portable Magnetic Drill

A Powerful Motor for Tough Jobs

• 4 - gear high - speed motor for challenging tasks
• 3/4' direct arbor with automatic cooling
• Built - in lubrication system

Specs

Motor Power	16 Amp / 110 Volt
Weight	53 lbs.
Stroke	10'
Hole Capacity	3 - 1/16' dia.
Twist Drill Capacity	1 - 1/4' dia.
Speeds	1: 110 RPM 2: 175 RPM 3: 245 RPM 4: 385 RPM (4 Gears)
Magnet Base Size	8 - 5/8' L x 4 - 1/3' W

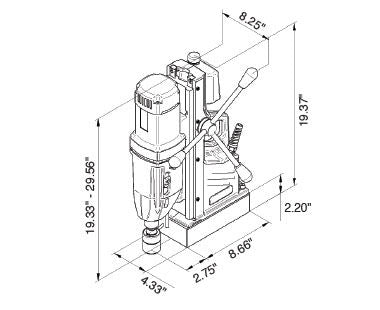

Dimensions	19 - 3/8' H x 11 - 5/8' L x 8 - 1/4' W
Magnetic Force (1' plate)	6000 lbs.
Arbor Bore	3/4' Weldon Shank
Spindle	MT3
Internal Lubrication	Included

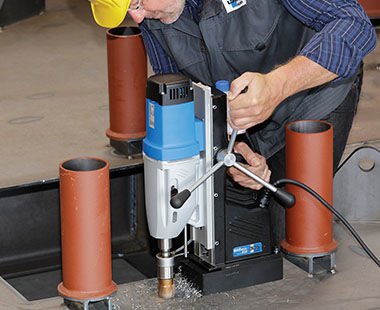

Using the MA Basic 850 Four - Gear Portable Magnetic Drill is straightforward. First, place the drill on a flat and clean surface. Make sure the magnet base is firmly attached to the working surface. Plug it into a 110 - volt power source. You can choose the appropriate speed from the four available gears according to your task. For smaller holes, lower speeds might be better, while larger holes may require higher speeds. When drilling, keep an eye on the automatic cooling system to ensure the drill doesn't overheat. Regarding maintenance, regularly check the internal lubrication system. If it's running low, refill it as needed. Also, clean the drill after each use to prevent dust and debris from building up. And always store it in a dry place. Be careful not to overload the motor, and don't use it on surfaces that are too thick or hard beyond its capacity.
