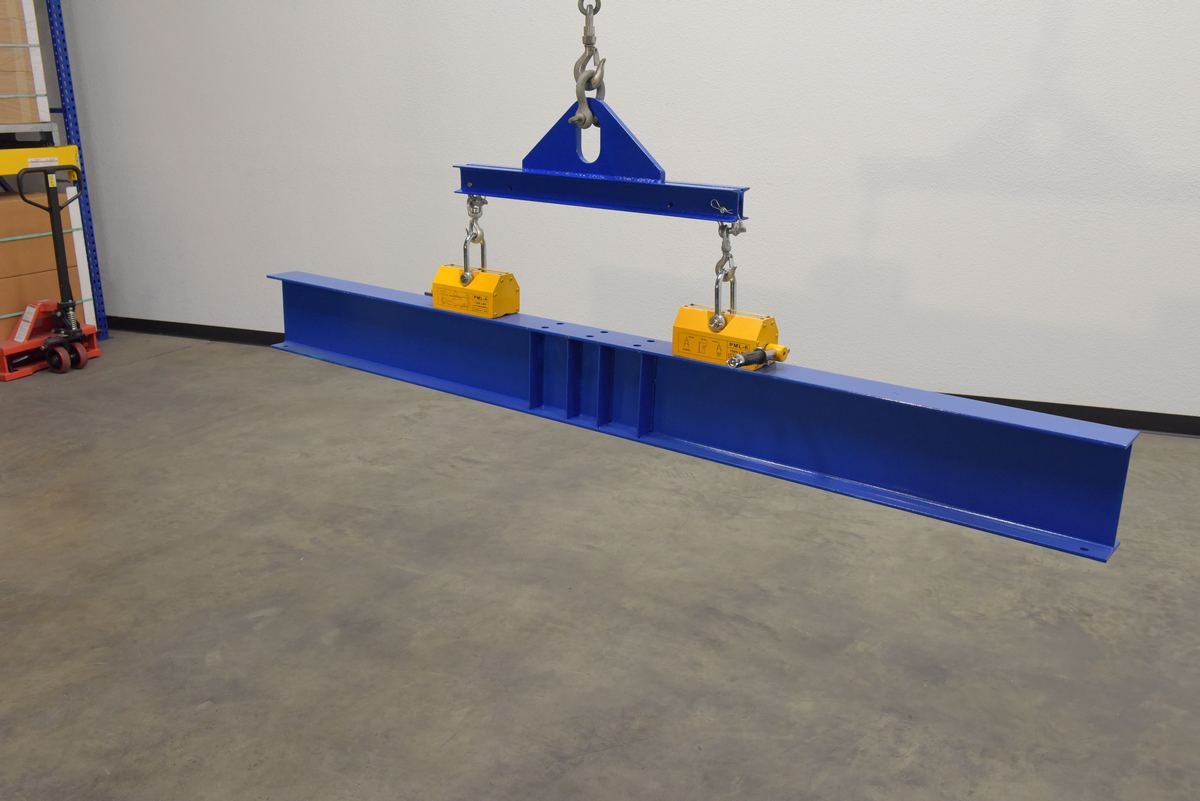

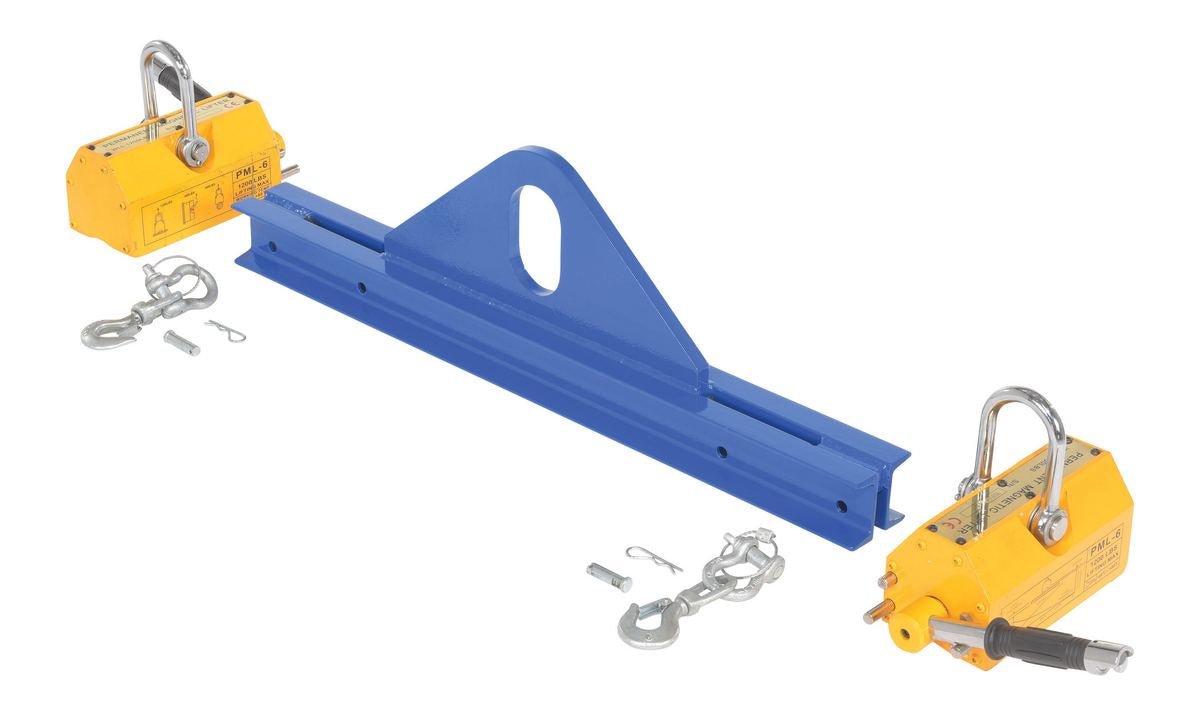

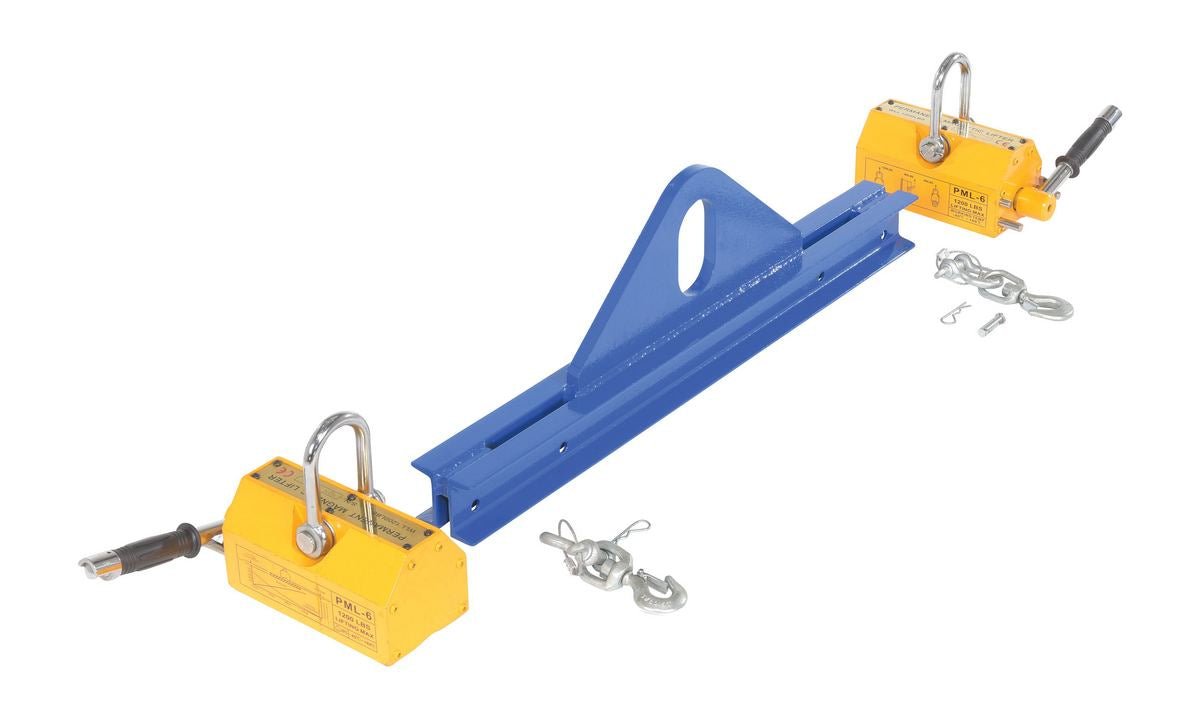

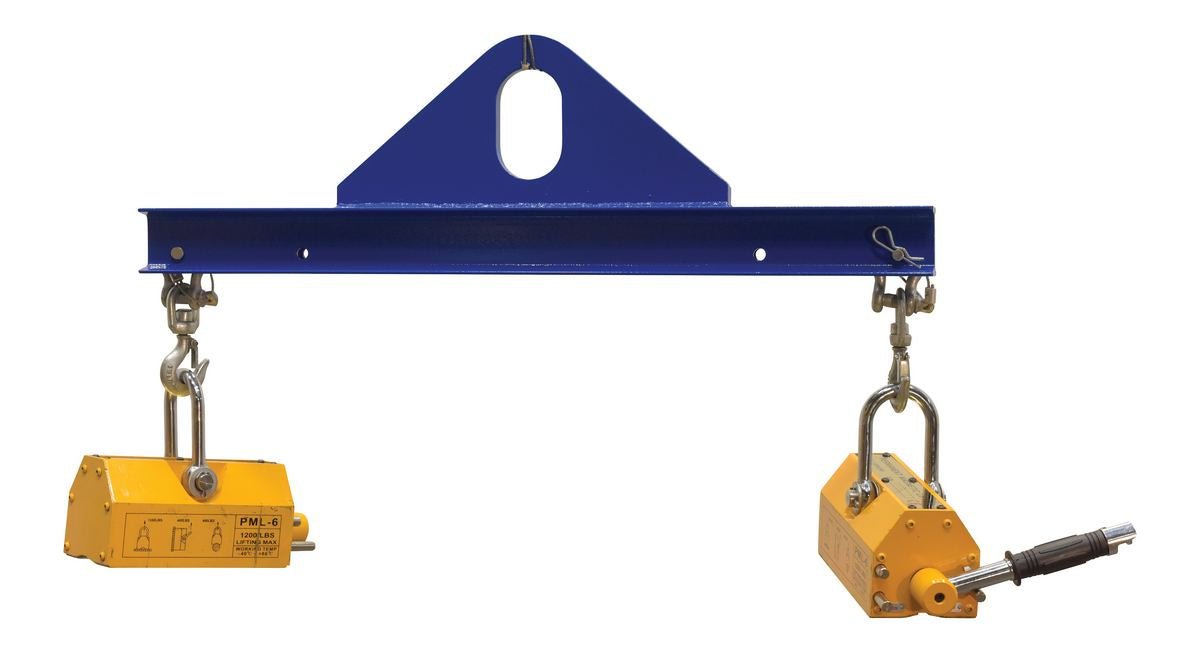

This highly versatile magnetic spreader beam is a perfect solution for lifting various loads in spaces with limited headroom. The built - in magnets make it a breeze to lift and transfer products between workstations. Its powder - coated finish reduces abrasion and enhances the unit's durability and lifespan. Key features include: designed to handle uneven and awkward loads; large capacity for moving both big and small objects; comes with magnets for versatile lifting; made of steel for heavy - duty performance. All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Shown weights are approximate shipping weights.
| Magnetic Spreader Beams |
| Model | Min./Max.
Spread | Headroom | Capacity
(lbs) | Wt.
(lbs) |
| SBM - 10 - 3 - ML | 21'/33' | 20 15/16' | 1,000 | 114 |
| SBM - 10 - 4 - ML | 33'/45' | 20 15/16' | 1,000 | 122 |
| SBM - 10 - 6 - ML | 45/69' | 20 15/16' | 1,000 | 174 |
| SBM - 10 - 8 - ML | 69'/93' | 20 15/16' | 1,000 | 186 |
| SBM - 10 - 10 - ML | 93'/117' | 20 15/16' | 1,000 | 222 |
| SBM - 10 - 12 - ML | 117'/141' | 20 15/16' | 1,000 | 293 |
| SBM - 20 - 3 - ML | 21'/33' | 22 11/32' | 2,000 | 122 |
| SBM - 20 - 4 - ML | 33'/45' | 22 3/8' | 2,000 | 130 |
| SBM - 20 - 6 - ML | 45'/69'' | 22 3/8' | 2,000 | 246 |
| SBM - 20 - 8 - ML | 69'/93' | 22 3/8' | 2,000 | 302 |
| SBM - 20 - 10 - ML | 93'/117' | 22 3/8' | 2,000 | 331 |
| SBM - 20 - 12 - ML | 117'/141' | 22 3/8' | 2,000 | 375 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate

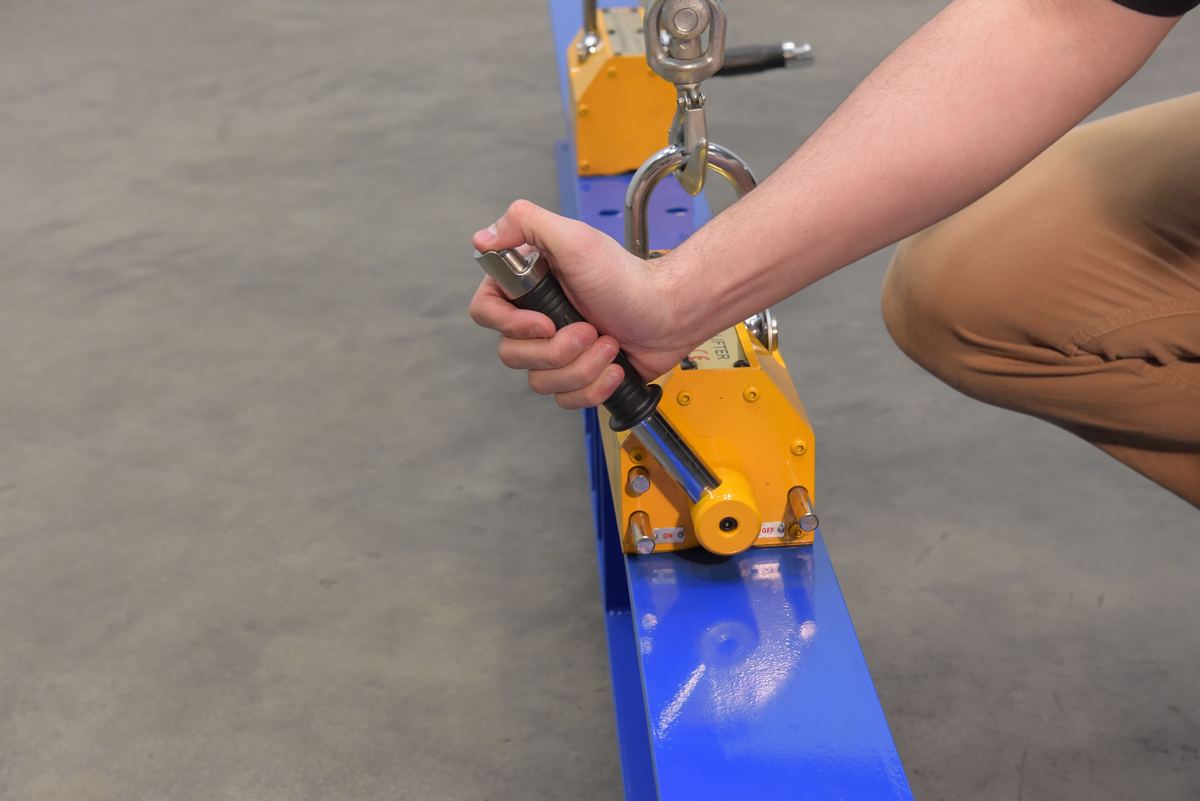

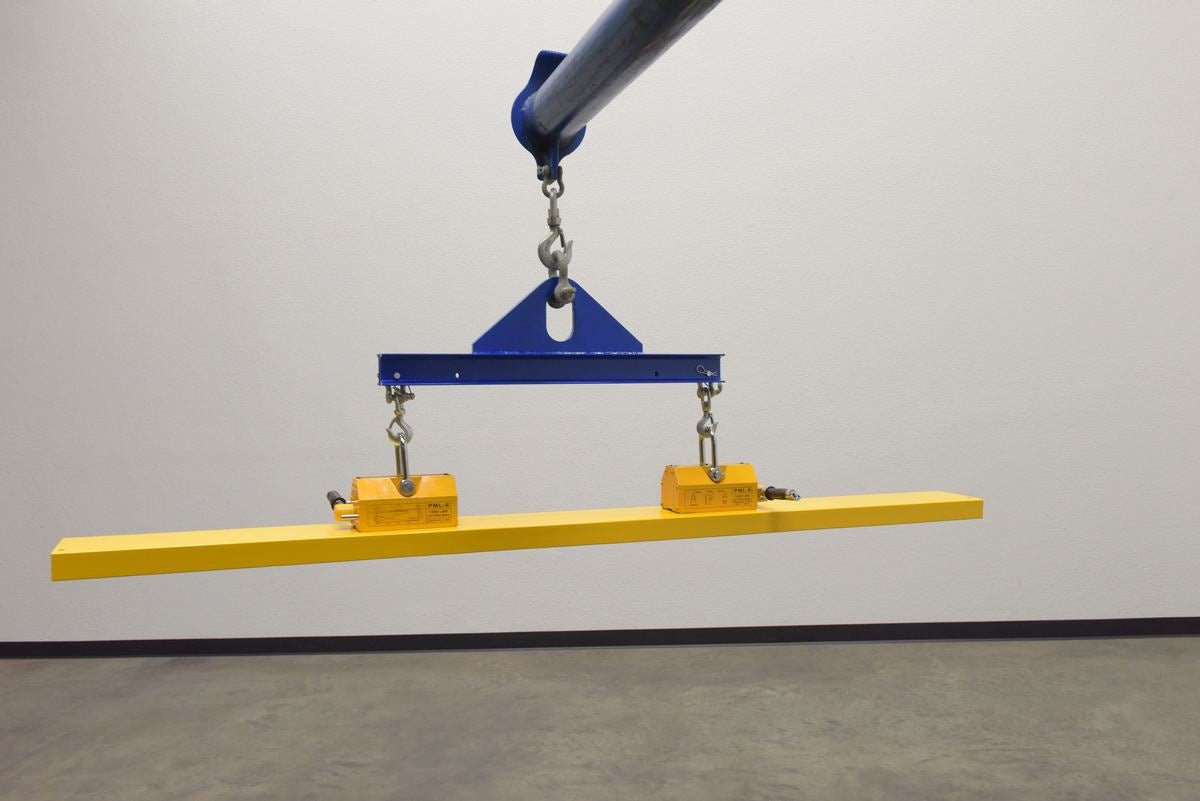

Using the magnetic spreader beam is quite straightforward. First, make sure the load is within the capacity of the specific model you're using. Then, position the spreader beam over the load and activate the magnets. The magnets will securely hold the load, allowing you to lift and transfer it to the desired workstation. When it comes to maintenance, regularly check the magnets for any signs of damage or wear. Clean the powder - coated surface with a mild cleaner to keep it in good condition. Also, pay attention to the shipping weights and measurements, as they're approximate and there might be slight variations. Always handle the spreader beam with care, especially when dealing with heavy loads. If you have any concerns about the approval drawing, warranty, or testing certificate, refer to the provided information.
