Description

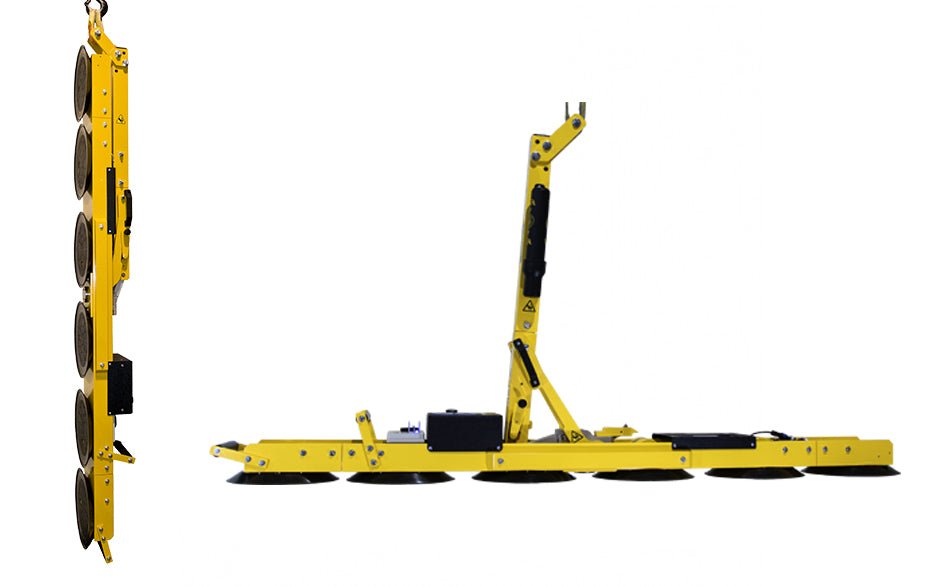

The MRTALPCH611LDC is a Manual Rotator/Tilter with a low - profile pad channel, designed for lifting and transporting heavy materials. It's custom - made upon order, usually taking 5 - 6 weeks for delivery. This Powr - Grip® rotator/tilter comes with a dual vacuum system, a 1100 lbs [500 kg] load capacity, removable pad frame extensions, and an extremely low profile, offering maximum versatility and ease of use in tight work areas. The standard pad spread is 79 - 1/4' x 12' [2010 x 305 mm] with 6 pads and 54' x 12' [1371 x 305 mm] with 4 pads. It has 6 / 11' [28 cm] dia. lipped pads. The load capacity is 1100 lbs [500 kg] with 6 pads and 736 lbs [334 kg] with 4 pads. The lifter weighs 130 lbs [59 kg] and operates on 12 volts DC, 10 amps. It allows for manual 180° edgewise rotation with 3 - position locking and assisted manual 90° tilt between upright and flat, with automatic latching in the upright position. The profile thickness is 7 - 3/4' [197 mm] (excluding the load). Standard features include an adjustable - position lift spool, dual vacuum system, low vacuum warning buzzer, green lift light, on - board battery and charger, battery energy gauge, vacuum gauges, vacuum line filters, vacuum reserve tanks, spring - mounted vacuum pads, removable pad frame extensions, and blow - off for quick release. Load capacity is 1100 lbs [500 kg], per - pad capacity is 175 lbs [79 kg], and the pad model is G3370. It has standard 12 VDC power at 10 amps, with a charger voltage of 100/120/240, 50/60 Hertz, and 1 - phase. The duty cycle is 55 lifts per hour. Manipulation is continuous, with 90° tilt (assisted manual) and 180° rotation (manual). The max pad spread (L) is 79.25', min is 12', max pad spread (W) is 70.25', min is 12', max height is 83.25'. The min and max ambient and load temperatures are 32° F and 100° F respectively. WARNING: Cancer and/or Reproductive Harm - www.p65Warnings.ca.gov
Using the MRTALPCH611LDC Manual Rotator/Tilter is easy. First, make sure the battery is fully charged. You can check the battery energy gauge. When lifting, select the appropriate number of pads according to the weight of the load. With 6 pads, you can handle up to 1100 lbs [500 kg], and with 4 pads, up to 736 lbs [334 kg]. Attach the pads to the heavy material and use the controls to create a vacuum. You'll see the green lift light when it's ready to lift. For rotation, manually turn it up to 180° edgewise and lock it in one of the 3 positions. For tilting, use the assisted manual feature to tilt it 90° between upright and flat. When you're done, use the blow - off feature for a quick release. As for maintenance, regularly check the vacuum system, including the vacuum gauges, filters, and reserve tanks. Keep the battery charged using the charger with the appropriate voltage (100/120/240) and Hertz (50/60). Make sure to operate it within the temperature range of 32° F to 100° F for both the ambient and the load. Also, be aware of the warning about cancer and reproductive harm.
