Pallet Forks – 6,000 Lbs. Capacity Wide Frame Hd

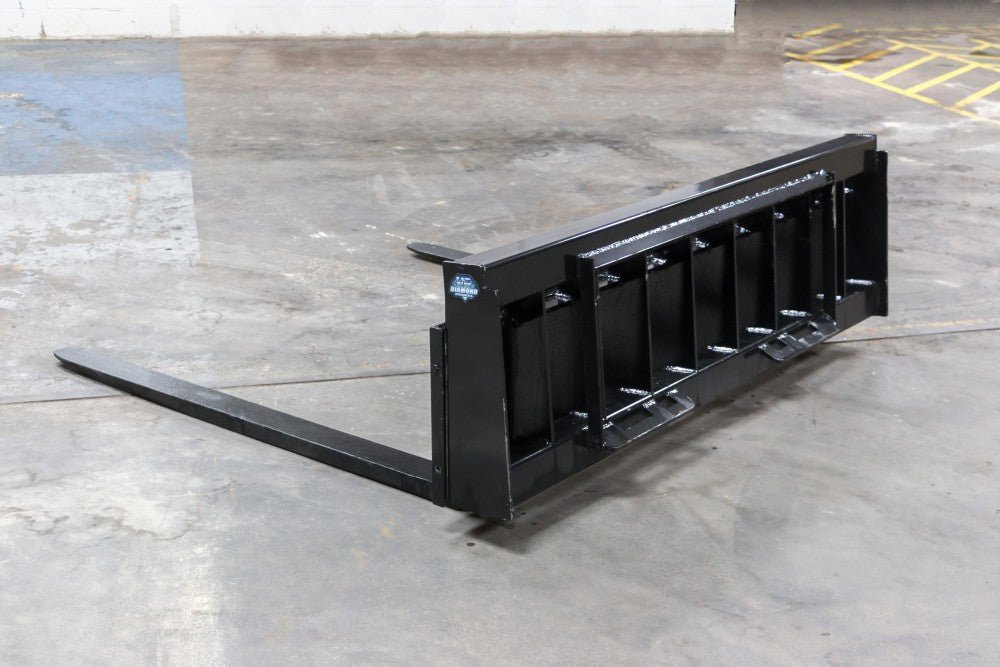

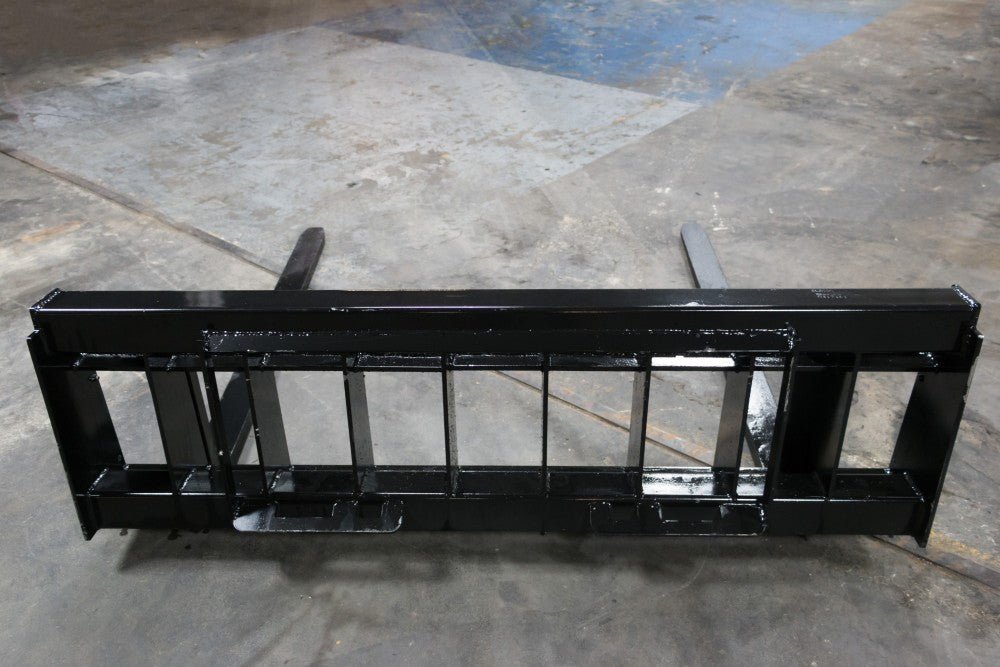

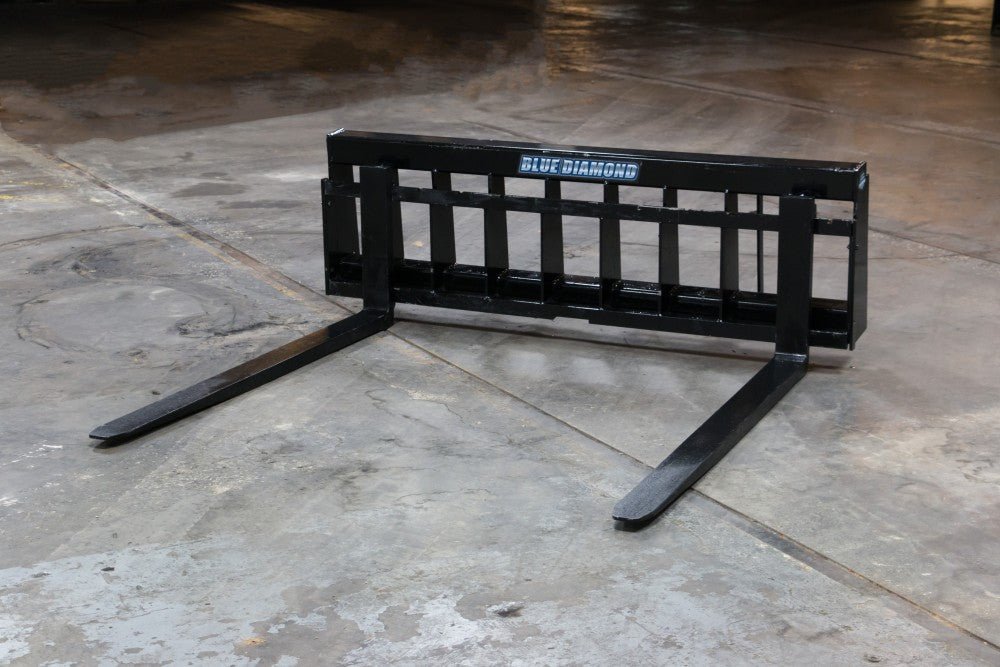

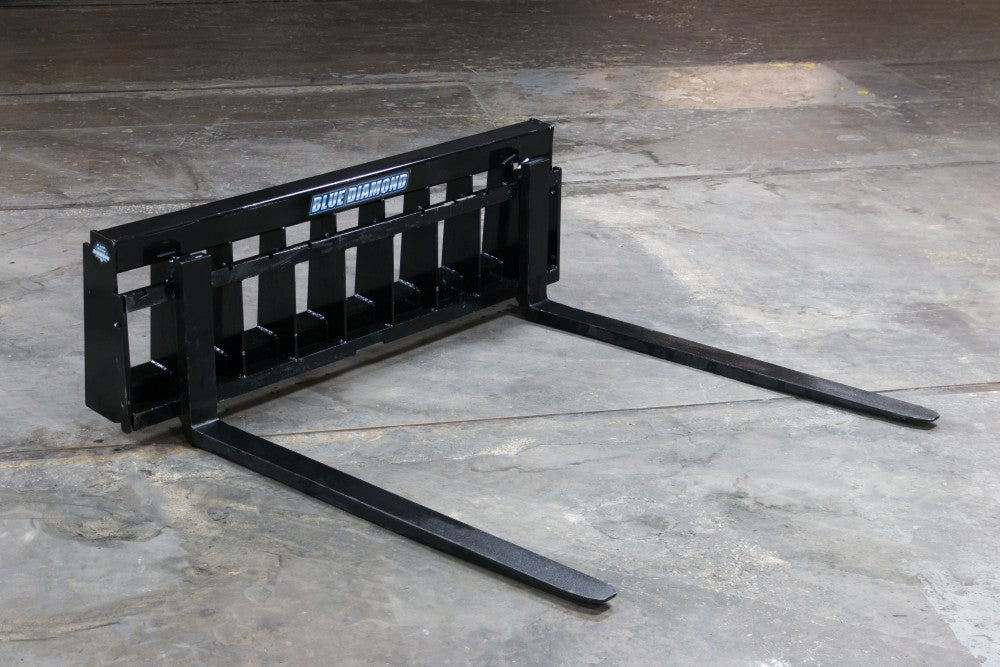

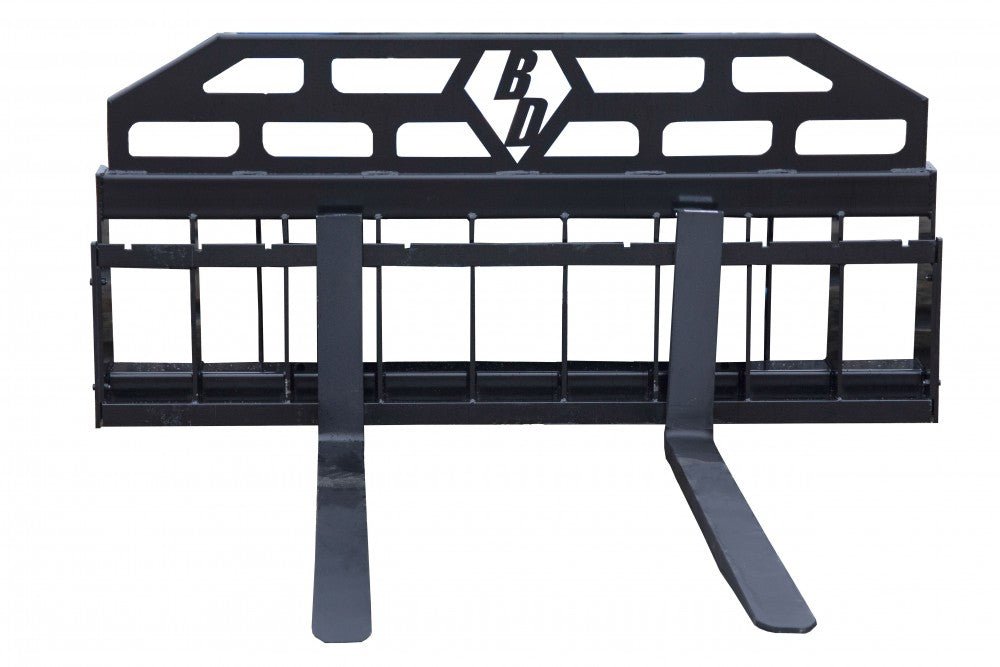

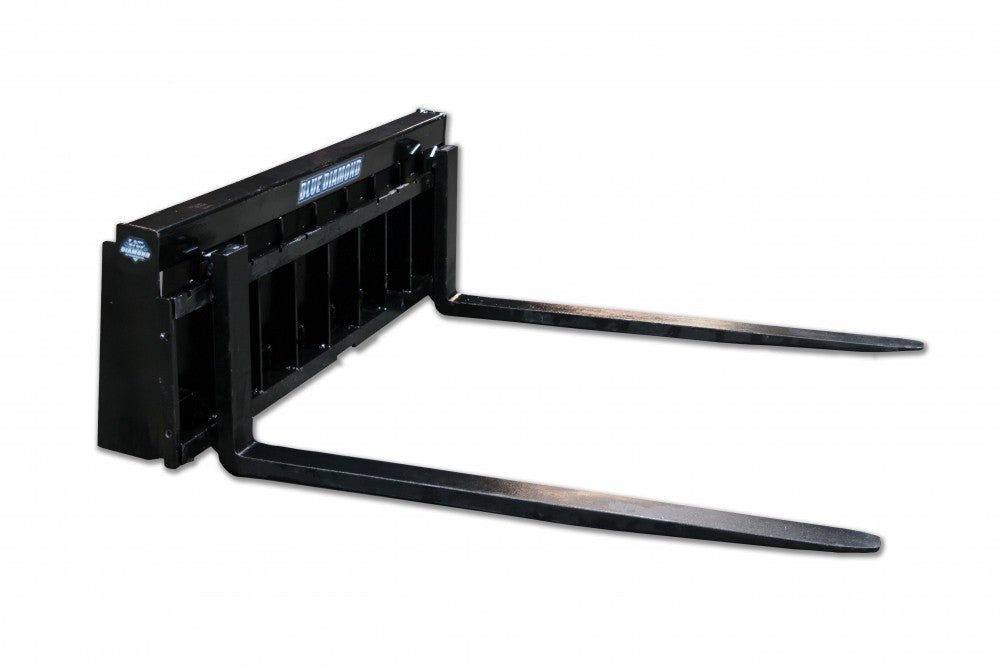

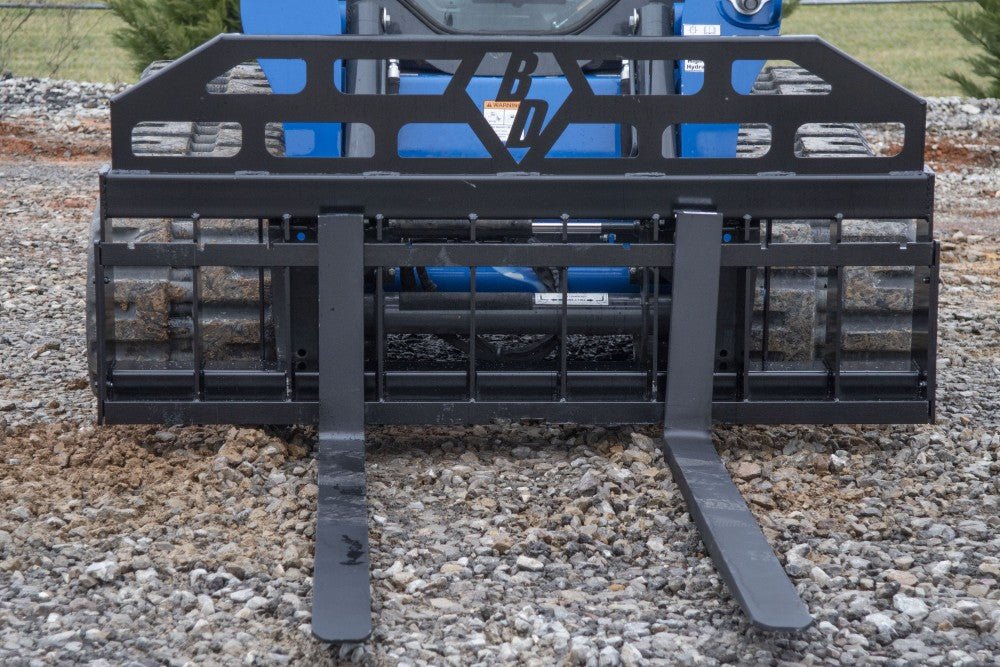

The Blue Diamond® Wide Frame Heavy Duty Pallet Forks for skid steers or tractors are ideal for handling wide loads. You can get widths up to 72 inches and tines up to 72 inches long. Without a back guard, they offer maximum visibility and flexibility, perfect for working in tight spaces, especially near ceilings. These forks have a heavy-duty construction and a 6,000 lb load rating. A backrest is available upon request, though it may take longer to deliver. Here are some product models: Model 314025 (Pallet Fork W/Backrest) has 72' X 1 3/4' tines, a 5,500 lbs lift capacity, and weighs 788 lbs. Model 314027 (Pallet Fork W/Backrest) has 60' X 1 3/4' tines, a 5,500 lbs lift capacity, and weighs 720 lbs. Model 314028 (Pallet Fork) has 60' X 1 3/4' tines, a 5,500 lbs lift capacity, and weighs 670 lbs. Model 314029 (Pallet Fork) has 72' X 1 3/4' tines, a 5,500 lbs lift capacity, and weighs 738 lbs. Check the PALLET FORKS SPEC SHEET for more details.

Using these pallet forks is easy. First, attach them to your skid steer or tractor properly. Make sure the connection is secure. When handling loads, keep in mind the weight limit of 6,000 lbs. For models with tines of different sizes, choose the right one according to your load width. If you work in tight spaces, the lack of a back guard will give you better visibility. But be careful not to hit anything with the tines. When you request a backrest, just be patient as it may take a while to arrive. As for maintenance, regularly check the tines for any signs of wear or damage. Clean the forks after each use to prevent rust. Keep them in a dry place when not in use.
