Pipe Clamp Saddle

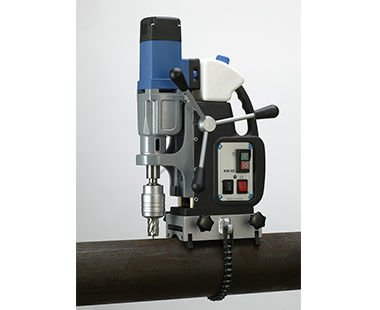

Securely and Precisely Clamp Magnetic Drills on Pipes

• Perfect for pipe - clamping applications that need flexibility
• Compatible with pipes from 3 - 1/4' to 20' in diameter
• Easy to use and highly flexible
• Swivelling V - blocks adapt well to the pipe's shape

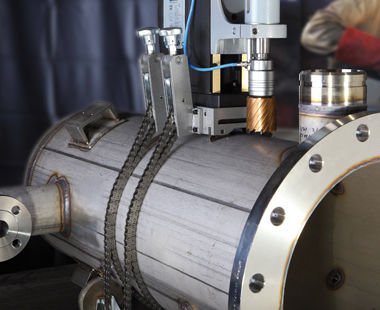

• Heavy - duty tension chains firmly attach the clamps to the drilling piece
• You can easily and safely adjust the drilling position

Specifications

Part No: ZRO 250	Part No: ZRO 500
Pipe diameters: 3 - 1/4' - 10'	Pipe diameters: 6' - 20' (extension chain available)
Chain length: 35 - 1/2'. If using on pipe larger than 10', need 1 qty. ZRO 001 extension chains.	Chain length: 65'. If using on pipe larger than 20', need 2 qty. ZRO 001 extension chains.
Maximum Magnet Dimensions: 6 - 5/8' L x 3 - 1/16' W	Maximum Magnet Dimensions: 9' L x 4 - 3/8' W

More Info

• Catalog Page: Clamping Devices (PDF)

• Hydraulic Impact Wrenches Schematics (PDF)

• Operating Manual: ZRO 500 Pipe Saddle Clamp (PDF)

Using this pipe clamp saddle is a breeze. First, choose the right part number according to your pipe diameter. Place the clamp on the pipe, and use the swivelling V - blocks to fit it to the pipe's contour. Then, use the heavy - duty tension chains to securely attach the clamp to the pipe. You can easily adjust the drilling position to where you need it. When it comes to using the extension chains, if your pipe is larger than 10' for the ZRO 250 part, add one ZRO 001 extension chain. For the ZRO 500 part, if the pipe is larger than 20', add two ZRO 001 extension chains. As for maintenance, regularly check the tension chains for any signs of wear and tear. Keep the clamp clean and dry to prevent rust. Make sure to refer to the operating manual (ZRO 500 Pipe Saddle Clamp) for more detailed information.
