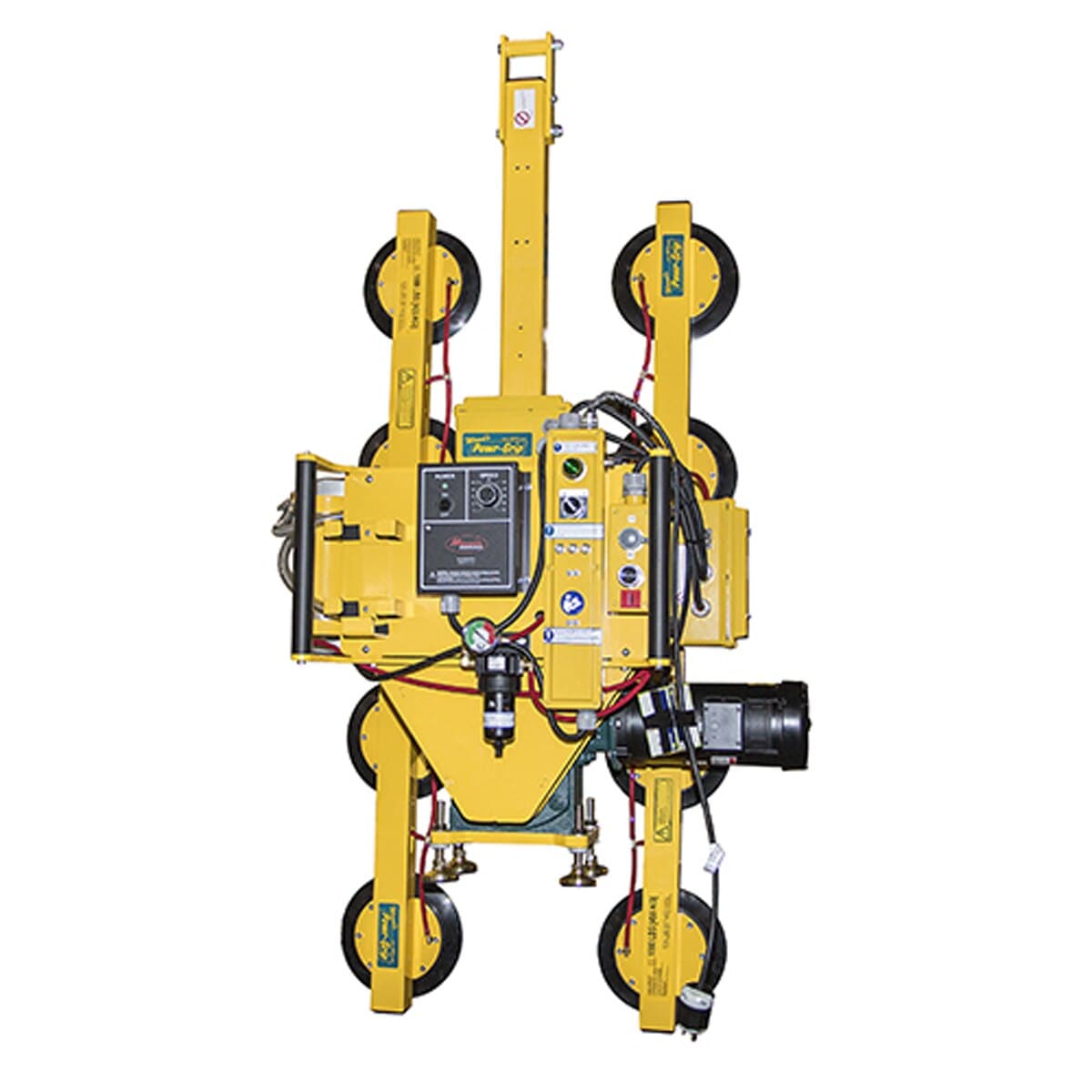

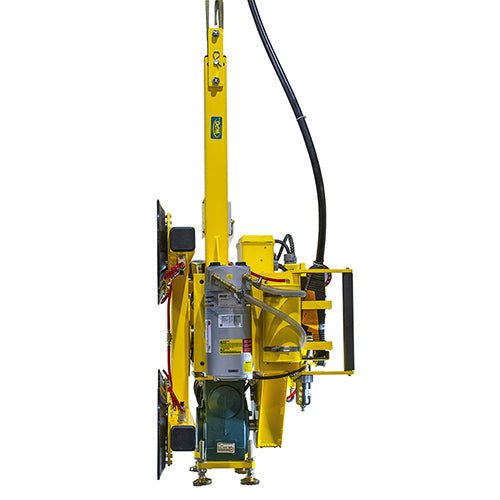

The Power Rotator 1000 (AC)/Tilter 1000 (AC) is designed for effortless heavy material lifting. DC power is available but only upon special order. Made to order, it typically takes 5 - 6 weeks for delivery. This lifter offers powered 360° rotation, adjustable rotation speed, and quick attach/release times, making it perfect for high - output production lines. It comes with optional High - Duty Tilt, Vacuum Loss Warning Buzzer, and DC Back - Up System. The standard pad spread is 29 - 1/4' x 59 - 1/4' [740 x 1502 mm], with 8 vacuum pads of 9' [23 cm] diameter. It has a maximum load capacity of 1000 lbs [455 kg] and weighs 600 lbs [273 kg]. The standard operating power is 120 volts AC, 60 hertz, 16 amps. Apply and release times are approximately 4 seconds and 3 seconds respectively. The load can move with power rotation 360° edgewise with adjustable speed control and power tilt 90° between upright and flat. The maximum and minimum rotation speeds are about a full turn in 7 seconds and 30 seconds respectively, and the 90° tilt takes about 13 seconds. It can perform 41 tilts per hour. Standard features include a green lift light, movable control pendant, vacuum gauge, vacuum reserve tank, vacuum line filter, spring - mounted vacuum pads, twist - lock electrical plug, and blow - off for quick release. WARNING: Cancer and/or Reproductive Harm - www.p65Warnings.ca.gov
Using your Power Rotator 1000 (AC)/Tilter 1000 (AC) is straightforward. First, make sure it's connected to the right power source, which is 120 volts AC, 60 hertz, 16 amps. Then, adjust the rotation speed according to your needs for lifting heavy materials. When you're ready to lift, use the movable control pendant to operate the lifter. The vacuum pads will attach to the material quickly, usually in about 4 seconds, and release in around 3 seconds. You can rotate the load 360° edgewise and tilt it 90° between upright and flat. As for the tilt, it can do 41 tilts per hour. Keep an eye on the green lift light and the vacuum gauge to ensure everything is working properly. For maintenance, check the vacuum line filter regularly to make sure it's clean. Also, look at the spring - mounted vacuum pads for any signs of wear. If you need DC power, you'll have to place a special order. Remember, this product is made to order, so expect a 5 - 6 week lead time. And don't forget, this product may cause cancer and/or reproductive harm, so follow the safety guidelines at www.p65Warnings.ca.gov.
