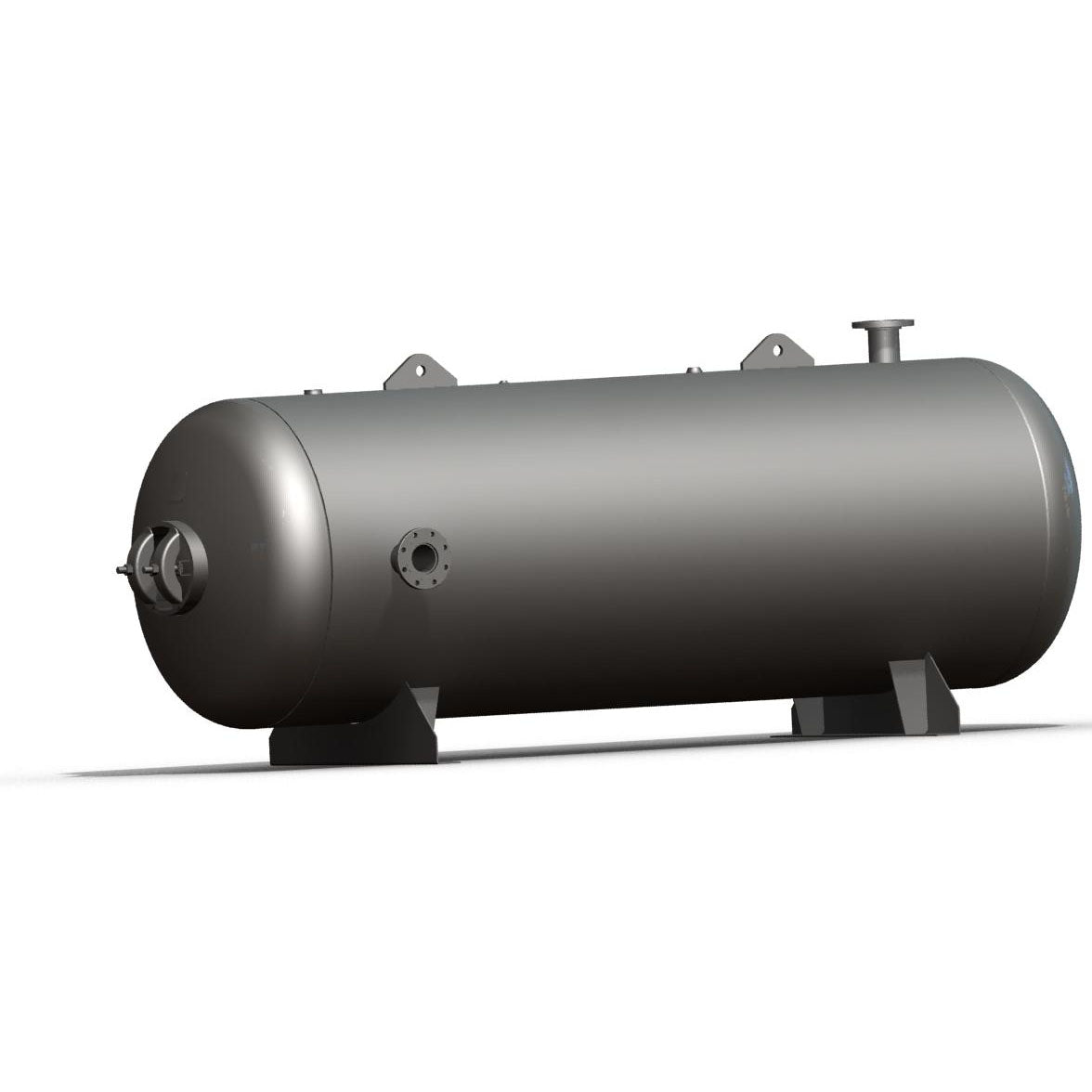

120ARH200-TP - 120 Gallon Horizontal Air Receiver Tank

This 120-gallon horizontal air receiver tank comes with a top plate and is ASME coded. It has a working pressure of 200 psi. The tank only has an exterior primer coat. Measuring 24 inches in diameter and 67 inches long, with legs adding 2 - 1/4 inches to the overall height (24 - 1/4 inches in total). It weighs 382 pounds and has an interior volume of 16 cubic feet. Due to its weight, please contact us online or at 800 - 342 - 3876 to place an order. Check the spec sheet for opening sizes and locations.

Using this air receiver tank is straightforward. First, make sure it's placed on a flat and stable surface to avoid any tilting. When connecting it to your air system, follow the standard connection procedures. Since it has a high working pressure of 200 psi, always be cautious when operating and never exceed the specified pressure. As for maintenance, periodically check the exterior primer coat for any signs of damage or rust. If you notice any issues, you may need to touch - up the primer. Also, check the tank's interior volume and ensure there are no blockages. Remember, due to its heavy weight of 382 pounds, if you need to move it, use proper equipment and techniques. For any questions about the opening sizes and locations, refer to the spec sheet.
