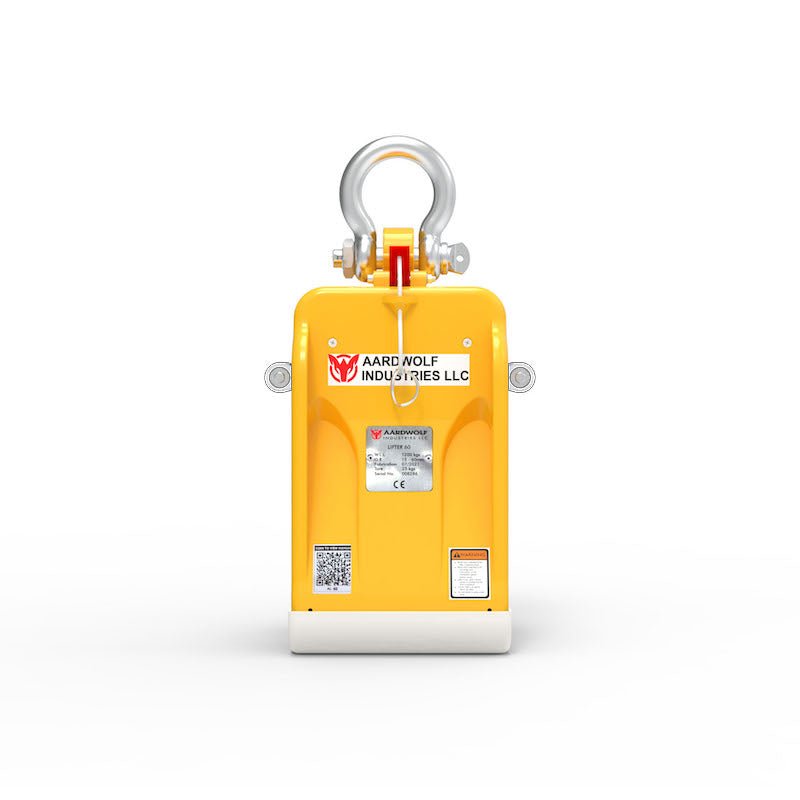

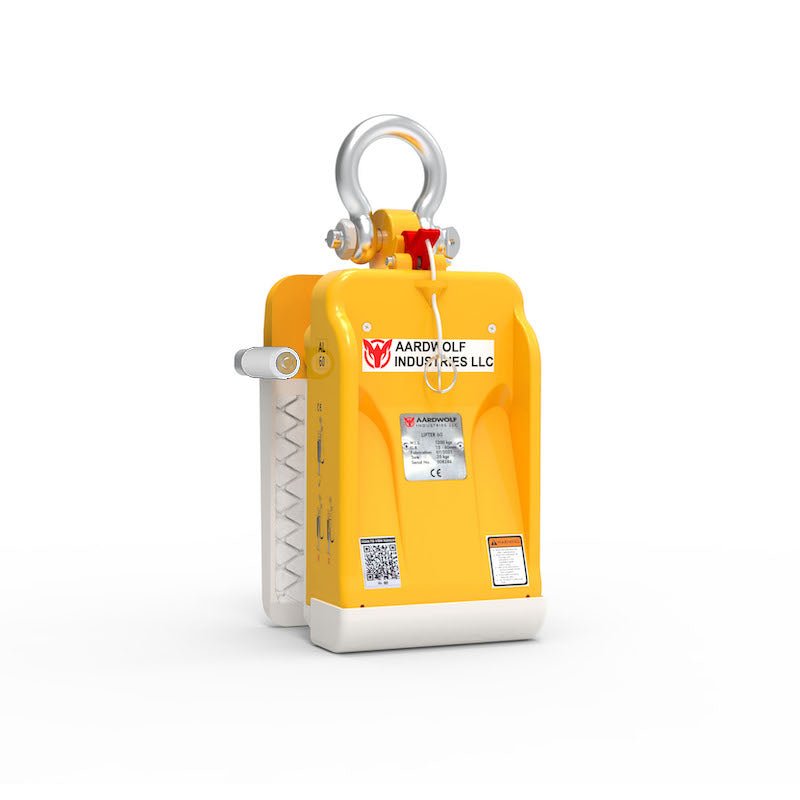

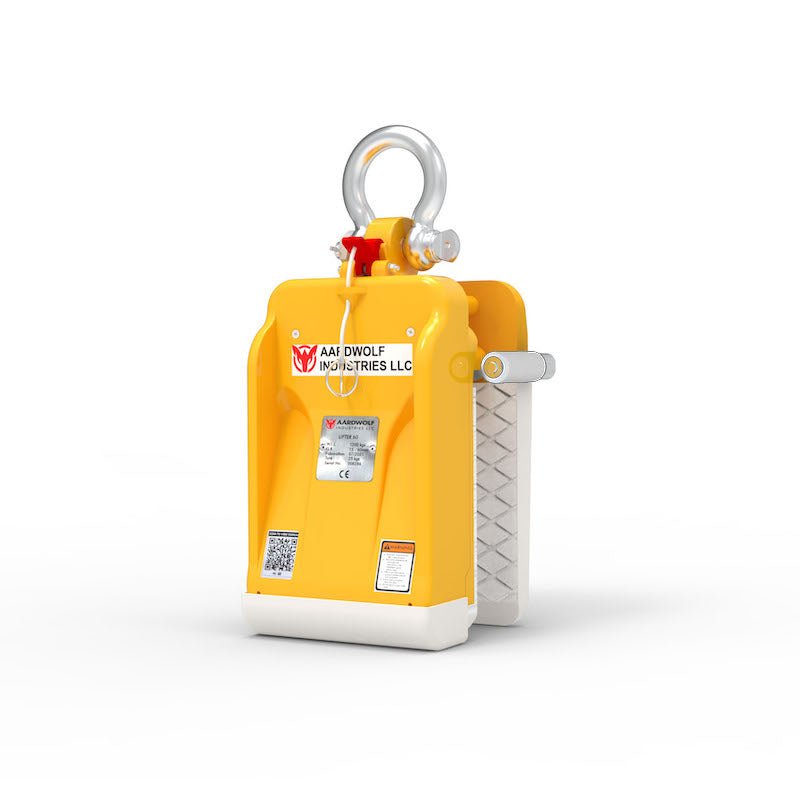

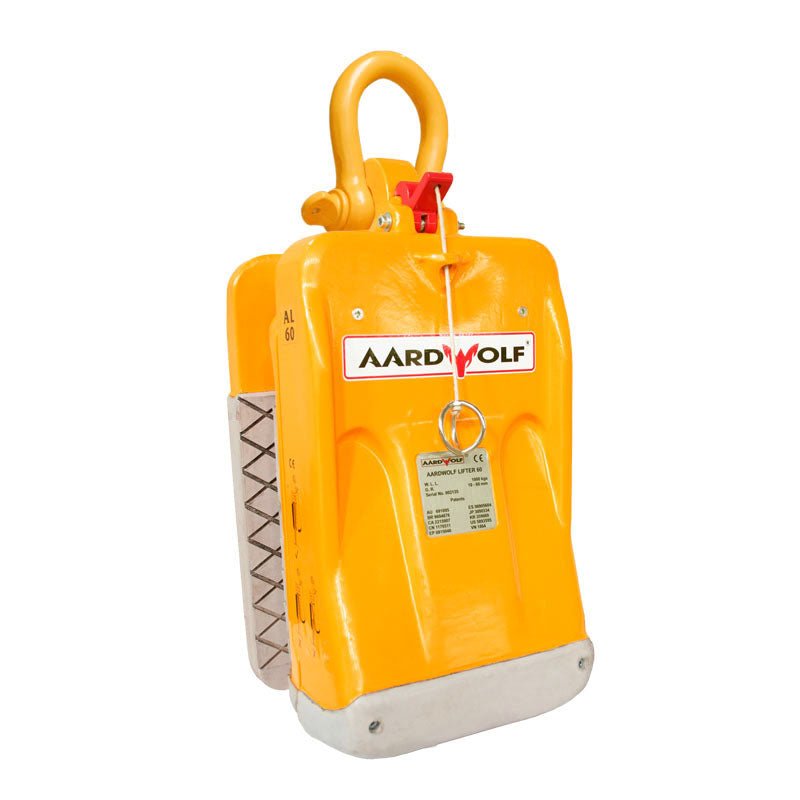

The Aardwolf 60 Slab Lifter is a perfect forklift attachment for moving heavy slabs. It has a gripping range of 0.6 - 2.4 inches, allowing it to handle various slab thicknesses with ease.
Designed to move heavy stone slabs, this slab lifter can move two 3 - cm stone pieces at once. Attached to a forklift, it's a great accessory for lifting and moving slabs. The Aardwolf Lifters feature a spring - loaded latch that automatically releases the lifter from the slab when it's fully lowered to the ground, enabling a one - man operation for lifting and lowering slabs.
- Compact Design: Its compact construction lets you lift closely packed stone slabs from racks and containers. Unlike scissor clamps, it can handle lower height slabs beside taller ones without any issue.
- Versatile Use: Ideal for construction work. With the clamping mechanism at the front of the slab, it allows panels to be placed close to walls.
- Enhanced Safety: It only requires a small movement of the slab to engage and grip, well below the over - balance angle, eliminating operator danger.
- Secure Grip: The Aardwolf clamps firmly hold marble and granite slabs. The Aardwolf 60 Slab Lifter has a force - multiplying factor of about 2.5 to 1.
- Single - Slab Operation: Designed to move one slab at a time.

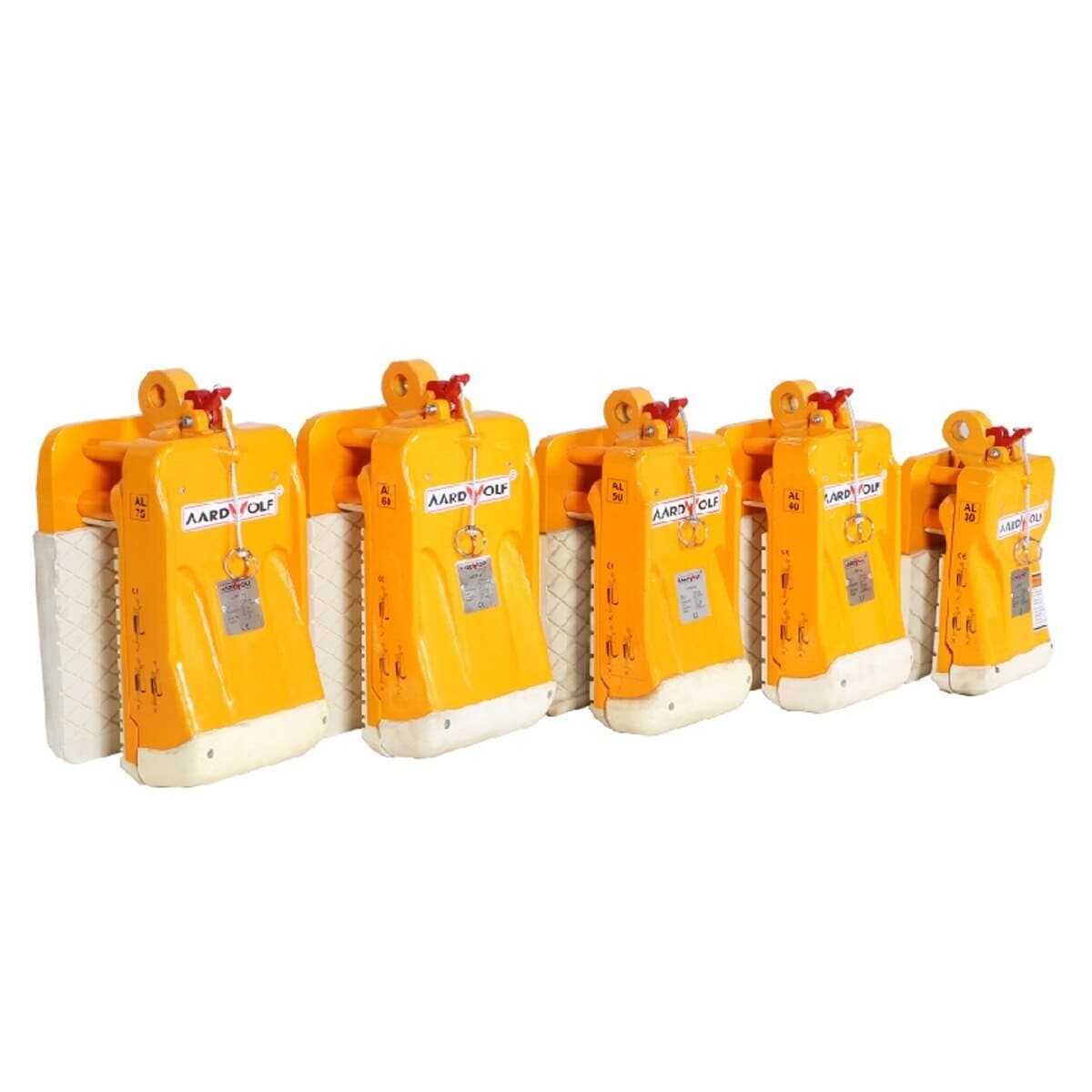

| Model | Grip Range | Working Load Limit | Net Weight | Gross Weight | Packing Dimensions |
| Lifter 30 Wide | 0.2'' - 1'' | 2646 | 45 | 47 | 17.3''x6.3x14.2'' |
| Lifter 50 | 0.4'' - 2'' | 2646 | 42 | 44 | 15''x8.3''x9'' |
| Lifter 50 - B | 0.4'' - 2'' | 2646 | 53 | 55 | 22.8''x7.3''x12.2'' |
| Lifter 60 | 0.6'' - 2'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' |
| Lifter 75 | 1'' - 3'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' |
| Lifter 50 (Auto) | 0.4'' - 2'' | 2646 | 42 | 44 | 15''x8.3''x9'' |
| Lifter 60 (Auto) | 0.6'' - 2'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' |
| Lifter 75(Auto) | 1'' - 3'' | 2646 | 55 | 57 | 16.5''x9''x9.8''
|
Using the Aardwolf 60 Slab Lifter is easy. First, attach it to your forklift properly. Then, position the lifter near the slab you want to move. Move the forklift slightly to engage the lifter with the slab. Once it grips firmly, you can lift and move the slab. When you lower the slab to the ground, the spring - loaded latch will automatically release the lifter.
For safety, always make sure the slab is within the gripping range of 0.6 - 2.4 inches. Avoid overloading the lifter beyond its working load limit of 2646. Also, keep in mind that the movement to engage the slab should be small to prevent any balance issues.
To maintain the lifter, regularly check the clamping mechanism for any signs of wear or damage. Lubricate the moving parts as needed. If you notice any problems, stop using the lifter and have it inspected or repaired.
