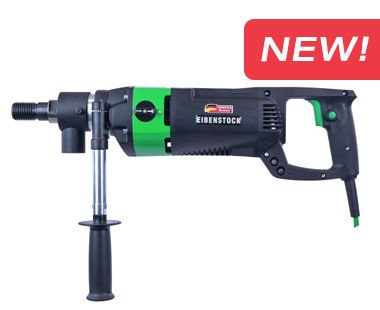

ESD 162 Dry Core Drill

Revolutionary Drilling Solution for Reinforced Concrete

• IHT soft impact technology enables faster drilling, less heat, longer tool life, and outstanding dust extraction.
• Perform dry drilling up to 8 inches in brick/block and 6 - 3/8 inches in reinforced concrete.
• New tech eliminates the need for water in reinforced concrete drilling, no messy slurry!

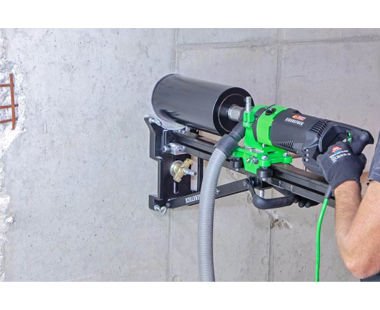

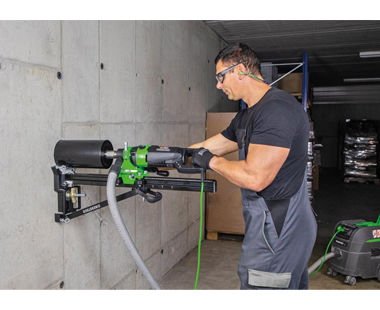

• Suitable for both hand - held and rig - guided drilling operations.
• Equipped with a dust extraction system to enhance user safety.

Specifications

• Motor Power: 19.5 Amp, 110 V
• Load Speeds (RPM): 0 - 1000 RPM
• Drilling Diameter: 6 - 3/8 inches / 8 inches
• Spindle Connection: 1 - 1/4 inches x 7 UNC | 5/8 inches X 11 UNC
• Collar Diameter: 60mm
• Weight: 15 lbs (motor only)

Using your ESD 162 dry core drill is easy. First, decide if you'll use it by hand or with a rig. For hand - held use, hold the drill firmly and start at a slow speed, gradually increasing to the desired RPM. When using a rig, make sure it's properly set up and secured. You can drill into brick or block up to 8 inches and reinforced concrete up to 6 - 3/8 inches without using water, thanks to the new technology. Remember, the dust extraction system is there to keep you safe, so always keep it on. As for maintenance, after each use, clean the drill and the dust extraction system. Check the motor power regularly and if you notice any issues, stop using the drill immediately. Also, make sure to store it in a dry place when not in use. This will help keep your drill in good condition and ensure long - lasting performance.
