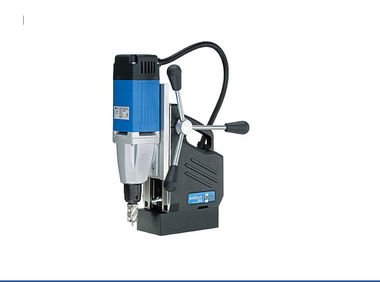

The MABasic 200 is a heavy - duty, single - speed workhorse built for purpose. It features a compact, lightweight and portable design, making it easy to carry around. The internal lubrication system, with an included oil bottle, ensures smooth operation. The controls are simply and ergonomically arranged for one - handed use. An emergency - off function provides safety: an electronic sensor shuts down the drill motor if the magnet loses contact with the material, protecting both the operator and the equipment. With a motor power of 8.2 Amp/110 Volt, it weighs 27 lbs. It has a stroke of 6 - 1/3' (3 - 1/3' with geared chuck), a hole capacity of 1 - 3/8' dia., and a twist drill capacity of 1/2' dia. The speed is 450 RPM, and the magnet base size is 6 - 5/8' L x 3 - 1/3' W. The dimensions are 12 - 1/4' H x 9' L x 6 - 1/2' W, and the magnetic force on a 1' plate is 3080 lbs. The arbor bore is a 3/4' Weldon Shank. You can access the operating manual (MABasic 200/400/450/850), schematics, catalog page of MABasic 200, and the complete portable magnetic drills catalog in PDF format.
Using the MABasic 200 is straightforward. First, make sure the drill is placed firmly on the material with the magnet in good contact. Connect it to a 110 - Volt power source. You can operate it with one hand thanks to the well - arranged controls. When drilling, the internal lubrication system with the included oil bottle will keep things running smoothly. Always keep an eye on the emergency - off function. If the magnet loses contact with the material, the drill motor will shut down automatically to protect you and the equipment. As for maintenance, regularly check the oil level in the lubrication system and refill when needed. Clean the drill after each use to remove debris. Store it in a dry place to prevent rusting. Refer to the operating manual (MABasic 200/400/450/850 in PDF) for more detailed information.
