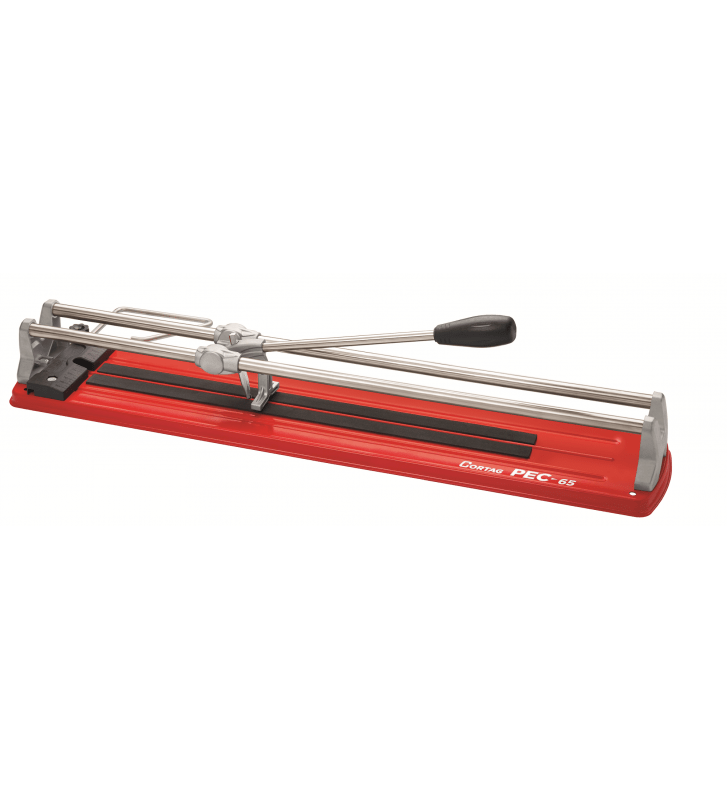

Cortag 26' PEC professional manual tile cutters are a great choice for cutting ceramic and porcelain tiles up to 10 mm thick. They have a unique feature: you can cut and separate tiles on the same base, no need to remove the tile. There are two models available. The Manual Tile Cutter - PEC 53 (Code 60894) has dimensions of C = 685 mm, H = 95 mm, L = 150 mm, with a master packaging quantity of 2. Its unit package dimensions are 700 mm x 160 mm x 105 mm, and the maximum cut length is 530 mm. It can handle diagonal cutting of tiles up to 360 mm x 360 mm. The Manual Tile Cutter - PEC 65 (Code 61859) has C = 810 mm, H = 95 mm, L = 150 mm, also with a master packaging quantity of 2. Its unit package dimensions are 815 mm x 152 mm x 98 mm, and the maximum cut length is 650 mm. It can do diagonal cutting of tiles up to 460 mm x 460 mm. Both models have 80 mm Universal*/ 100 mm Universal/ Titanium scoring wheels for replacement.

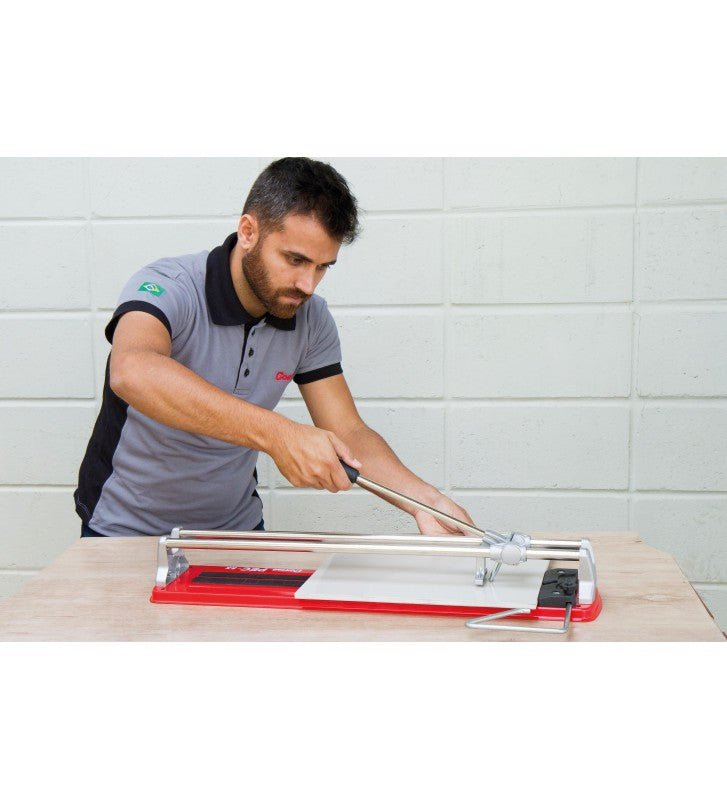

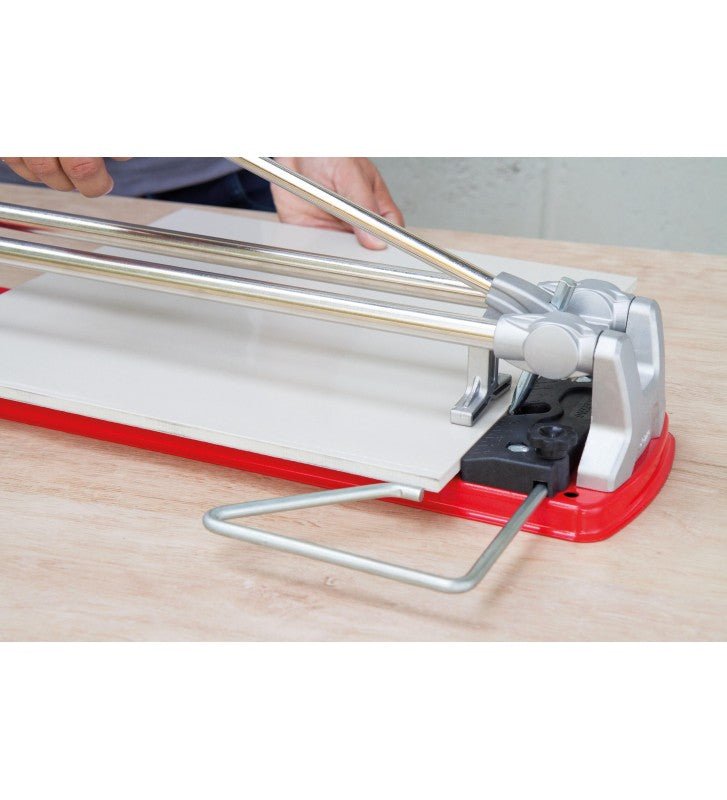

Using these tile cutters is easy. First, measure and mark the tile where you want to cut. Then, place the tile on the base of the cutter. Align the scoring wheel with the marked line and apply pressure to score the tile. After scoring, use the separating mechanism on the same base to break the tile along the scored line. When using, make sure the tile is properly placed and aligned to get a clean cut. Always wear safety goggles to protect your eyes from tile chips. For maintenance, keep the cutter clean after each use. Wipe off any dust or debris. Check the scoring wheels regularly. If they are worn out, replace them with the available 80 mm Universal*, 100 mm Universal, or Titanium scoring wheels.
