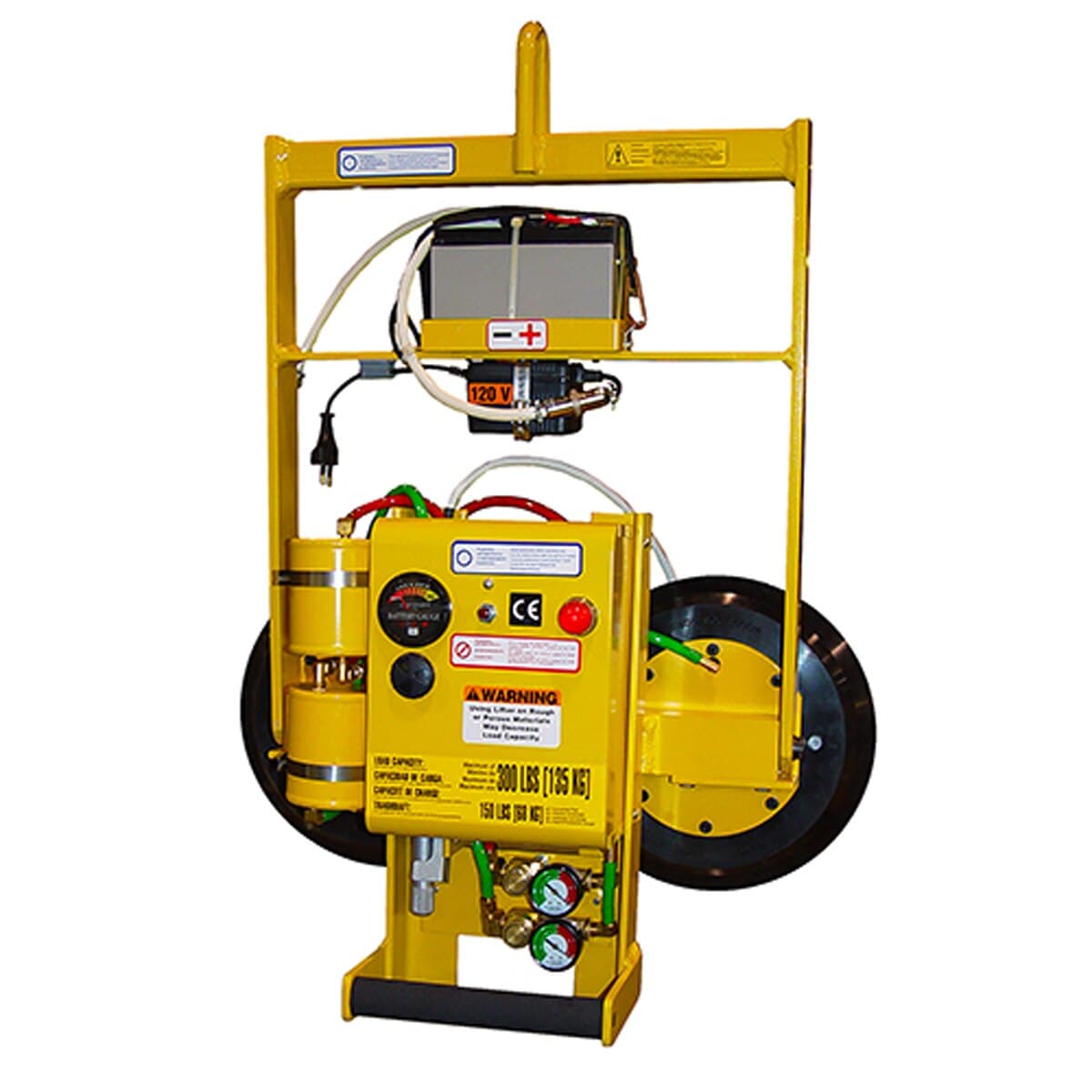

Manual Tilter 300 - MT2 Lifter Series

These lifters in the MT2 Lifter Series feature quick attach and release, allowing a single operator to handle heavy loads ergonomically. Now equipped with Intelli - Grip Technology®, it automatically monitors vacuum and power systems. This maximizes safety and efficiency while making maintenance and repairs easier. The standard pad spread is 11' x 11' [28 cm x 28 cm]. There are 2 vacuum pads with a 10' [25 cm] diameter and lipped design. The maximum load capacity is 300 lbs [135 kg], and the lifter weighs 60 lbs [28 kg]. It operates on 12 volts DC, 10 amps (other voltages available). The apply and release times are about 3 seconds each. It has a manual tilt of 90° between upright and flat. Standard features include an on - board battery and charger, battery energy gauge, low vacuum warning light and buzzer, vacuum gauge, vacuum line filter, and vacuum reserve tank. WARNING Cancer and/or Reproductive Harm - www.p65Warnings.ca.gov

Using the MT2 Lifter Series Manual Tilter 300 is straightforward. First, make sure the lifter is charged if using the battery - operated option. Connect it to the load using the quick - attach feature. The Intelli - Grip Technology will automatically monitor the vacuum and power systems to keep everything running smoothly. When you're ready to release the load, use the quick - release function. For safety, always check the low - vacuum warning light and buzzer. Don't operate the lifter in temperatures below 32°F or above 100°F. To maintain the lifter, regularly check the vacuum line filter and the battery energy gauge. If you notice any issues with the vacuum or power systems, refer to the manual or contact customer service. Also, keep in mind the product's load capacity of 300 lbs [135 kg] and don't exceed it.
