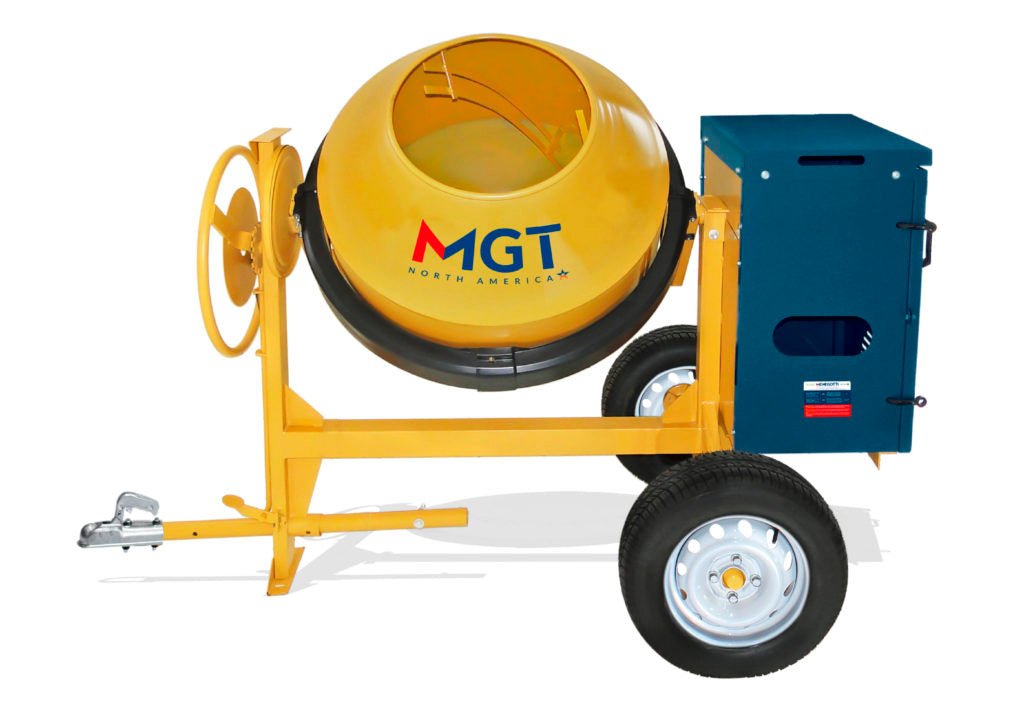

Menegotti Concrete Mixer HEAVY DUTY 11 CuFt Professional

This versatile equipment is designed to handle various production capacities, suitable for both small - scale and large - scale projects.

It's perfect for self - employed professionals and cement artifact companies.

Key Features of the Concrete Mixer:

• Easy and quick maintenance. The segmented ring gear, made up of six interchangeable parts, allows for better adjustment with the pinion and cost - effective gear replacement.
• The balanced center of gravity with the chassis ensures high efficiency and reduces engine stress.
• Reinforced chassis and yoke arm enhance impact resistance and enable operation on uneven ground.
• The drum base is reinforced with a 1/4” thick steel plate.
• The well - designed drum can hold up to 1½ bags of cement, increasing production capacity.
• The efficient paddle design improves the quality of the concrete mix.

Specs

Model	11 Cu Ft	7 Cu Ft
Total Drum Volume	14 Cu Ft	9 Cu Ft
Output Capacity (Mixed)	11 Cu Ft	7 Cu Ft
Weight without Engine	485 Lbs	458 Lbs
Drum Thickness	12g 5/64''	12g 5/64''
Flywheel Protection	Steel Plate	Steel Plate
Dimensions (L x W x H)	80 x 45 x 62 inches	73 x 53 x 62 inches
Wheels	Pneumatic Rim 13”	Pneumatic Rim 12”
Towing	Tow bar for Transport and Towing, with 2” ball Tow Hitch.	Tow bar for Transport and Towing, with 2” ball Tow Hitch.
Motor	Gasoline - 6.5 HP or 8.0 HP	Gasoline - 6.5 HP or 8.0 HP

Using this Menegotti concrete mixer is straightforward. First, choose the appropriate model according to your project needs. Before starting, make sure the engine is filled with the right amount of gasoline and the machine is on a stable surface. If the ground is uneven, the reinforced chassis and yoke arm can handle it well. When loading materials into the drum, don't exceed its capacity of 1½ bags of cement. The efficient paddle design will ensure a high - quality mix. After use, clean the drum thoroughly to prevent cement from hardening. The maintenance is easy. The segmented ring gear can be adjusted and replaced easily if needed. Check the center of gravity balance periodically to keep the engine working efficiently. Also, inspect the drum base and the flywheel protection regularly for any signs of wear. And don't forget to check the wheels and the towing equipment if you plan to move the mixer.
