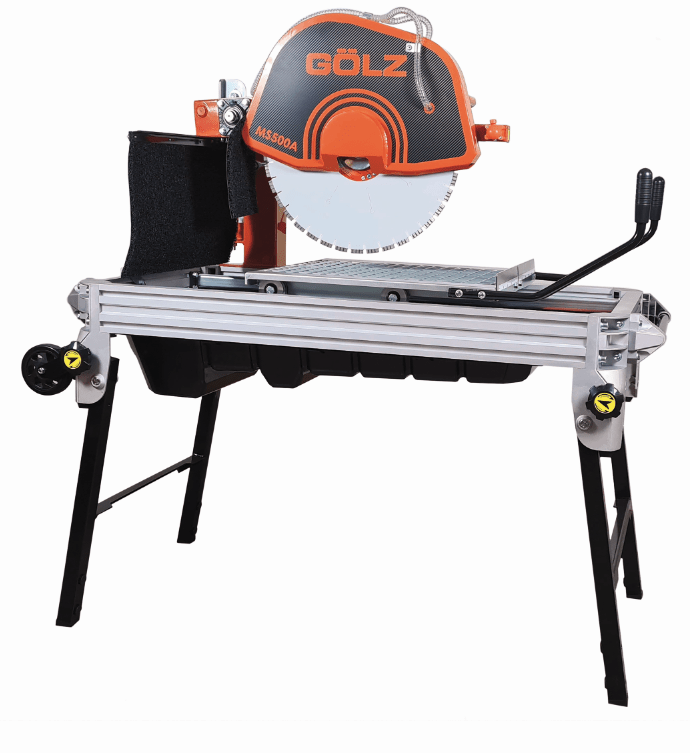

MS500A Professional Aluminum Masonry Saw

The MS500A Professional Aluminum Masonry Saw is a top - notch 20 - inch saw designed for excellent performance. It features an 820 - mm cutting length and a 170 - mm cutting depth, allowing for efficient and large - scale cutting. The huge cutting table, measuring 575 x 540 mm, provides a stable working surface. The removable water tub makes cleaning a breeze. Its foldable legs offer easy storage and portability. The parallel guide of the cutting head ensures precise cuts. The electric water pump with a quick - coupling design simplifies pump replacement. Changing the blade is easy thanks to the removable blade guard. A special water nozzle optimizes water cooling, and the transportation wheels make moving the saw around a piece of cake. Specifications include a 230 V, 50 Hz electric motor with 3 kW power and 2.2 kW rated power. The maximum cutting depth is 6.69 inches, and the maximum blade size is 20 inches. The arbor hole is 1.18 inches. It has a shaft speed of 1435 min - 1. The water pump is S2, 230 V, 50 Hz, 55 Watt. The blade flange size is 3.40 inches. The cutting table measures 22 x 21 inches, and the overall dimensions are 59 x 32.28 x 57 inches. It weighs 257 lbs.

Using the MS500A Professional Aluminum Masonry Saw is straightforward. First, make sure it's placed on a flat and stable surface. You can unfold the legs and position it where you need to work. Connect the electric water pump and fill the water tub. When you're ready to cut, use the parallel guide of the cutting head to ensure accurate cuts. Remember to turn on the water pump to keep the blade cool. When you need to change the blade, remove the blade guard. It's easy to do. After use, clean the saw. Empty and clean the removable water tub regularly to prevent dirt buildup. Store the saw in a dry place. Make sure to check the electric components regularly for any signs of damage. If you need to move the saw, use the transportation wheels for easy mobility. Also, always follow the safety instructions provided with the saw to avoid any accidents.
