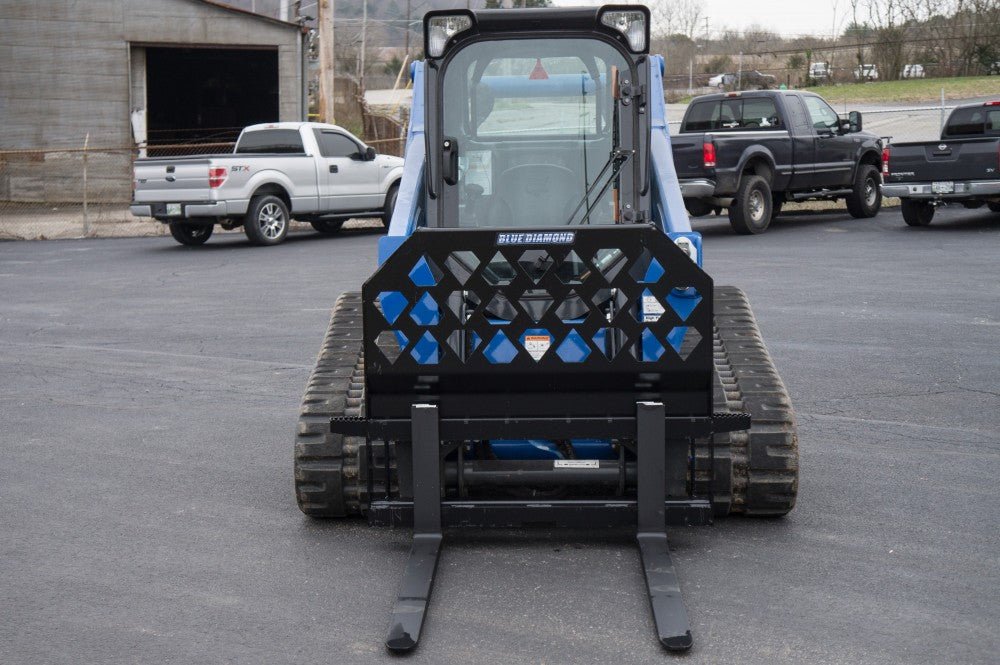

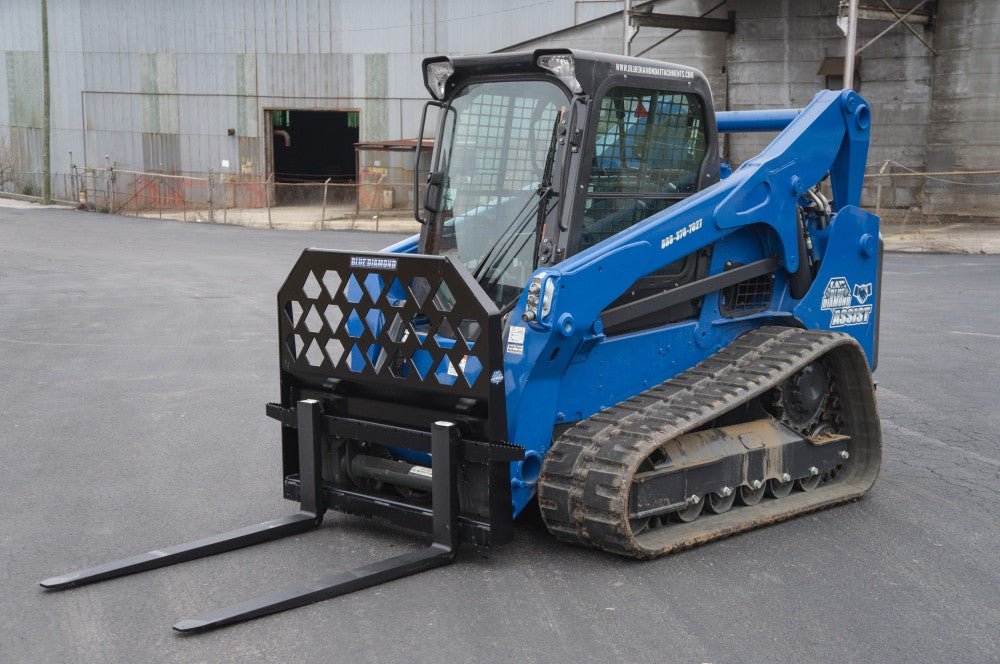

Our extra heavy duty pallet forks are designed to lift up to 6,000 lbs. They feature an easy - to - see - through oversized frame, which provides extra lift capacity for larger skid steers. The heavily reinforced brick guard and quick - attach area ensure extreme durability for heavy - duty use. Standard tines measure 48” x 1 3/4”, and 60” and 72” options are available. These pallet forks have an extra wide and tall frame, and are serial numbered with lifting capacities in both lb. and kg. to meet job - site requirements for lifting equipment. Key features include a 3” heavily reinforced carriage bar, a 51” wide frame, a 44” tall frame, a 6,000 lb. capacity, 48″ x 4″ x 1 3/4″ tines, and standard side steps. Here are the product details: there are three models with part numbers 314015, 314016, and 314017, all with a 6,000 lbs. lift capacity but different tine sizes (48', 60', and 72' respectively) and weights (500 lbs. for the first two and 591 lbs. for the last one).
Using these pallet forks is easy. First, make sure your skid steer is turned off and parked on a flat surface. Attach the pallet forks to your skid steer using the quick - attach area. Check that the connection is secure before lifting any load. When lifting, ensure the load is centered on the tines to prevent tipping. Don't exceed the 6,000 lbs. lift capacity. For safety, always wear appropriate protective gear when operating. When it comes to maintenance, regularly inspect the heavily reinforced carriage bar, brick guard, and tines for any signs of damage or wear. Clean the forks after each use to remove dirt and debris. If you notice any issues, such as cracks or excessive wear, stop using the forks and have them repaired or replaced by a professional.
