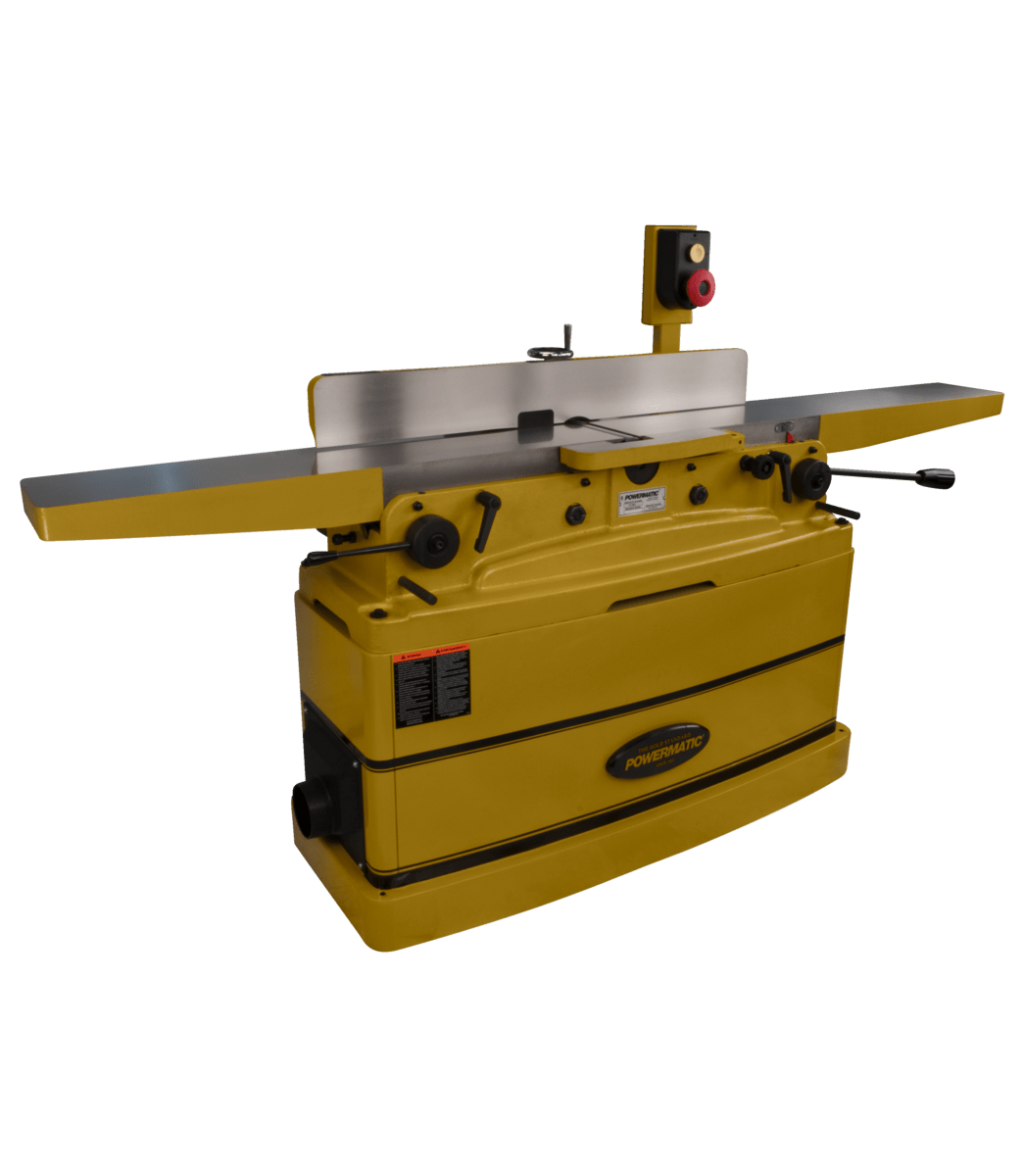

PJ882 Jointer, 2HP 1PH 230V

The 8 - inch Parallelogram Jointer is a feature - rich machine that offers great performance and value.

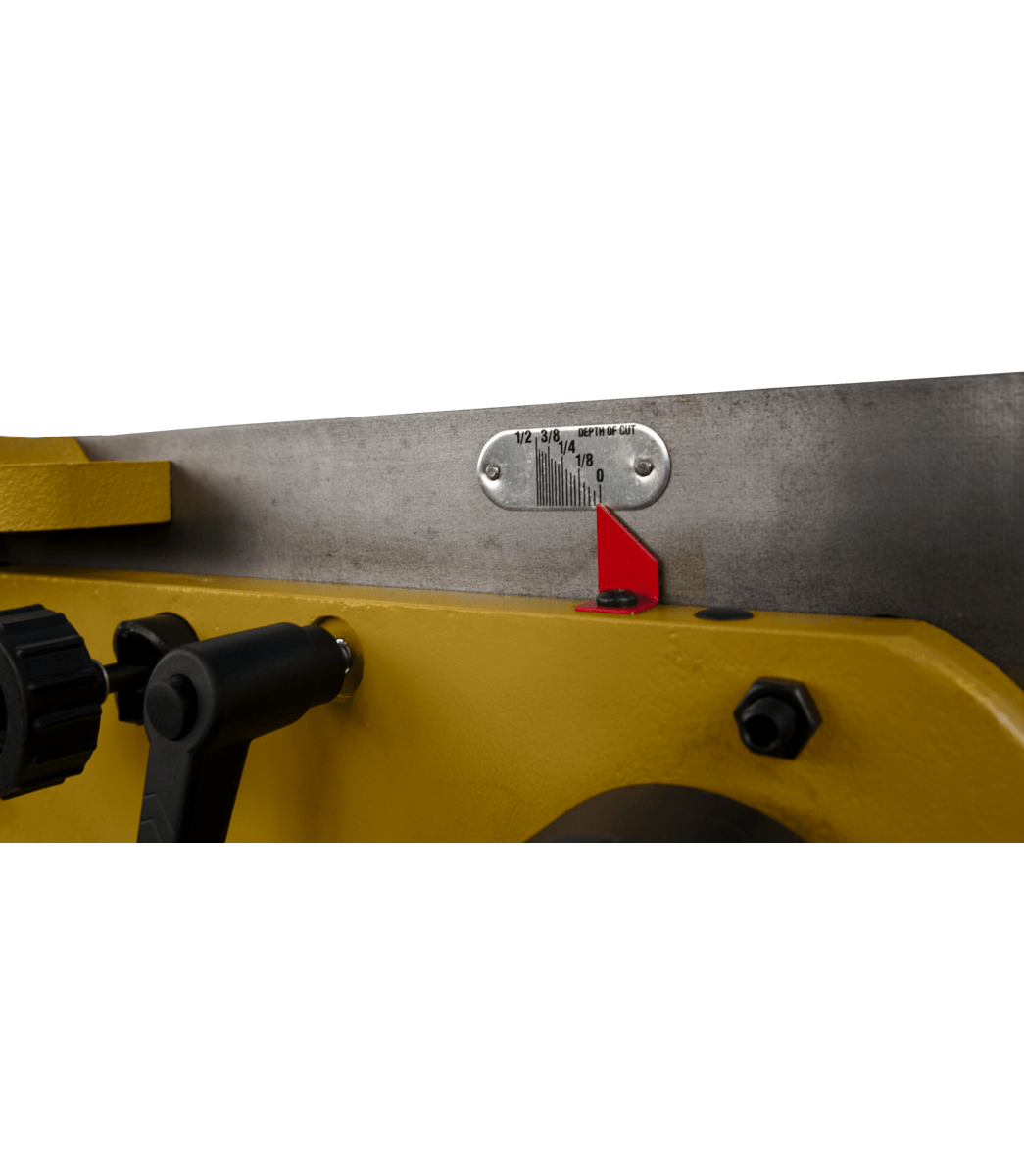

It has an extra - long 82 - inch bed for better work support. The innovative single - handwheel design lets you tilt the fence in and out with positive stops at +/-45 and 90 degrees. A non - mar insert in the fence prevents table scratching during adjustments. The parallelogram design keeps the table close to the cutterhead for a better finish and fast depth - of - cut adjustments. It also ensures the table stays parallel even after years of tough use. The 1/8 - inch depth limiter control knob offers quick adjustment and safety, and a quick twist can disable it. This jointer comes with a Powermatic controlled 3 - knife cutterhead for safe and smooth cuts every time. The powerful 2HP motor, enclosed in a heavy - duty steel stand, provides enough power for demanding jobs.

Features

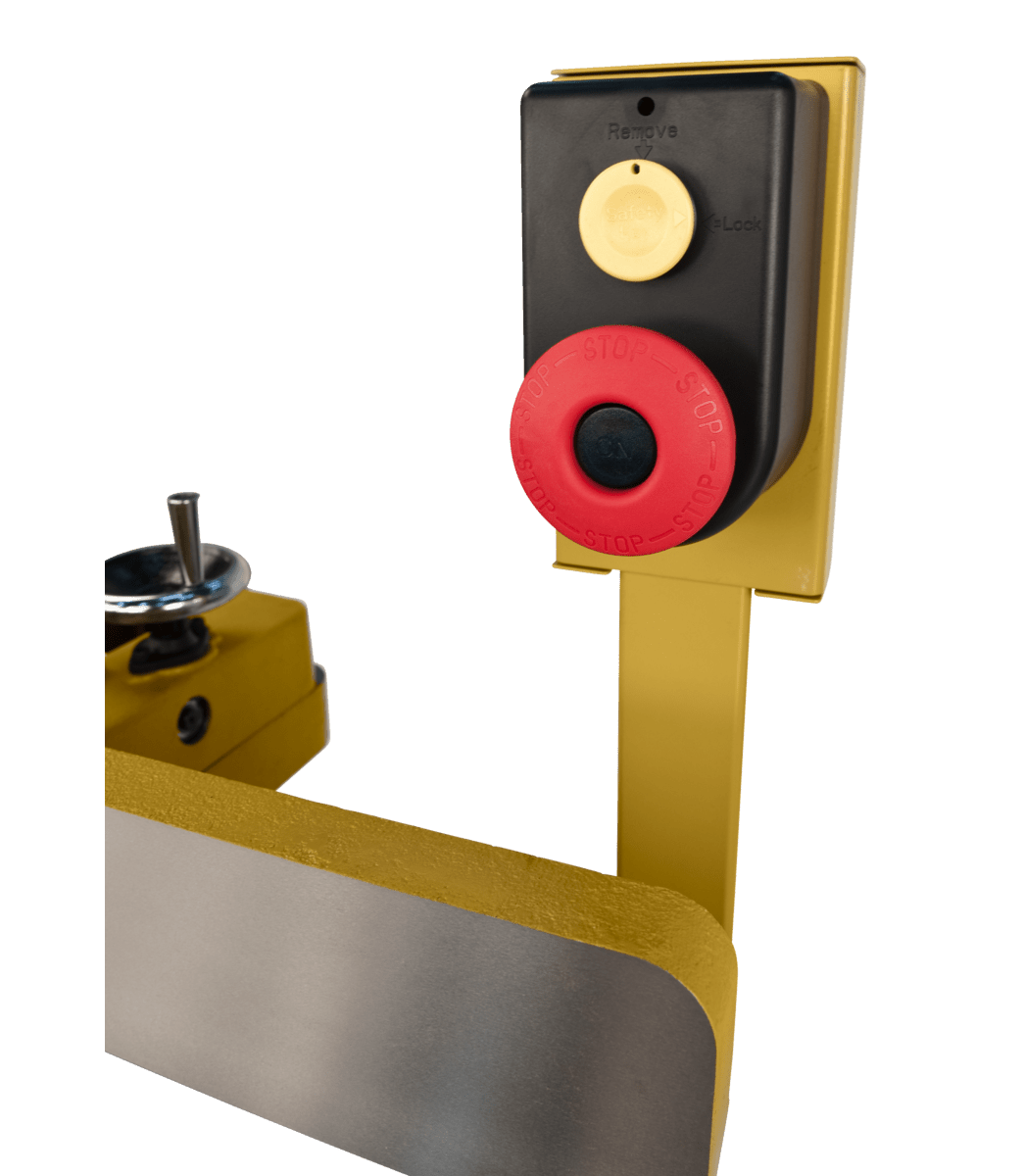

• High - mount switch for easy operator use

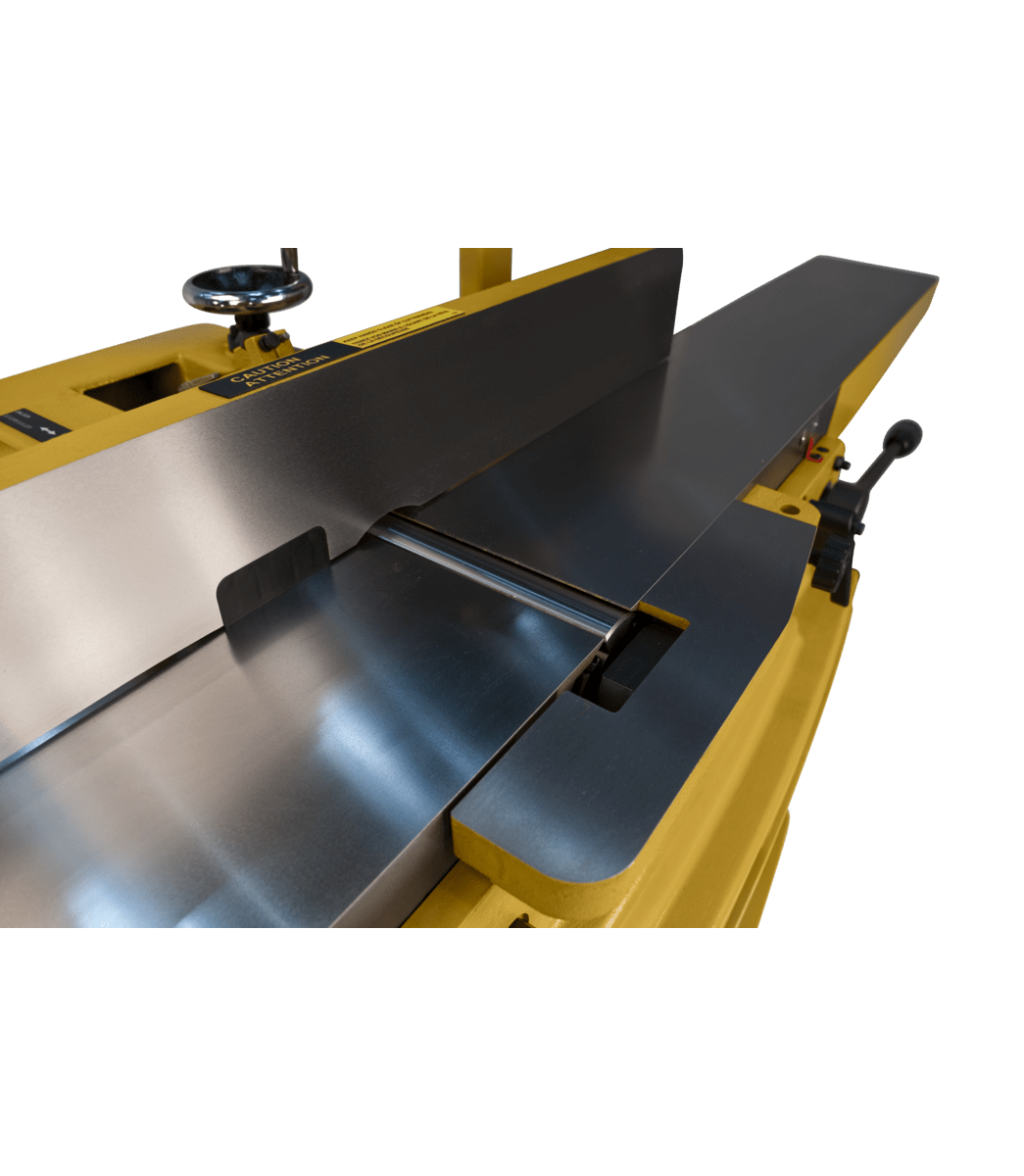

• Large 8 x 82 - inch precision - ground cast iron table for heavy - duty work
• Parallelogram design for easy and accurate table adjustments
• Parallelogram design for close table - to - cutterhead distance and fast depth - of - cut changes

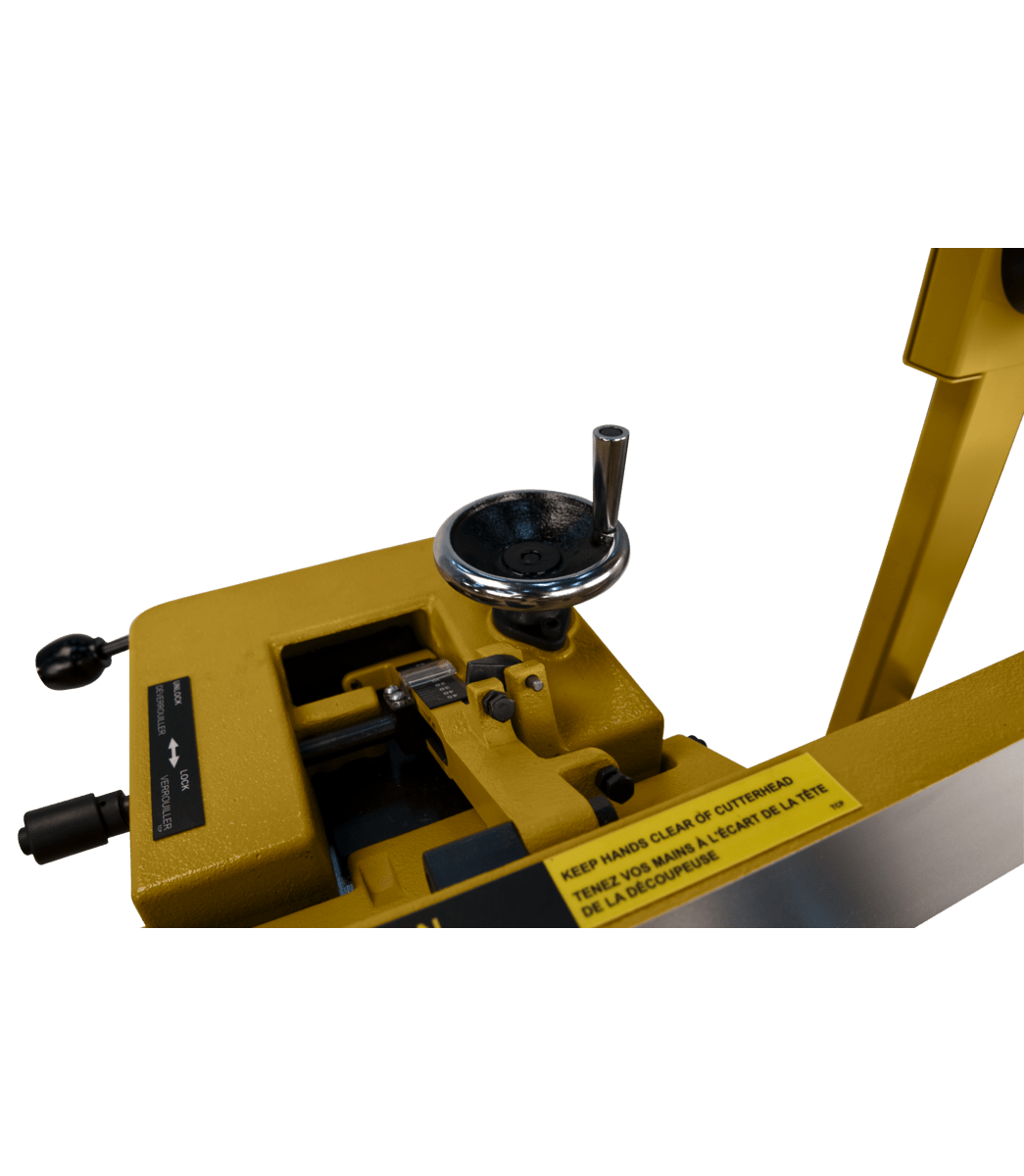

• Patented handwheel with worm gear system for precise fence tilting
• Straight knife cutterhead with 3 high - speed steel knives for clean cuts

Specifications

More Information

Stock Number	1610079
Cuts Per Minute	21,000
Cutterhead Diameter (In.)	3 - 1/16
Cutterhead Speed (RPM)	7000.0000
Cutting Capacity (W x D) (In.)	8 x 1/2
Dust Collection Minimum CFM Required (CFM)	600
Dust Port Outside Diameter (In.)	4
Infeed Table Length (In.)	44
Motor Amps	9
Motor Phase	1
Motor Power (HP)	2
Motor Voltage (V.)	230
Number of Knives	3
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Rabbeting Capacity (In.)	1/2
Recommended Circuit Size (Amps.)	20
Type of Cutterhead	Straight Knife

Using your new jointer is easy. First, make sure it's properly connected to a 230V power supply with a 20 - amp circuit. The high - mount switch is right there for your convenience to turn it on and off. When adjusting the fence, use the single handwheel. You can tilt it to +/-45 and 90 degrees easily with the positive stops. To adjust the depth of cut, the parallelogram design makes it a breeze. And if you want to use the 1/8 - inch depth limiter, just use the control knob. A quick twist will disable it if you don't need it. For heavy - duty work, the large 8 x 82 - inch precision - ground cast iron table is your friend. When it comes to safety, be aware of the Prop 65 warning about cancer and reproductive harm. Also, make sure your dust collection system has a minimum of 600 CFM and is connected to the 4 - inch dust port. For maintenance, keep the table clean and free of debris. Check the cutterhead regularly. If the knives get dull, replace them with high - speed steel ones. And don't forget to check the motor and all the connections periodically to make sure everything is in good working order.
