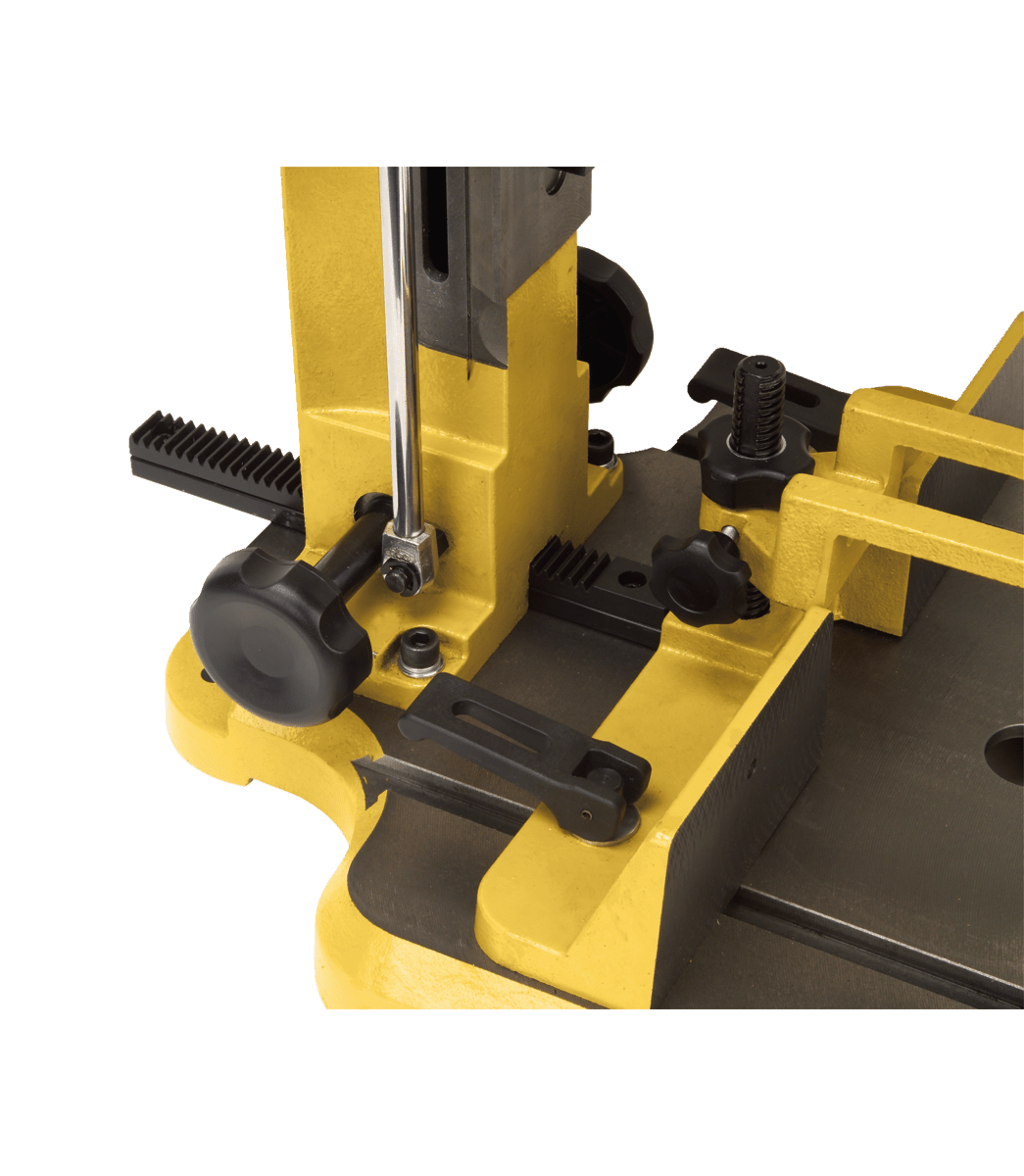

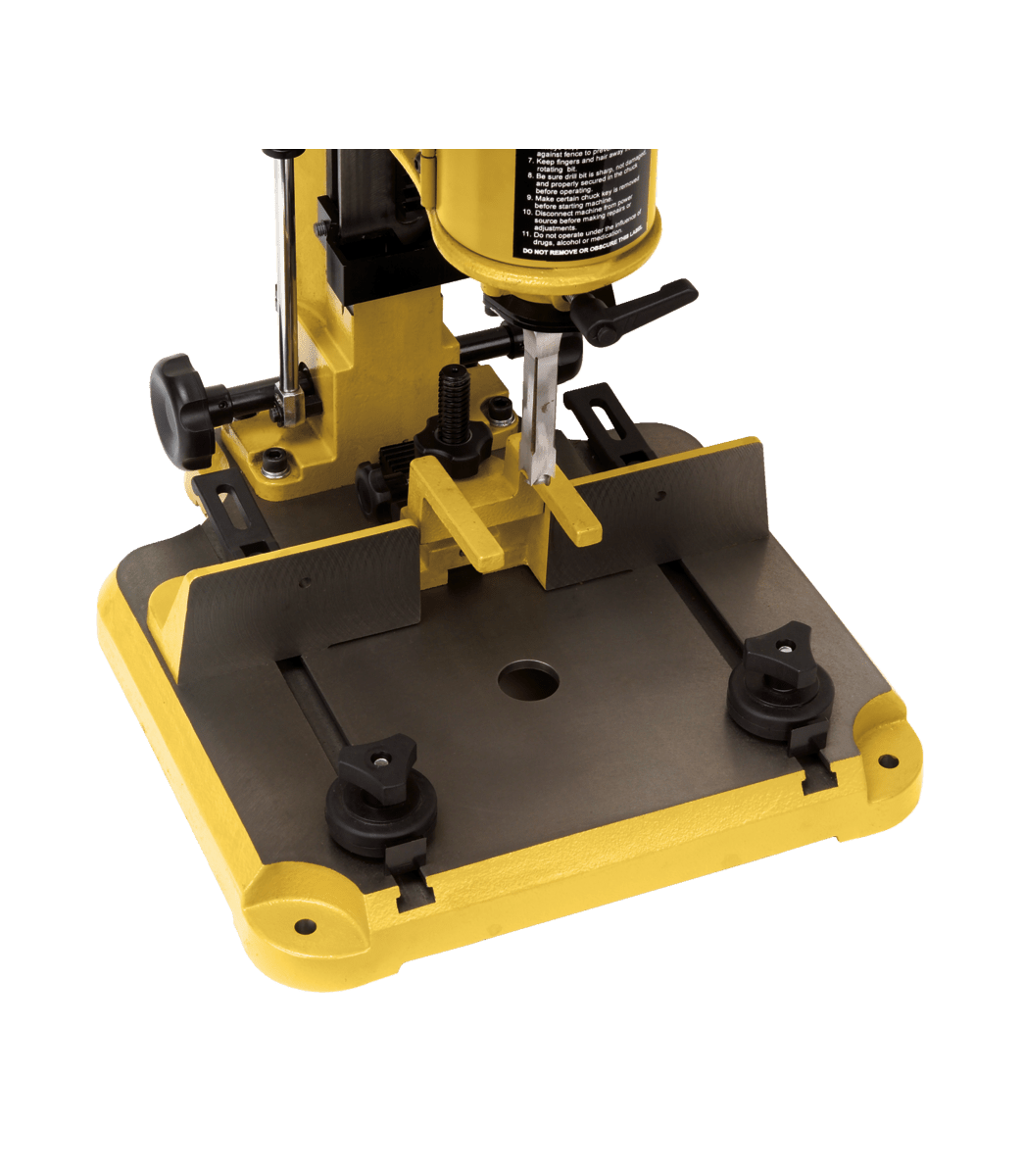

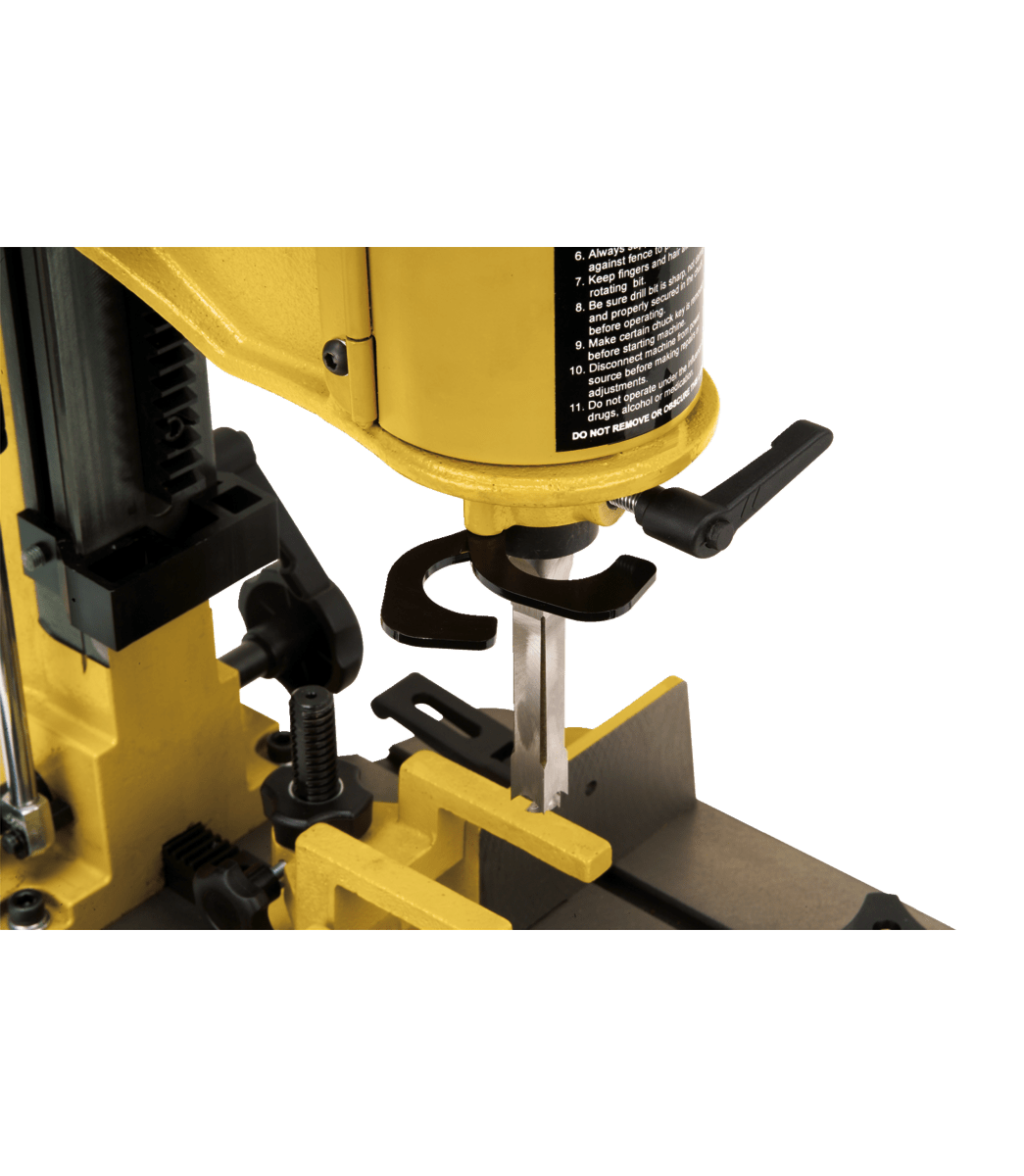

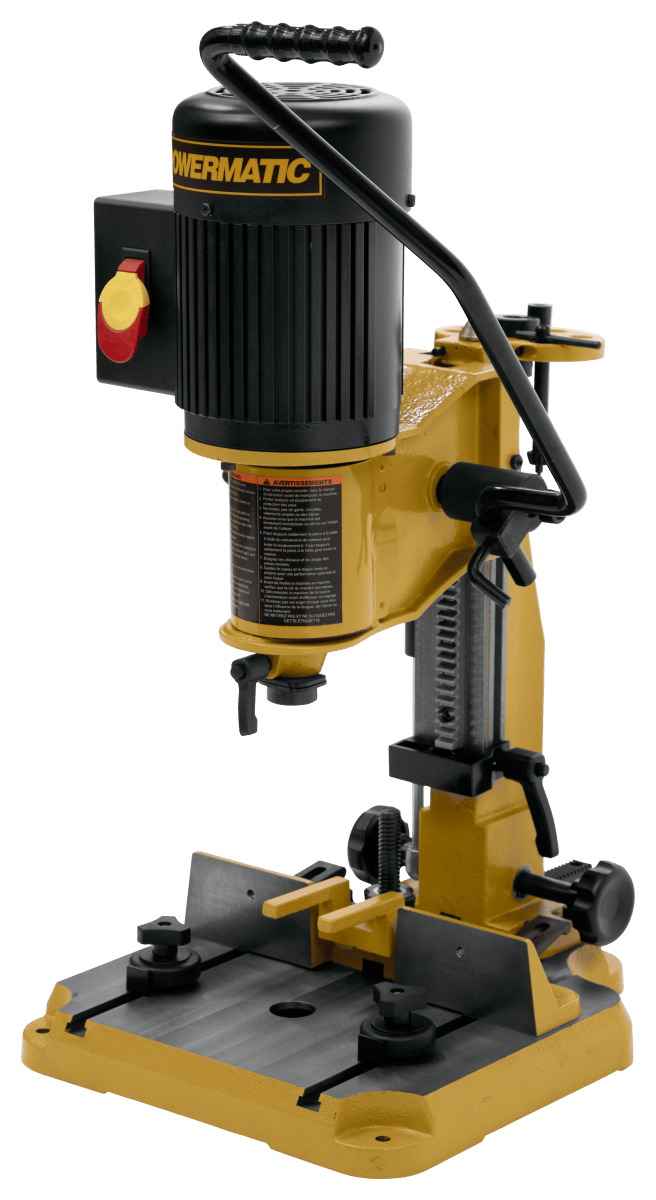

The POWERMATIC PM701 Benchtop Mortiser is a game - changer for woodworkers. It comes with an in - line depth stop that lets you reach pre - set depths effortlessly without moving the mortiser bit to the base. The heavy - duty reversible handle can be switched from one side to the other in a flash, no tools needed! The stock hold - down has a unique double - lock system. One lock is from the side and the other from the top, preventing any slippage when you take the chisel out of the workpiece. It can hold stock from 0 to 5 inches thick and is reversible too. The quick - action cam lock secures the fence in place with a single 90° movement, and the lock nuts mean you won't have to keep readjusting. Set - up is a breeze and super precise. It has an integrated bit and chisel spacer system for fast and accurate set - up. The large work surfaces on the table and fence offer more stability and accurate cuts. There's also a large hinged chuck door with a magnetic catch, allowing easy access to the drill chuck using the standard 4 - inch chuck key. And the rack and pinion design makes fence adjustments simple and quick. Key features include a tool - free reversible handle, inline depth stop, integrated chisel and tool holder with sharpening stone, large work surfaces, magnetic - catch chuck door, quick - action cam lock, easy - to - adjust rack and pinion, double - lock stock hold - down, and integrated bit and chisel spacers. Specifications include a stock number of 1791310, 1/2 - inch chuck size, 15 - amp motor, 1 - phase motor, 3/4 HP motor power, 115/230V motor voltage, prewired at 115V, spindle speed of 1725 RPM, benchtop style, and 5 - inch under hold - down. It also has a Prop 65 warning for cancer and reproductive harm.

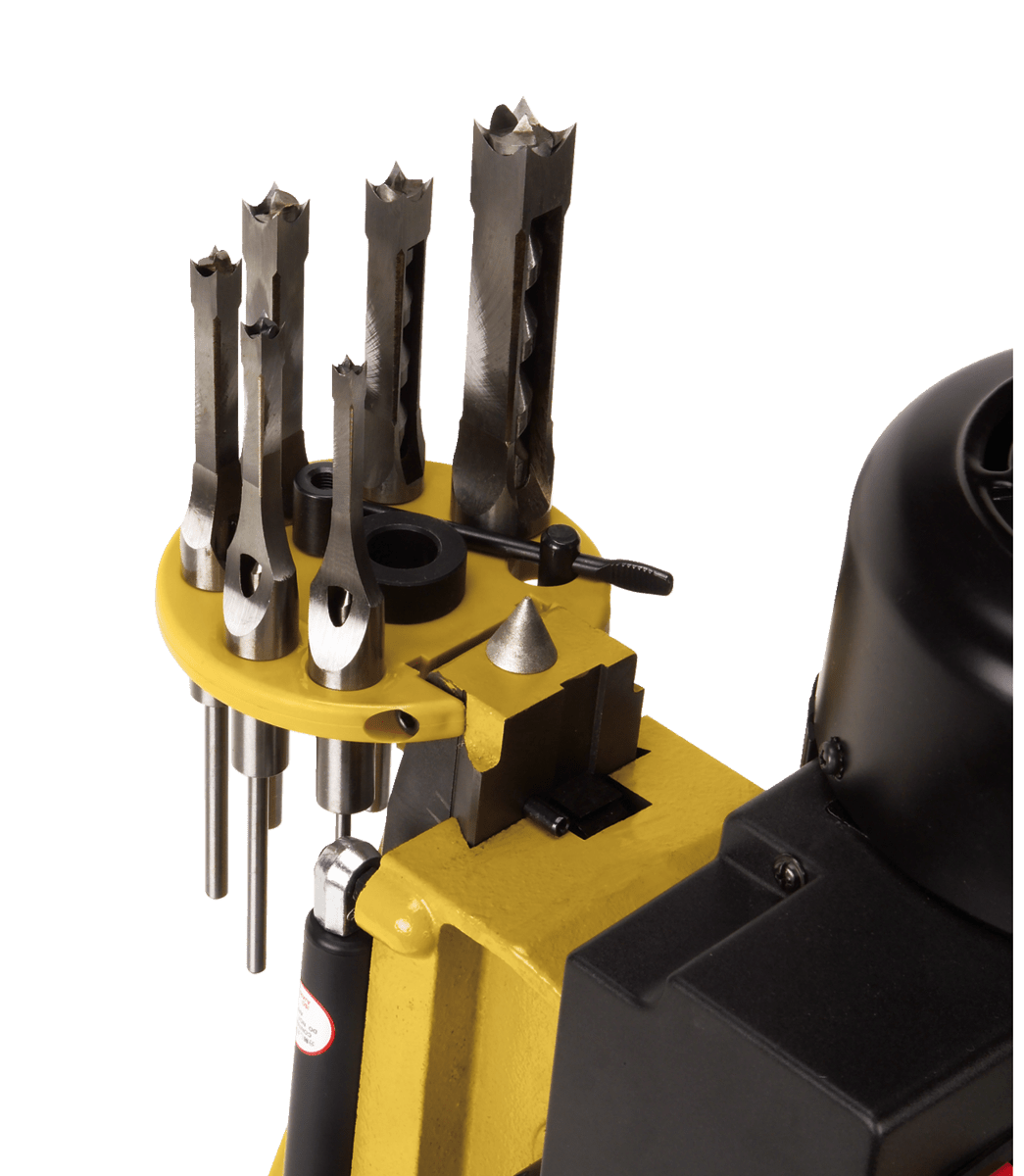

Using the POWERMATIC PM701 Benchtop Mortiser is easy. First, decide which side you want to install the heavy - duty reversible handle. It can be done without any tools. Next, set your desired depth using the in - line depth stop. This way, you don't have to move the bit to the base every time. When you place your workpiece, use the stock hold - down with the double - lock system. Lock it from the side and the top to make sure there's no slippage. To set up the bit and chisel, use the integrated spacer system. It'll help you get the right space between them quickly. Then, use the quick - action cam lock to position the fence. Just turn it 90° and it's locked. For easy access to the drill chuck, open the large hinged door with the magnetic catch and use the standard 4 - inch chuck key to lock the bit. If you need to adjust the fence, use the rack and pinion design. It's simple and quick. As for maintenance, regularly check the lock nuts on the cam lock to ensure they're tight. Clean the work surfaces after each use to keep the cuts accurate. Sharpen the chisel using the integrated sharpening stone when it gets dull. Also, follow all safety instructions related to the Prop 65 warning about cancer and reproductive harm. Make sure to operate the mortiser within the specified voltage and amperage limits for long - term performance.
