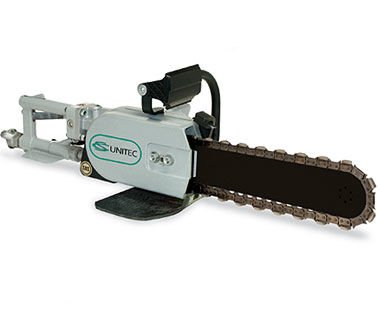

AIR CONCRETE CHAIN SAWS WITH AIRFORCE F4™ DIAMOND CHAIN
These air - powered chain saws are perfect for cutting concrete and reinforced concrete. With an amazing cutting depth of up to 20 feet, they offer great performance.
You can choose from optimized AirFORCE F4™ standard and premium diamond chains. One of the best things is that there are no gas or engine fumes, making them a clean - running option. They can even be converted into a pipe - cutting saw for ductile iron.
They have a low cost of operation and come with a durable industrial finish. The built - in wallwalker provides extra leverage for easier cutting.
Specs
| Model No. CS 536664 - 1 | Model No. CS 536664 - 2 | Model No. CS 536664 - 3 |
| Power | 6.5 HP | 6.5 HP | 6.5 HP |
| No Load Speed | 5700 RPM | 5700 RPM | 5700 RPM |
| Max. Depth of Cut | 10' | 15' | 20' |
| Motor Specifications | 124 CFM @ 90 PSI* (6 Bar) | 124 CFM @ 90 PSI* (6 Bar) | 124 CFM @ 90 PSI* (6 Bar) |
| Weight w/ Bar and Chain | 32 lbs. | 33 lbs. | 34 lbs. |
| No Load Torque (ln. - lbs) | 104 | 104 | 104 |
| Noise Level at 3 ft. | 88 dB | 88 dB | 88 dB |

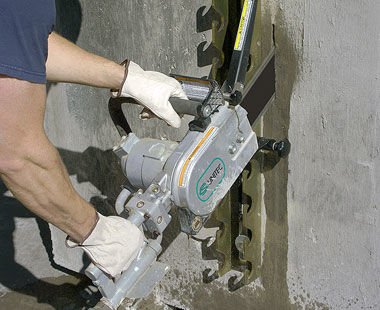

Using these pneumatic concrete chain saws is easy. First, make sure you have the right AirFORCE F4™ diamond chain for your job. Connect the saw to a suitable air supply. When you're ready to cut, hold the saw firmly and use the built - in wallwalker for better leverage. For cutting concrete, start at a slow and steady pace. If you want to convert it into a pipe - cutting saw for ductile iron, follow the conversion instructions carefully. When it comes to maintenance, regularly check the chain for wear and tear. Keep the air intake clean to ensure good performance. Store the saw in a dry place when not in use. Remember, always wear appropriate safety gear like goggles and gloves when operating the saw.
