High - Torque Drilling, Reaming, and Driving Units
Corner Drills and Bridge Reamers

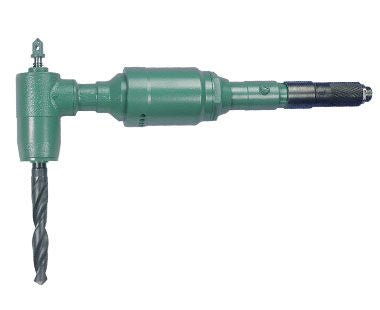

These pneumatic corner drills and bridge reamers are designed for high - performance in tight spaces. They feature a small side - to - side distance, making them perfect for working in confined areas. The self - closing roll throttle offers easy operation, and the built - in oiler keeps the motor running smoothly. Ideal for bridge reaming and drilling applications, they are a reliable choice for your projects.
Non - Reversible Specs
| Model No. | Morse Taper | Drilling (in steel) | Reaming (in steel) | Torque Output (ft./lbs.) | Load Speed (RPM) | Motor Power (HP) | CFM at 90 PSI | Length | Weight (lbs.) |
|---|
| 2 1602 0030 | #1 | 5/8' | 1/2' | 7 | 500 | 0.7 | 21 | 12.5' | 7 |
| 2 1701 0030 | #2 | 7/8' | 5/8' | 35 | 270 | 1.8 | 49 | 20.9' | 19 |
| 2 1801 0030 | #3 | 1 - 1/4' | 1' | 53 | 260 | 2.6 | 63 | 22.5' | 25 |
Model No. 2 1602 0030 has a 3/8' NPT air inlet. A 1/2' (13mm) hose is recommended. Model No. 2 1701 0030 has a 3/4' NPT air inlet. A 1/2' (13mm) hose is recommended. Model No. 2 1801 0030 has a 3/4' NPT air inlet. A 5/8' (15mm) hose is recommended.

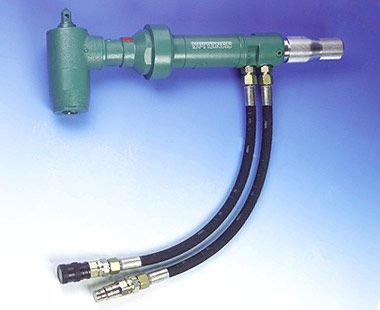

Reversible Specs
| Model No. | Morse Taper | Drilling (in steel) | Reaming (in steel) | Tube Rolling Cap. | Torque Output (ft./lbs.) | Load Speed (RPM) | Motor Power (HP) | CFM at 90 PSI | Length | Weight (lbs.) |
|---|
| 2 2104 0030 | #4 | 2 - 1/8' | 2' | 2' | 86 | 180 | 3.0 | 71 | 23.8' | 37 |
A 5/8' (15mm) hose is recommended for model 2 2104 0030.
Using these pneumatic corner drills and bridge reamers is easy. First, connect the appropriate air hose to the air inlet of your chosen model as recommended. Make sure the air supply is turned on and at the right pressure. When working, hold the tool firmly and start it using the self - closing roll throttle. These tools are great for working in tight spaces, so you can use them in areas where other tools might not fit. For maintenance, keep the built - in oiler filled to ensure the motor runs smoothly. Also, regularly check the hoses for any signs of wear or damage. If you encounter any issues, stop using the tool immediately and have it inspected by a professional. Always follow the safety guidelines when operating these tools.
