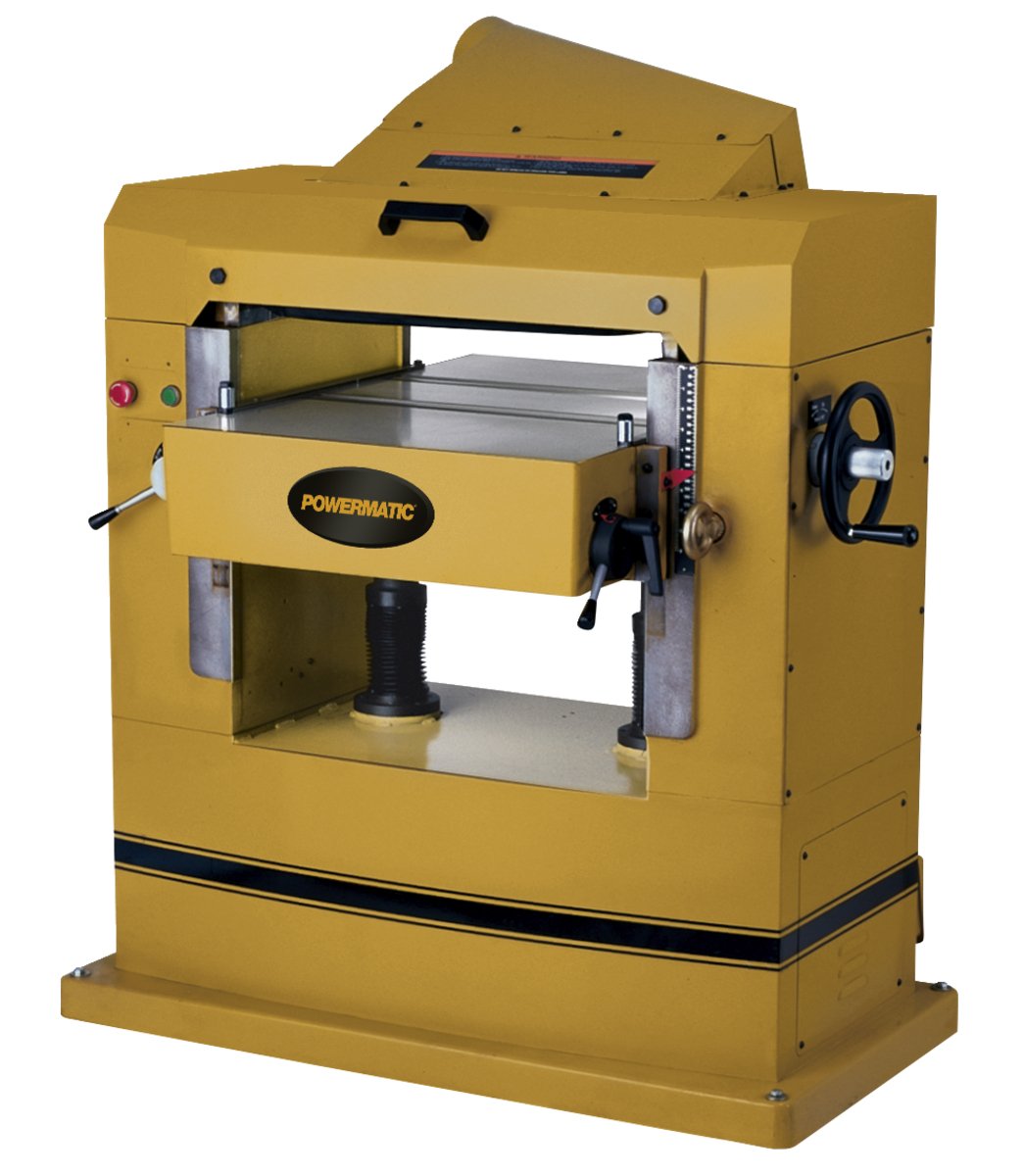

201HH Planer, 7.5HP 1PH 230V

This 1,300 - pound heavy - duty cast iron planer offers unwavering rigidity and accurate planing for years. Its hinged top gives easy access to rollers and knives and features a 5 - inch dust port for simple connection to any dust collection system. The helical cutterhead with 125 four - sided knife inserts provides a superior finish and quieter operation compared to conventional ones, and the inserts require no further adjustments. Anti - kickback fingers and a pressure bar near the cutterhead ensure an excellent finish. Infeed and outfeed rollers with roller bearings offer long - lasting performance. The sectional infeed roller and chip breaker allow multiple boards to be planed at once. Adjustable bed rollers facilitate both rough and finish planing. The serrated solid steel outfeed roller ensures a smooth finish and positive feeding. The two - speed gearbox with machined detents can be quickly changed when switching between rough and finish work. The large, ribbed cast iron table is ground - finished and can be smoothly raised via the hand wheel. With a powerful 7.5 - horsepower motor, it's ideal for small to medium shops with continuous planing needs. Key features include 2 feed speeds (20/30 fpm) for different work, adjustable bed rollers for smooth feeding, all - cast - iron construction, a dust chute with a 5 - inch port, and more.

Using the 201HH Planer is straightforward. First, make sure the machine is properly connected to a 230V power source as it has a 7.5HP 1 - phase motor. You can adjust the feed speed between 20 and 30 fpm according to whether you're doing rough or fine finish work. The adjustable bed rollers can be set to let rough or finished workpieces feed smoothly. To access the rollers and knives, just open the hinged top. For dust collection, connect a system to the 5 - inch dust port. When planing, place your boards on the table, and the infeed and outfeed rollers will move them through. The sectional infeed roller and chip breaker allow you to plane multiple boards at once. Remember, the maximum planing thickness is 9 - 1/4 inches and the maximum width is 22 inches, and the minimum planing length is 10 inches. When switching from rough to finish work, quickly change the two - speed gearbox at the front. As for maintenance, keep the dust collection system working well to prevent dust buildup. Check the roller bearings regularly for smooth operation. Also, be aware that this product may cause cancer and reproductive harm as indicated by Prop 65.
