Description

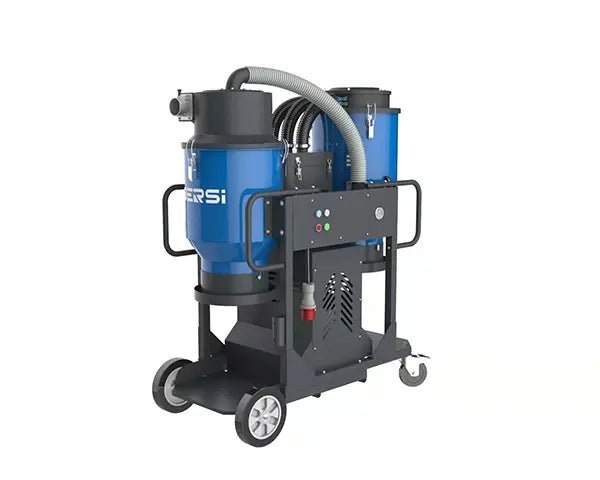

The AC800 is an incredibly powerful three-phase dust extractor. It comes with a high-performance pre-separator that can remove up to 95% of fine dust before it reaches the filter. This extractor features an innovative auto-clean technology, enabling continuous operation without frequent manual cleaning and significantly boosting productivity. It has a 2-stage filtration system. In the first stage, 2 cylindrical filters rotate for self-cleaning. In the second stage, 4 HEPA-certificated H13 filters ensure safe and clean air for operators. The continuous folding bag system makes bag changes simple and dust-free. It includes a 76mm*10m grinder hose and a complete floor tool kit with a 50mm*7.5m hose, D50 wand, and floor tool. Ideal for mid-size and large grinding equipment, scarifiers, shot blasters, and floor grinders. Voltage: 1Ph/120V/60Hz, Current: 18A, Water lift: 82 inch, Cfm: 285, Suction inlet: 2.75'', Filter: HEPA 11 conical filter*1PC, Cleaning method: Jet pulse filter cleaning, Standard tools: 2'' hose*24.6ft, S wand, floor brush, Net weight: 178Ibs, Gross weight: 216Ibs.
Using the AC800 dust extractor is easy. First, connect it to a power source with the correct voltage (1Ph/120V/60Hz). Then, attach the appropriate hoses and tools according to your needs, like the grinder hose or the floor tool kit. Turn on the extractor and start your work. The auto-clean technology will keep the filters clean during operation, so you don't have to stop often. When it's time to change the bags, use the continuous folding bag system for a simple and dust-free process. As for maintenance, regularly check the filters. If they seem dirty or clogged, use the jet pulse filter cleaning method. Also, make sure to keep the unit in a dry place when not in use. Be careful not to overload the extractor with too much dust at once, as it may affect its performance.
