Description

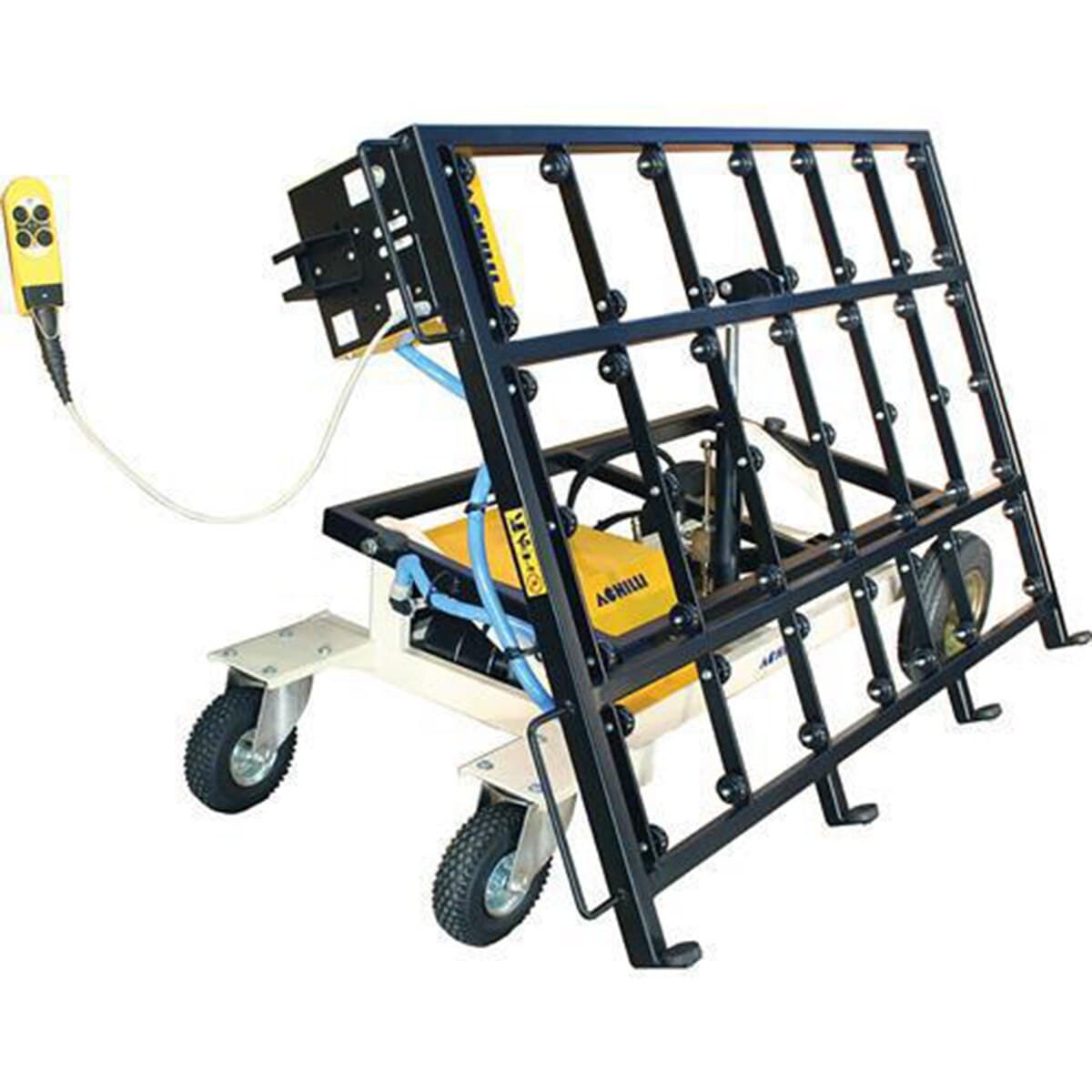

The Achilli SC500 is an outstanding tilting stone slab transport cart designed for PC use. It features a spacious 77' (Length) x 48' (Width) table, capable of handling a weight capacity of 1102 lbs. Ideal for moving stone slabs from a boom and lifter in a vertical position to a saw, table, or CNC machine and horizontally loading them. It's also great for transporting slabs from storage pin racks or A frames to workstations in the shop. With multiple height adjustments from 25' to 38' (635mm x 965mm), it can easily load saws, CNC machines, work tables, and benches. The table size allows for easy and safe loading and transport of full slabs. The cart has rollers for effortless unloading of slabs, simply roll the granite or stone slab onto the work area. It operates on a rechargeable battery and is hydraulically powered. The motorized and battery - powered, hydraulically operated system ensures smooth lifting and positioning of slabs. The worktop is adjustable in height, comes with a 48' x 77' (1219mm x 1956mm) size fitted with hard - wearing plastic wheels, which are especially useful for delicate materials. It includes an electronic battery charger, has a telescopic panel for easy control reach, and an adjustable worktop via a corded pendant control unit. Additional features include epoxy powder painting, easy loading due to the almost vertical 'tilting' motion of the worktop, 4 rubber wheels (2 fixed and 2 pivoting) for all - terrain movement, a pendant control for easier operation, an electric battery charger, and service wrenches. The empty weight of the SC500 is 595 lb.
Using the Achilli SC500 stone slab transport cart is quite straightforward. First, make sure the battery is fully charged. When moving a stone slab from a boom and lifter in a vertical position, position the cart properly. Then, use the corded pendant control unit to adjust the worktop height according to your needs, which can range from 25' to 38'. You can easily load the slab onto the 77' x 48' table. Once loaded, you can move the cart around thanks to the 4 rubber wheels (2 fixed and 2 pivoting). When you reach the destination, like a saw or a workbench, use the rollers to unload the slab onto the work area. During use, always keep an eye on the battery level. If it gets low, use the included electric battery charger to recharge it. To maintain the cart, regularly check the rubber wheels for any signs of wear and tear. Also, make sure the hydraulic system is in good condition. The epoxy powder - painted surface should be kept clean. If you need to adjust the controls, use the telescopic panel for easy reach. Remember, the maximum loading capacity is 1102 lbs, so don't overload the cart. And keep the service wrenches handy for any minor repairs or adjustments.
