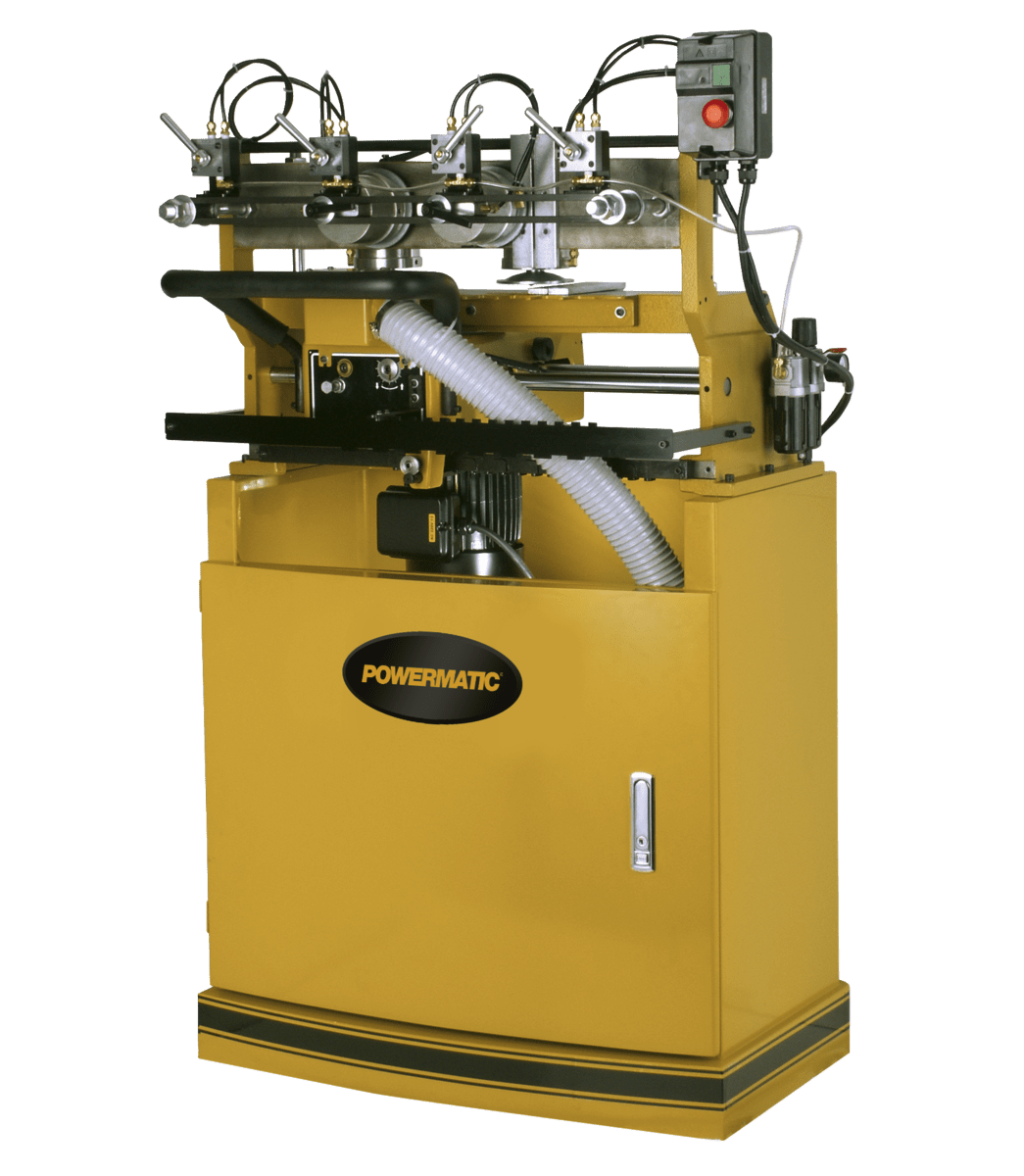

The POWERMATIC® DT65 Single Spindle Dovetailer is a game - changer for drawer construction. It offers an economical way to create clean, professional dovetails that can elevate your products. Equipped with a 1HP 230V single - phase motor, pneumatic clamping, a magnetic starter, a carbide - tipped cutter, and a four - sided template, it can produce dovetails on 1', 1 - 1/2', 2', and 2 - 1/2' centerlines, giving your work a unique custom look.
### Features
- Built with cast iron and steel for excellent stability and long - lasting durability.

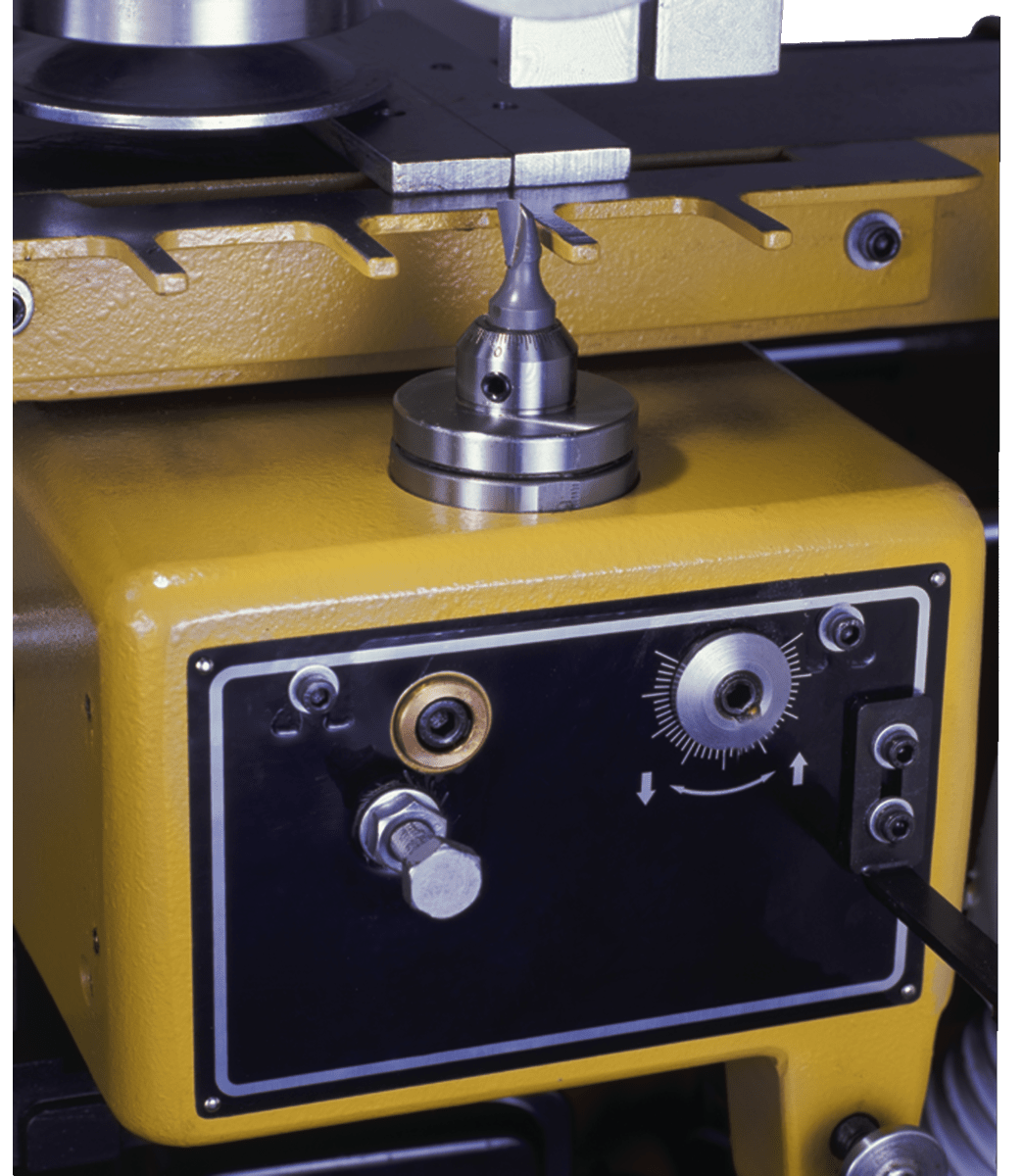

- A cutter height ranging from 3/16' to 3/4' can handle different cutting depths and board thicknesses.
- An eccentric spindle collet is perfect for resharpened cutters.
- The extra - large soft - grip handle ensures easy control and comfort.
- Four dovetail center lines create a one - of - a - kind appearance.
- Material stops help you position the workpiece conveniently.

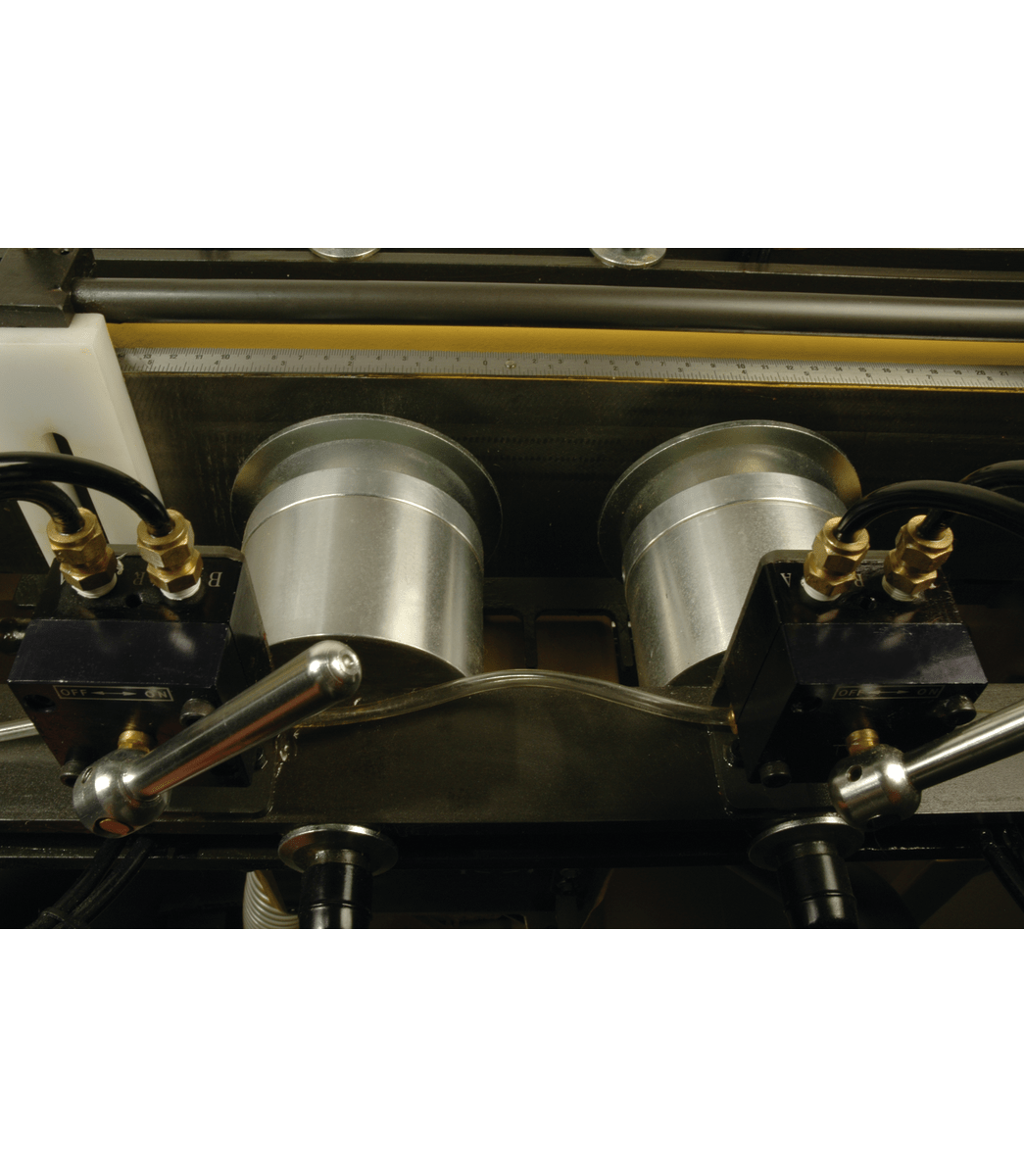

- Pneumatic clamping allows for quick locking and unlocking of the workpiece.
- The spring - loaded carriage enables smooth and effortless dovetail cutting.
- Precision linear carriage bearings are sealed at both ends to prevent dust buildup.
- A visual stylus and template assist in guiding the carriage.
### Specifications
| Spec | Details |
|--|--|
| Stock Number | 1791305 |
| Dust Collection Minimum CFM Required (CFM) | 500 |
| Maximum Dovetail Height (In.) | 3/4 |
| Maximum Front Thickness (In.) | 2 - 3/8 |
| Maximum Side Thickness (In.) | 1 - 3/16 |
| Minimum Dovetail Height (In.) | 3/16 |
| Minimum Front Thickness (In.) | 9/32 |
| Minimum Side Thickness (In.) | 3/8 |
| Motor Phase | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 230 |
| Number of Dovetail Center Lines | 4 |
| Number of Spindles | 1 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Pneumatic |
Using the POWERMATIC DT65 Dovetailer is quite straightforward. First, position your workpiece using the material stops. This helps you get the right placement easily. Then, use the pneumatic clamping to quickly lock the workpiece in place. You can adjust the cutter height according to your board's thickness and the depth of the cut you want. The cutter height can range from 3/16' to 3/4'.
When you start cutting, the spring - loaded carriage will move smoothly, making the dovetail cutting process effortless. The visual stylus and template are there to guide the carriage, so you get an accurate cut. You can choose different dovetail center lines (1', 1 - 1/2', 2', and 2 - 1/2') to give your work a custom look.
Now, for some important notes. This product has a Prop 65 warning, which means it can cause cancer and reproductive harm. So, make sure you take proper safety precautions. Also, the dust collection minimum CFM required is 500. You need to have a good dust collection system to keep the workspace clean and safe.
As for maintenance, the precision linear carriage bearings are sealed at both ends to stop dust buildup. But it's still a good idea to clean the machine regularly. Check the cutter and the eccentric spindle collet. If the cutter gets dull, you can resharpen it and use the collet to hold it properly. And don't forget to keep the extra - large soft - grip handle clean for better control and comfort.
