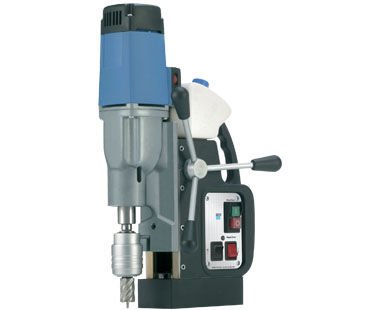

MAB 525 Portable Magnetic Drills

High-Powered and Perfect for Production Work

• Powerful and Dependable
• Fast-Change Keyless Cutter System
• Built-in Cutting Oil Reservoir
• Self-Lubricating Design

Specs

Motor Power	14.5 Amp / 110 Volt
Weight	35 lbs.
Hole Capacity	2-1/2' dia.
Twist Drill Capacity	1' dia.
Tapping Capacity	15/16' dia.
Speeds	70-280 and 180-580 RPM

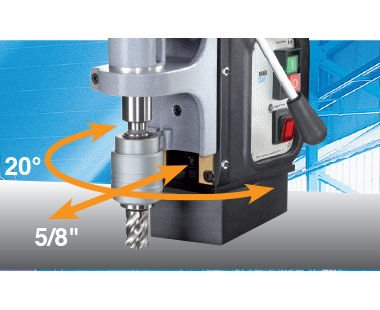

Magnet Base Size	7-1/8' L x 3-1/2' W

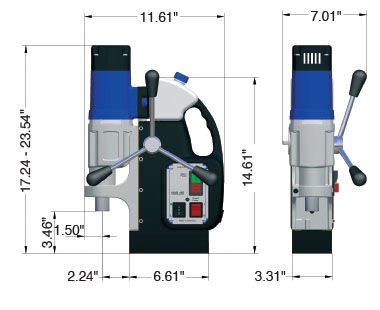

Dimensions	19' H x 11-3/4' L x 6-3/4' W
Magnetic Force (1' plate)	4500 lbs.
Arbor Bore	3/4' Weldon Shank
Spindle	MT3
Automatic Lubrication	Included

*220 V model also available

More Info

• Catalog Page: MAB 525 & MAB 525 SB (PDF)

• Operating Manual: MAB 525 (PDF)

• Schematics: MAB 525 (PDF)

• Schematics: MAB 525 SB (PDF)

Using the MAB 525 portable magnetic drill is easy. First, make sure it's properly connected to a power source (either 110V or 220V if you have the appropriate model). Place the drill on a flat and stable surface, and activate the magnet to secure it. Then, select the right cutter for your job using the quick - change keyless cutter system. You can start drilling holes with the drill's high power and multiple speed settings according to your needs. When it comes to maintenance, regularly check the cutting oil reservoir and refill it as needed. The automatic internal lubrication system helps keep the drill in good condition, but still, it's a good idea to clean the drill after each use. Avoid overloading the drill by using it within its specified capacities for hole size, twist drill, and tapping. Store the drill in a dry place to prevent rust and damage. And always refer to the operating manual (available as a PDF) for more detailed instructions and safety precautions.
