Mini Pallet Forks

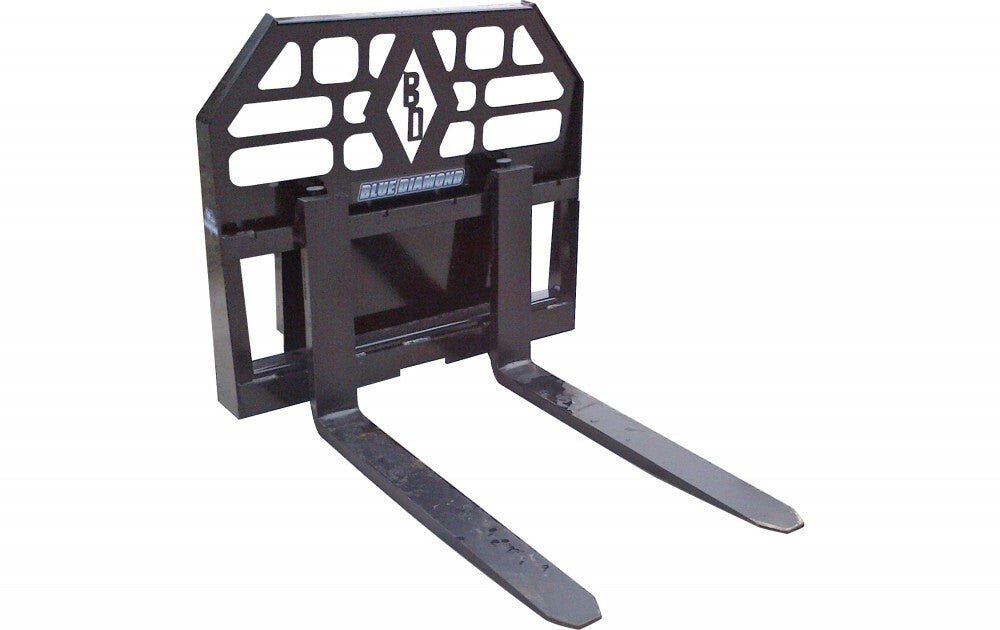

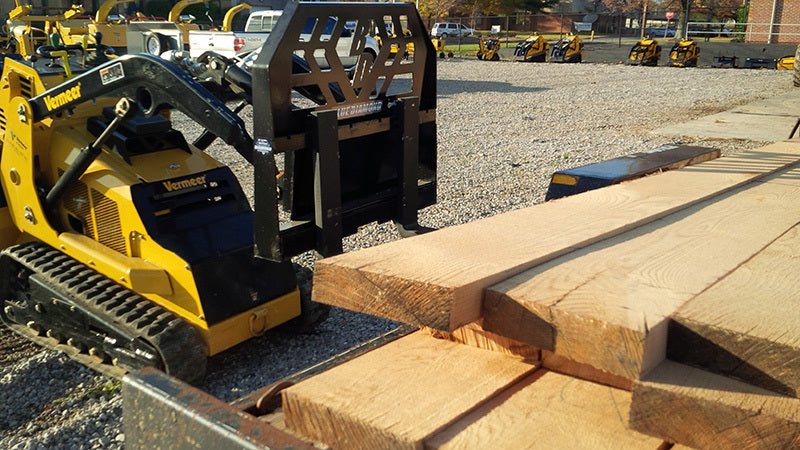

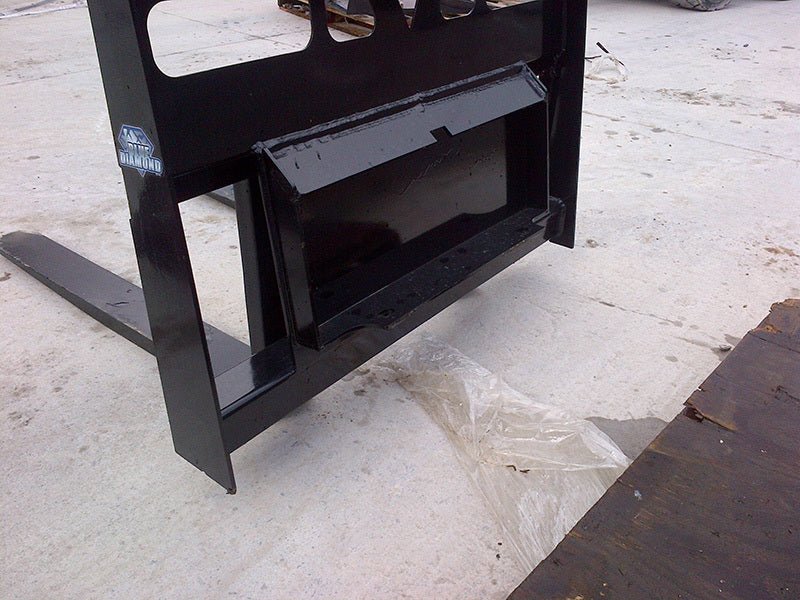

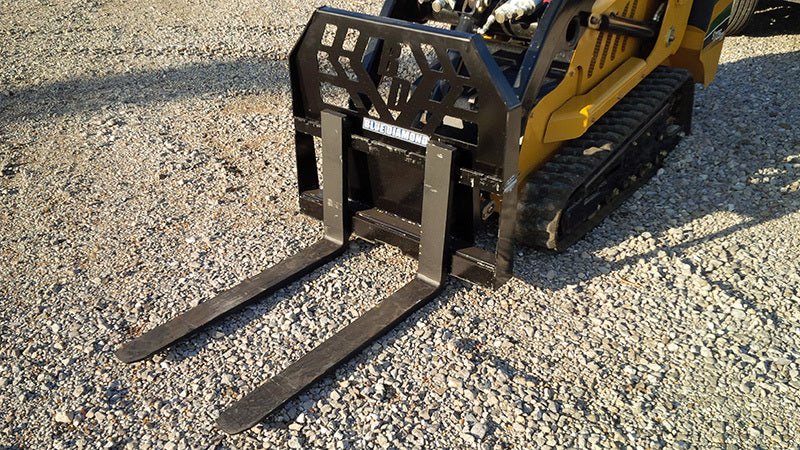

The Blue Diamond Mini Pallet Forks are perfect for mini skid steer and mini track loaders. They provide excellent visibility and high durability. These tough forks use Class 2 fork tines hung on a machined carriage bar, allowing the tines to lock in various positions. Key features include non - floating tines hooked top and bottom, a durable backrest for tough work, multiple locking positions for the fork tines, fork tines available from 36" to 48" long, and a 3,000 lb. capacity. Here are the product specs: PART NUMBER 314002 is a 1 1/4' X 36” Tines Pallet Fork weighing 240 lbs; PART NUMBER 314001 is a 1 1/4' X 42” Tines Pallet Fork weighing 313 lbs; PART NUMBER 314000 is a 1 1/2' X 48” Tines Pallet Fork weighing 313 lbs; PART NUMBER 314040 is a 24” Tines Pallet Fork with a 1,300 Lbs. Cap weighing 180 lbs. You can also check the MINI PALLET FORKS SPEC SHEETS.

Using these Blue Diamond Mini Pallet Forks is easy. First, attach them properly to your mini skid steer or mini track loader according to the machine's instructions. When using, make sure the load doesn't exceed the 3,000 lb. capacity (or 1,300 lbs. for the 24” tines model). Check that the fork tines are locked in the right position before lifting any load. For maintenance, keep the forks clean after each use. Check the non - floating tines and the backrest for any signs of damage. If you notice any issues like bent tines or a damaged backrest, don't use the forks until they're repaired. Also, regularly lubricate the moving parts to ensure smooth operation.
