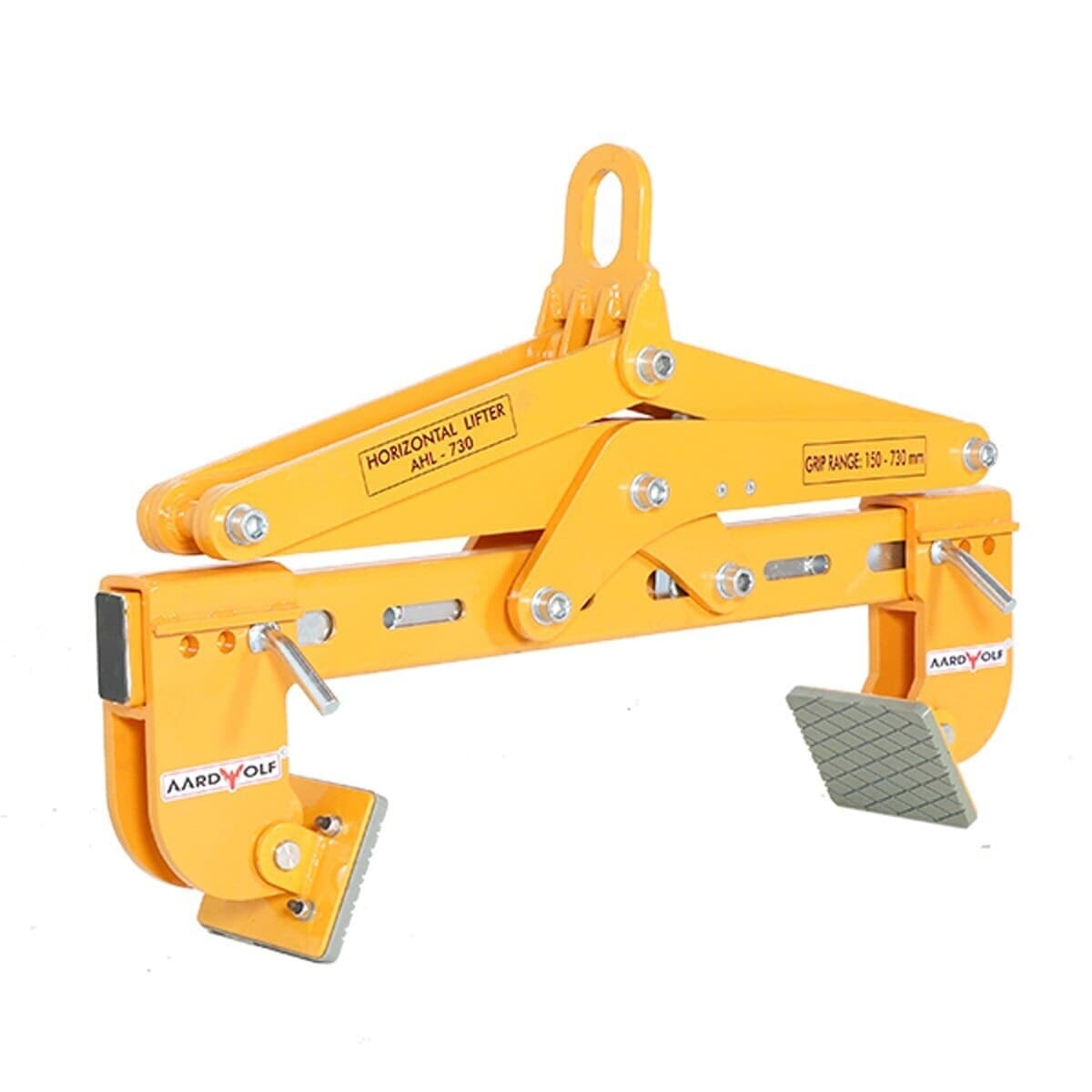

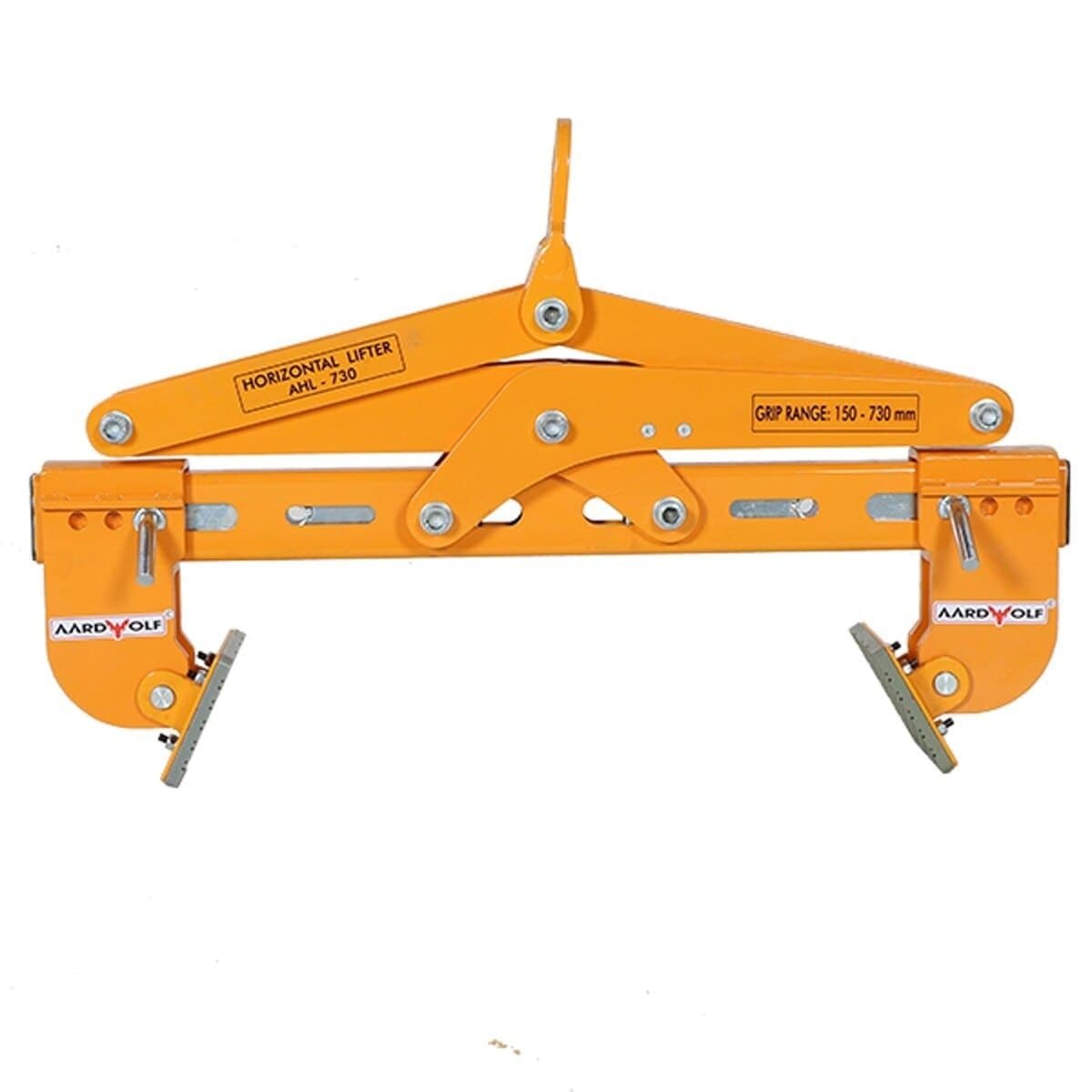

Horizontal Stone Lifting Clamp 730 - Your Ideal Adjustable Lifting Solution
This adjustable lifting clamp has a wide grip range, perfect for lifting concrete, pavers, and natural stone horizontally. Once the load is fully lowered to the ground, the built - in latch automatically releases the lifter from the load.
Key Features
- Adjustable opening width for versatile use
- A large gripping range suitable for various applications
- Long - lasting, high - friction replaceable polyurethane gripping pads
- A lifting eye for easy attachment to a crane hook
- Auto - locking and unlocking mechanism for the load
- Vulcanized rubber pads for better grip
Specifications

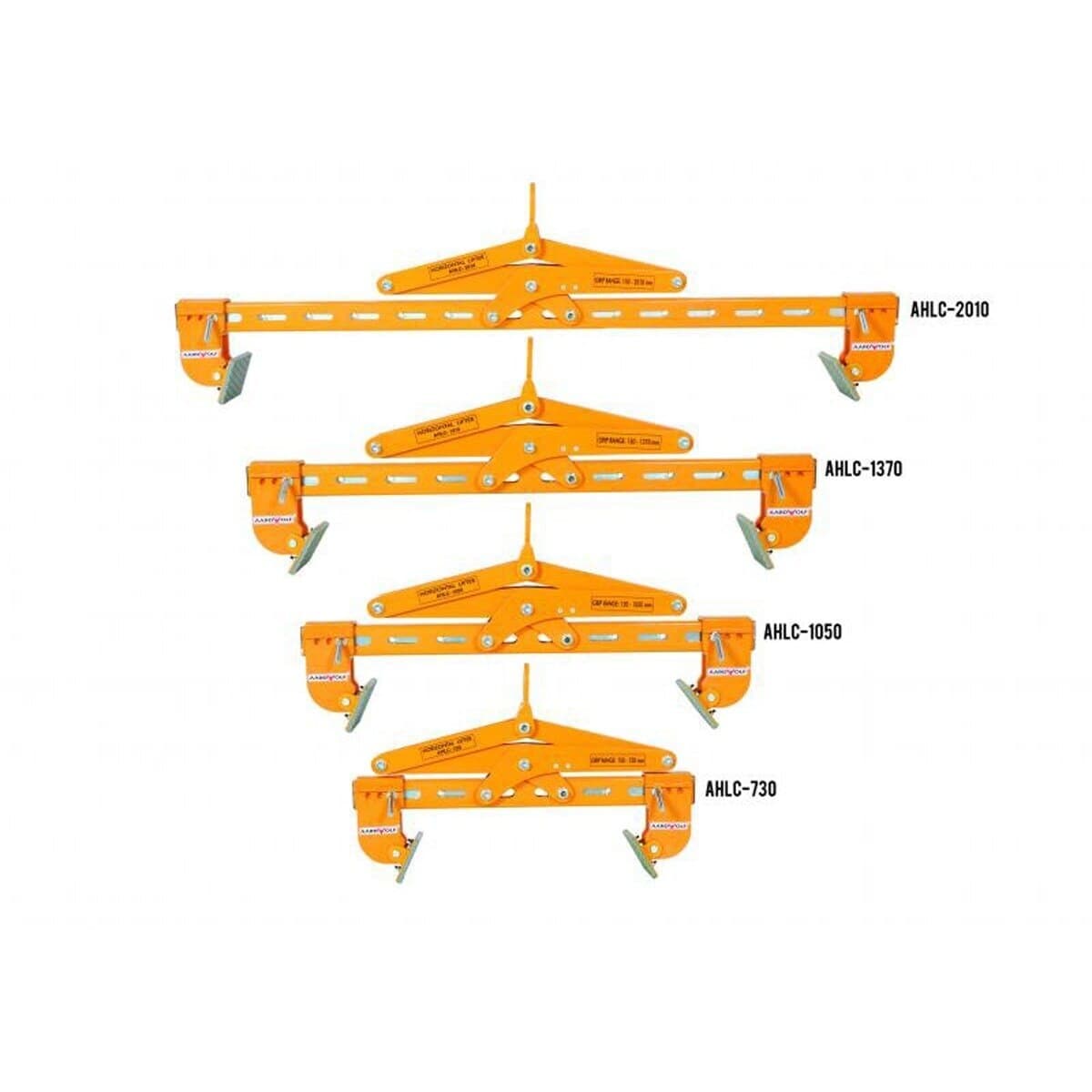

| Model | Grip Range | Lifting Capacity | Weight of Lifter |
| AHLC - 730 | 11' - 28' | 3307 | 247 |
| AHLC - 1050 | 11' - 41' | 3307 | 267 |
| AHLC - 1370 | 11' - 54' | 3307 | 273 |
| AHLC - 2010 | 11'' - 79'' | 3307 | 302 |
| AHLC - 2010 - 4 | 12'' - 79'' | 8818 | 503 |
Using the Aardwolf Horizontal Stone Lifting Clamp is easy. First, adjust the opening width according to the size of the load. Then, attach the lifting eye to the crane hook. Once you've placed the clamp on the concrete or stone, start lifting. The auto - locking feature will keep the load secure during the lift. When you lower the load to the ground, the latch will automatically release the clamp. Make sure to check the gripping pads regularly for wear and tear. If they're worn out, replace them with new polyurethane pads. Also, keep the clamp clean and dry to prevent rust and ensure long - lasting performance. Always follow the weight capacity limits specified in the product's specifications to avoid any accidents.
