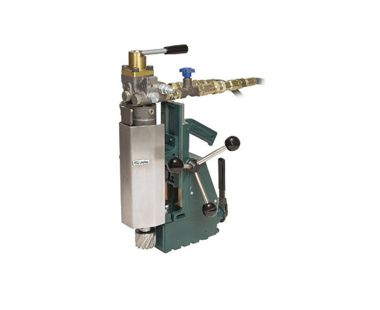

HB 4400 | Portable Hydraulic Magnetic Drill

Powerful Hydraulic Drill for Marine and Construction, Works Underwater

• Perfect for industrial, construction, marine, and mining projects
• Capable of drilling structural steel and various metals
• Features automatic lubrication for smooth operation

Specs

Motor Power (Hydraulic)	1.5 HP
Weight	48.5 lbs.
Stroke	3-3/4'
Hole Capacity	2-1/16' dia
Twist Drill Capacity	1/2' dia.
No Load Speed, Variable	0-630 RPM
Hydraulic Supply	FLOW 6.5 GPM @ 2000 PSI
Magnetic Base Size	7-1/4' L x 3' W
Dimensions	18-1/2'H x 12-1/2' L x 7' W
Magnetic Force (3/8' plate)	1300 lbs.
Arbore Bore	3/4' Weldon

More Info

• Catalog Page: HB 4400 (PDF)

• Hydraulic Impact Wrenches Schematics (PDF)

• Schematics: HB 4400 (PDF)

• Operating Manual: HB 4400 (PDF)

Using the HB 4400 portable hydraulic magnetic drill is easy. First, make sure it's properly connected to the hydraulic supply with the right flow and pressure. Place the magnetic base firmly on the metal surface you want to drill. Turn on the drill and adjust the speed according to your needs. The drill can handle structural steel and other metals well. When using it, keep in mind that it has an automatic lubrication system, so you don't have to worry about manual lubrication. As for maintenance, regularly check the hydraulic supply for any leaks or blockages. Also, clean the drill after each use to keep it in good condition. Make sure to store it in a dry place. Refer to the operating manual for more detailed instructions and safety guidelines.
