At Powermatic, we know that ambition fuels progress. Every product we design aims to empower woodworkers to achieve more. Craftsmen worldwide are constantly pushing their creative boundaries, challenging us to provide top - notch tools. When we redesigned our bandsaw line, we aimed not just to meet but exceed their expectations. Larger projects need more power, resaw capacity, and cast iron, and this bandsaw delivers. For over ninety years, Powermatic has been known for quality, precision, and attention to detail, helping woodworkers expand their horizons.

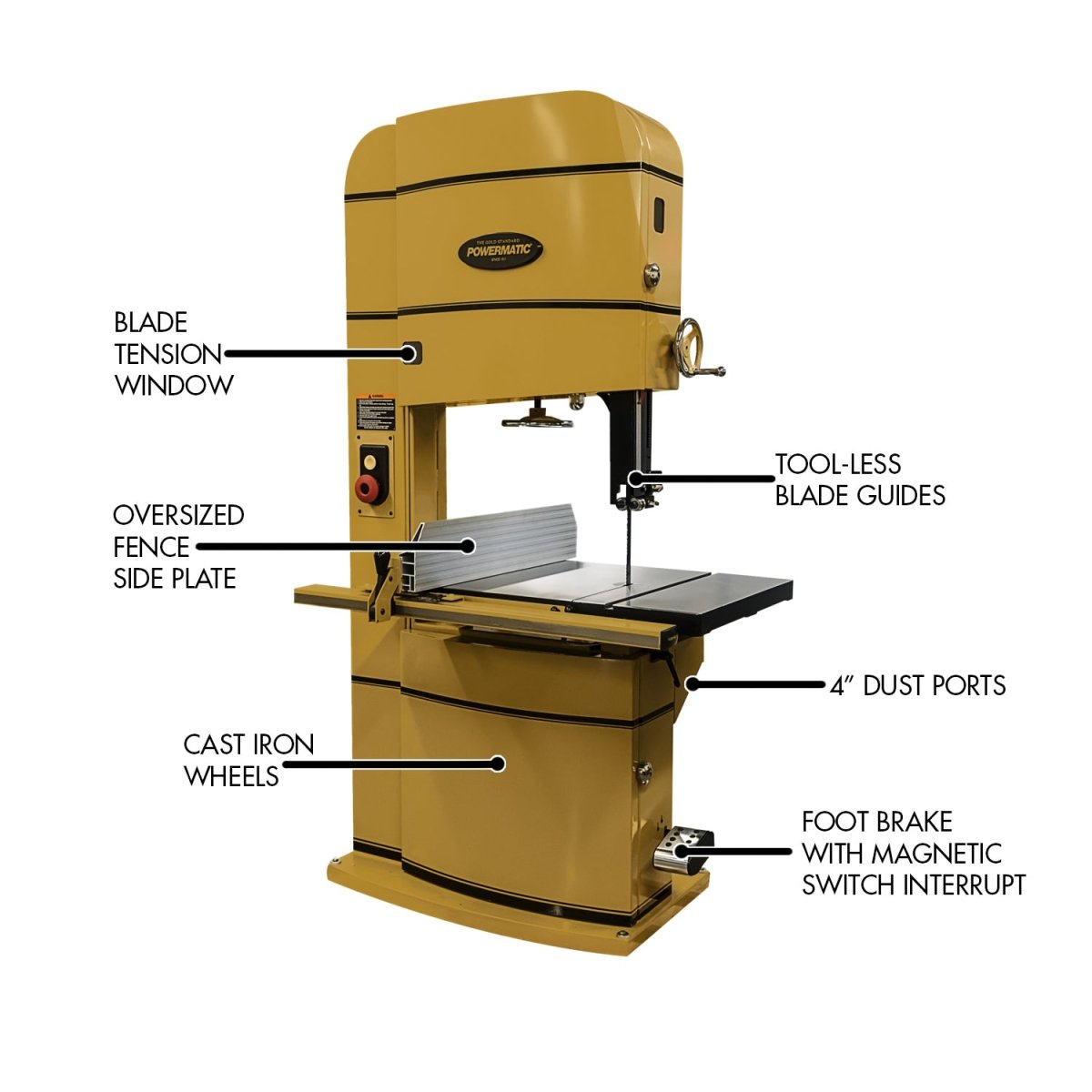

### Features
- The blade tension release with electrical interlock keeps the bandsaw from starting when the blade is detensioned, enhancing safety.
- The exclusive Powermatic T - square style Accu - Fence® boosts accuracy and safety.
- A heavy - duty upper wheel support and tracking mechanism ensure smooth operation.
- High - end blade guides with tool - less adjustment provide stability and improve cut accuracy.
- The oversized side plate can be used horizontally or vertically for added versatility.
- Solid cast iron upper and lower wheels generate the momentum needed for heavy resawing.
- The spacious, heavy - duty cast iron table offers more room in front of the blade.
- The sturdy cast iron table and trunnion assembly provide maximum rigidity for large workpieces.
- The Accu - Fence can be fully adjusted to align with the blade and square to the table.
### Specifications
| Specification | Details |
| ---- | ---- |
| Stock Number | 1791259B |
| Blade Length (In.) | 183 |
| Blade Speed (SFPM) | 2500/4800 |
| Cutting Capacity Height (In.) | 15 |
| Cutting Capacity Width (In.) | 24.0000 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Minimum Saw Blade Width (In.) | 1/4 |
| Motor Phase | 1 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 30 |
| Style (Type) | Floor |
| Table Height from Floor (In.) | 35 |
| Table T - Slot (In.) | 3/4 |
| Table Tilt (Deg.) | 45 Right / 10 Left |
Using your Powermatic PM2415B bandsaw is easy. First, make sure your workspace is well - lit and free of clutter. Check that the blade is properly tensioned and aligned before starting the machine. Always wear safety goggles and appropriate clothing. To start, plug the bandsaw into a 230V, 30 - amp circuit as recommended. Use the Accu - Fence to guide your workpiece for accurate cuts. You can adjust the fence to align with the blade and square to the table.
When cutting, feed the workpiece slowly and steadily. For larger workpieces, make sure the cast iron table and trunnion assembly support it well. If you need to change the blade speed, refer to the user manual for the correct settings.
Here are some important safety notes. Never start the bandsaw when the blade is detensioned, thanks to the electrical interlock feature. Keep your hands away from the blade at all times. If you're not using the bandsaw, turn it off and unplug it.
For maintenance, clean the bandsaw regularly to prevent dust buildup. Check the blade guides for wear and adjust them without tools as needed. Lubricate moving parts according to the manufacturer's instructions. Inspect the cast iron wheels for any signs of damage or wear. With proper use and maintenance, your Powermatic bandsaw will serve you well for years.
